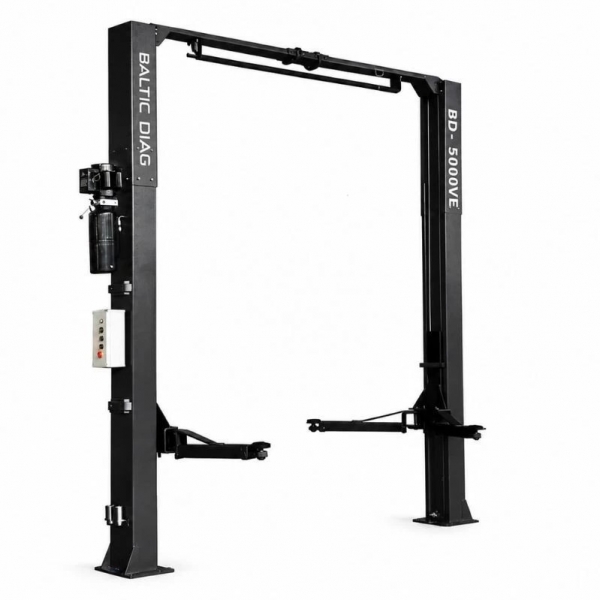

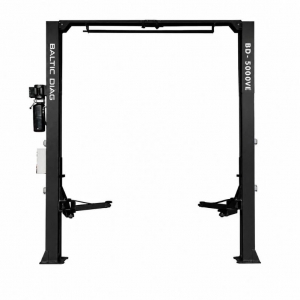

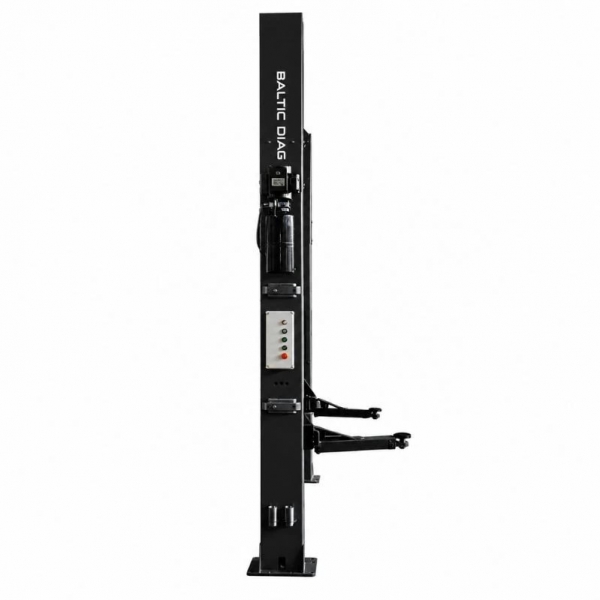

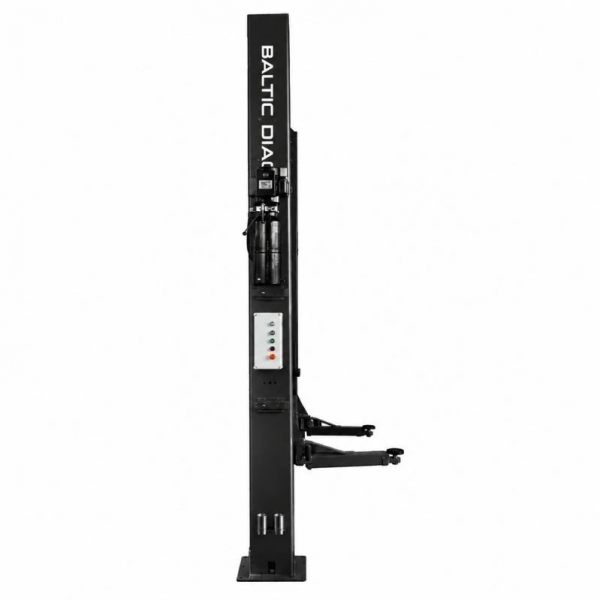

Two-post lift for minibuses with electromagnets, 5,000 kg, BD-5000VE

Two-post lift for minibuses with electromagnets, 5,000 kg, BD-5000VE

Country of origin: China; warranty period: 24 months

The BD-5000VE two-post lift is designed for lifting minibuses, light commercial vehicles, and other heavier vehicles in auto service centers and repair shops. With a lifting capacity of 5,000 kg, a sturdy construction, electromagnetic locks, and top-mounted synchronization, it allows for safe, stable, and convenient repair work on the chassis, brakes, suspension, transmission, and other components. This is a practical solution for service centers that need a reliable lift for working on larger vehicles.

Technical Specifications:

• Lift type: two-post lift

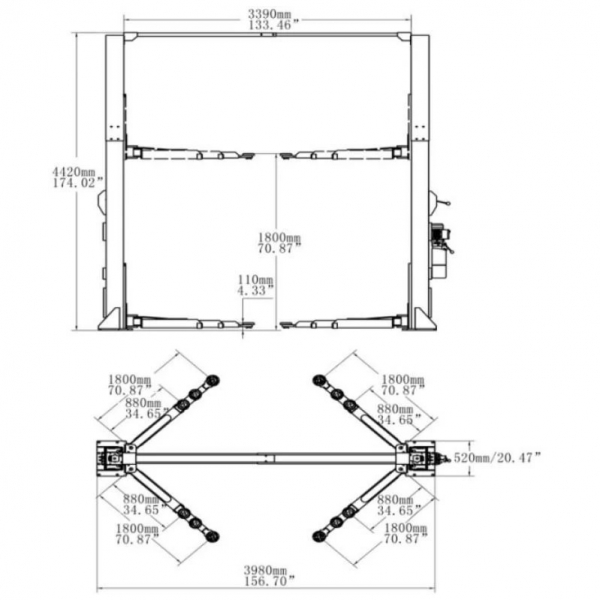

• Maximum vehicle width: 3050 mm
• Minimum tire height: 110 mm

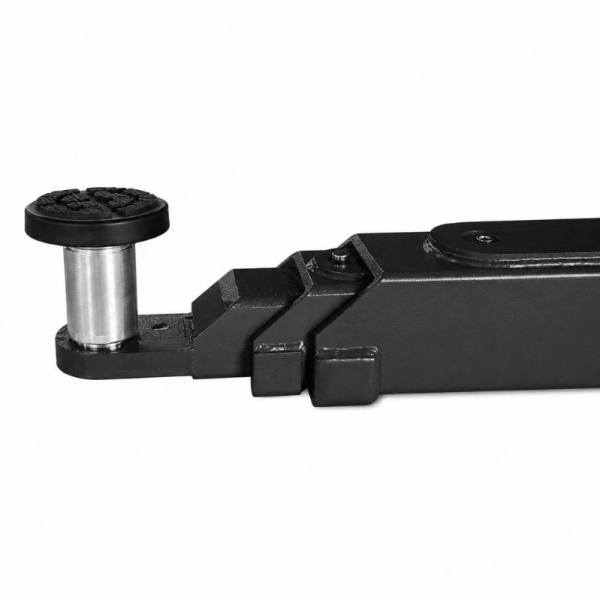

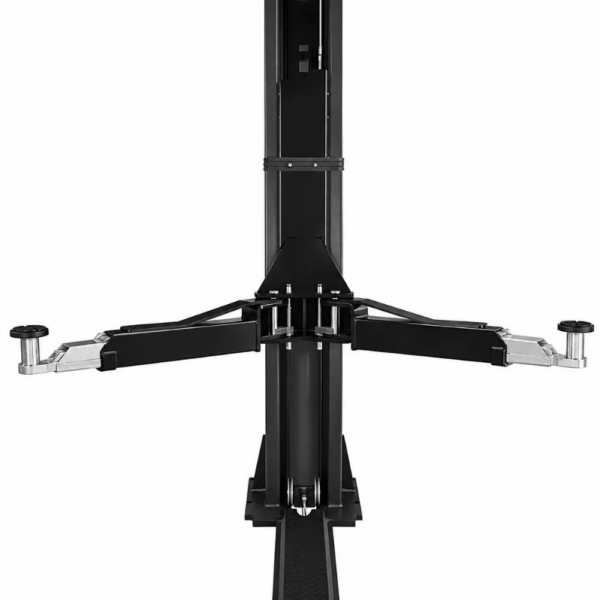

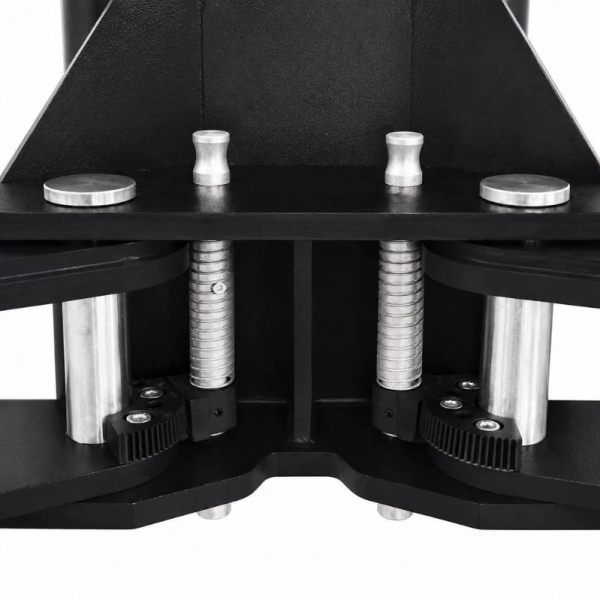

• Length of 3-stage arms: 880–1,800 mm
• Lift weight: 916 kg
• Motor power: 3 kW
• Power supply: 380 V / 50 Hz / 3-phase
• Noise level: <80 dB(A)
• Color code: RAL7021

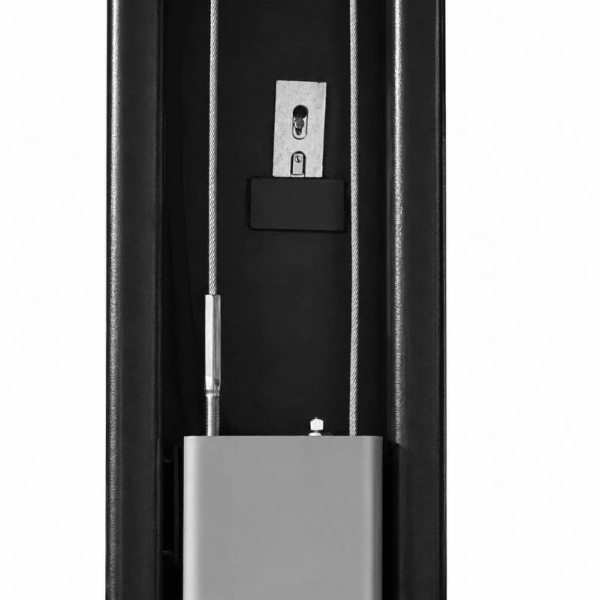

• Clamps: electromagnetic

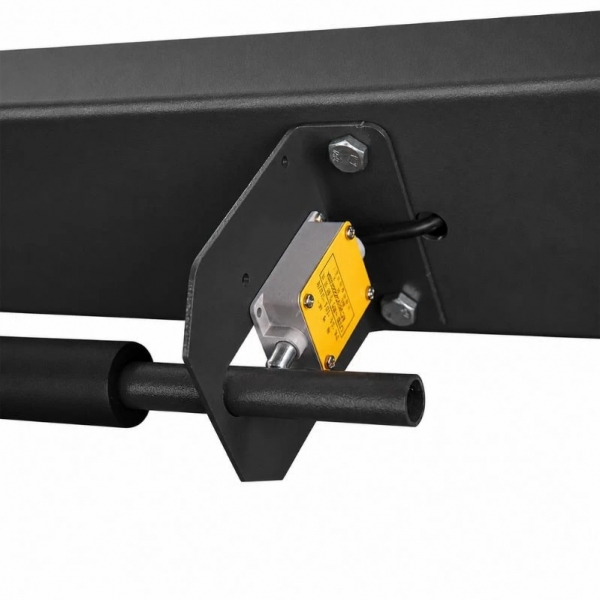

• Synchronization: top-mounted
• Hydraulic cylinders: compliant with ANSI standards
• Sliders: UHMW polyethylene
• Bushings: brass
• Certification: CE

The BD-5000VE two-post lift is the ideal choice for service shops that need a sturdy and safe solution for working on minivans and commercial vehicles. Electromagnetic locks, top synchronization, a reinforced structure, and long, adjustable arms help ensure convenient, stable, and efficient vehicle servicing during daily repair work.
