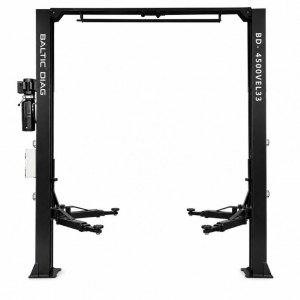

Two-post lift with electromagnetic locking and 3+3-stage arms, 4.5 t, BD-4500VEL33

Two-post lift with electromagnetic locking and 3+3-stage arms, 4.5 t, BD-4500VEL33

Country of origin: China, warranty period – 24 months

The BD-4500VEL33 is a strong and reliable two-post lift designed for lifting light and commercial vehicles up to 4.5 tons. This model features overhead synchronization, eliminating any floor obstructions between columns and allowing free movement and better access. Its electromagnetic locking mechanism, dependable hydraulic system, and three-stage lifting arms ensure safe, precise, and efficient operation. The lift is ideal for high-traffic workshops where quick access to the underside, chassis, or other components of the vehicle is essential.

Features:

• Overhead synchronization – clear floor design with open access between columns
• 3 + 3 stage arms – suitable for both symmetrical and asymmetrical lifting

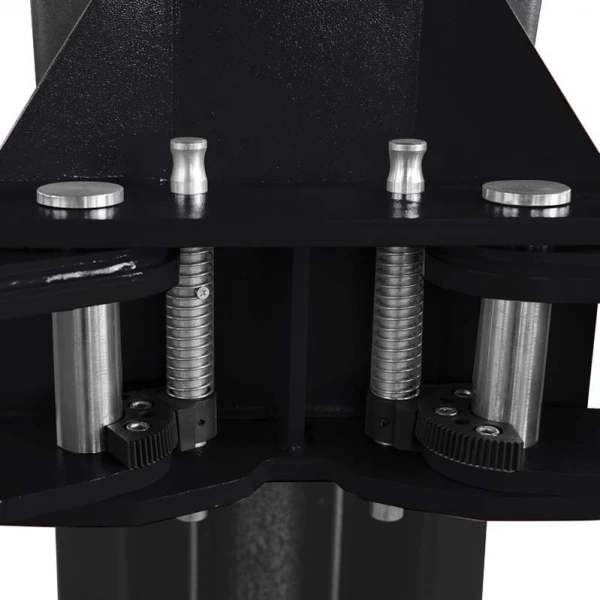

• Electromagnetic arm locking – automated and safe locking system
• Compact and reliable design – reduced wear and lower risk of failure
• Hydraulic cylinders designed according to ANSI standards
• Self-lubricating UHMW polyethylene sliders and brass bushings – reduced maintenance and longer service life
• Two-point manual unlocking mechanism with dual safety system
• Reinforced arm carriage and columns made from thicker steel

Technical Specifications:

• Lifting capacity: 4500 kg
• Lifting time: 60–65 seconds
• Lifting height: 1900 mm
• Minimum pad height: 100 mm
• Arm length (3-stage): 750–1500 mm
• Overall lift width: 3390 mm
• Distance between columns: 2900 mm
• Overall height: 4300 mm
• Column steel thickness: 5.75 mm
• Lift weight: 670 kg
• Electric motor: 2.2 kW
• Power supply: 400 V / 50 Hz / 3-phase
• Hydraulic pressure: 21 MPa
• Noise level:
• Color: RAL7021
• CE certified – complies with European safety standards
