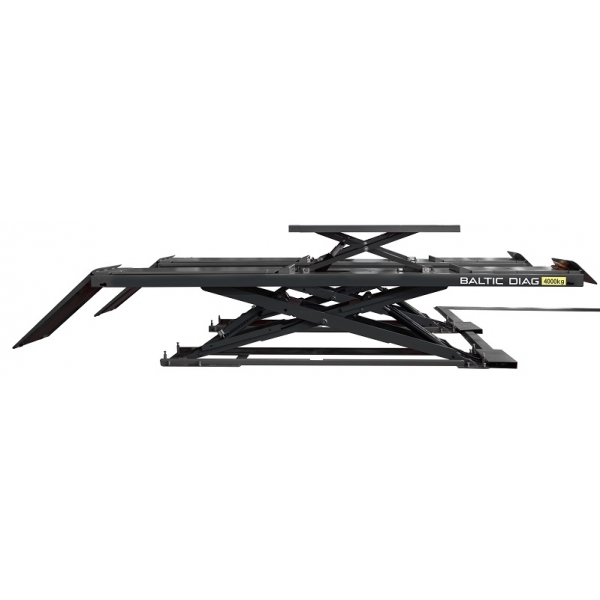

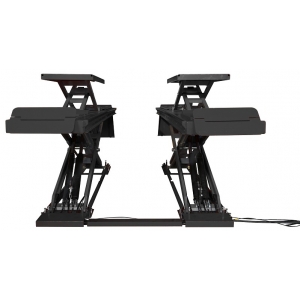

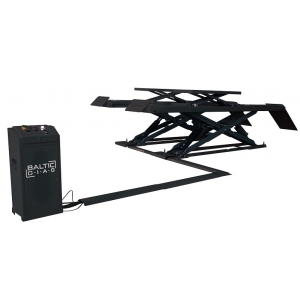

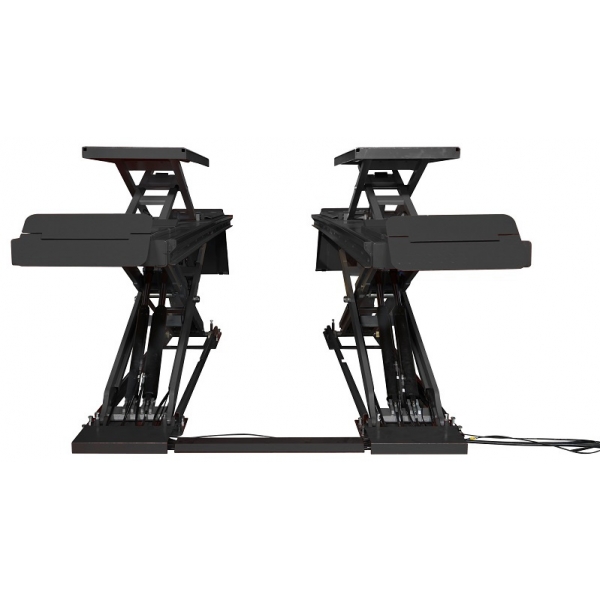

Ultra-low profile scissor lift with integrated secondary lift BD640WAF

Ultra-Low Profile Scissor Lift with Integrated Secondary Lift BD640WAF

Country of origin: China, warranty period – 24 months

The BD640WAF scissor lift with an integrated secondary lift is an advanced and reliable piece of equipment designed for professional vehicle lifting and servicing in auto repair shops and service centers. This ultra-low-profile model is ideal for working with low-clearance vehicles and offers a wide range of applications. The integrated secondary lift allows for undercarriage maintenance and repair work by fully offloading the suspension system. Floor-mounted installation ensures flexibility without the need to cut or modify the flooring.

Features:

• Reliable scissor-type construction for enhanced stability and safety
• Integrated secondary lift for a broader range of repair applications
• Ergonomic, simple, and safe operation
• Suitable for various types of vehicles, including low-profile cars
• Surface-mounted installation – no floor recess required

Technical specifications:

• Lifting capacity: 4000 kg
• Secondary lift capacity: 4000 kg
• Operating principle: electro-hydraulic
• Maximum lifting height: 1850 mm
• Secondary lift height: 400 mm
• Minimum lift height: 160 mm
• Main platform length: 4500 mm
• Secondary lift platform length: 1650–2000 mm
• Main platform width: 680 mm
• Secondary lift platform width: 600 mm
• Clearance between platforms: 900 mm
• Lifting time: ~50 seconds
• Lowering time: ~60 seconds
• Electric motor power: 2.2 kW
• Power supply: 400 V or 230 V / 50 Hz
• Weight: 2500 kg
• Dimensions: 5484 x 2260 mm (length x width)
