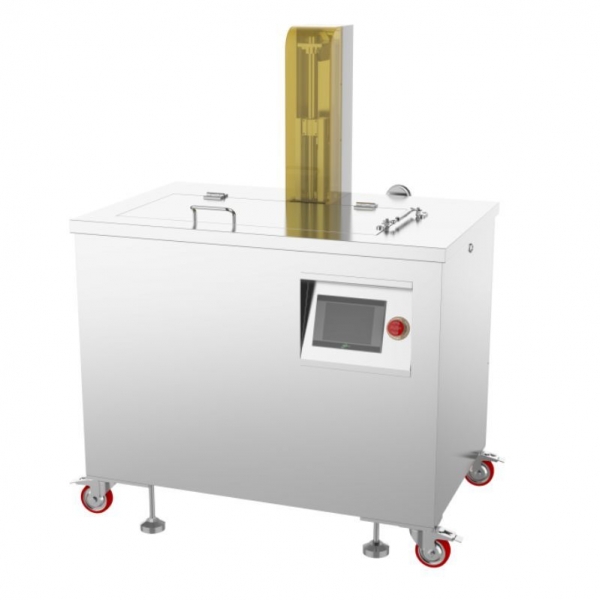

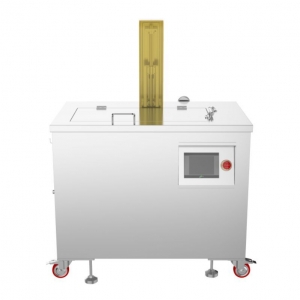

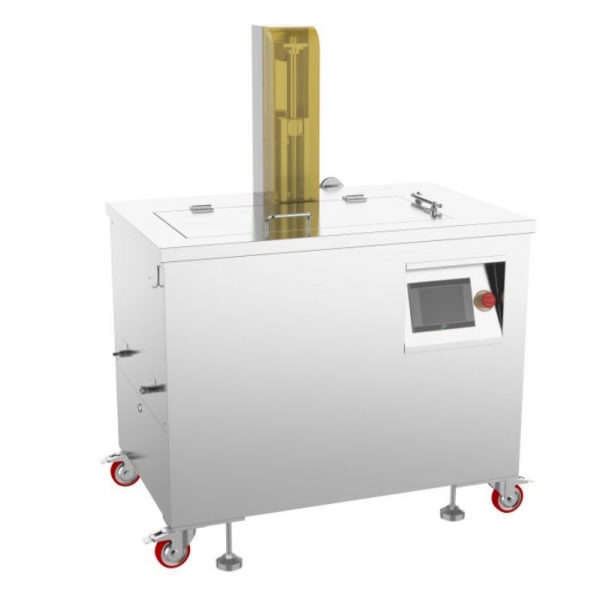

Ultrasonic cleaning tank SONIXTEC AL-400, 400 L, with lifting platform and filtration system

Ultrasonic cleaning tank SONIXTEC AL-400, 400 L, with lifting platform and filtration system

Country of origin: Belgium, warranty period - 24 months

The industrial ultrasonic cleaning tank AL-400 from the SONIXTEC AL series is designed for professional and intensive use where deep, thorough, and surface-safe cleaning is required. The unit features an innovative pneumatically operated lifting platform with an agitation function, allowing for convenient loading and unloading of cleaned objects, thus increasing cleaning efficiency. The system is operated via a 7-inch touchscreen and managed by a SIEMENS PLC controller. The tank is built from thick-walled AISI304 stainless steel, equipped with an integrated filtration system with oil separation and advanced ultrasonic functions. AL series tanks are ideal for use in the automotive, marine, engineering, defense, and other industrial sectors.

Functions:

• 7-inch touchscreen
• SIEMENS PLC 8xI 6xO control system
• 8 programmable automatic cleaning cycles
• Thick-walled tank made of stainless steel 304
• External panels made of stainless steel 304
• Submersible transducer boxes made of stainless steel 316L
• Reinforced pneumatic platform with agitation function up to 2000 kg
• Laminar flow system and oil separation filtration system
• Adjustable heating from 30 °C to 100 °C
• Digital generator for more efficient cleaning
• Sweep, Degas, Pulse, and Dynamic functions
• Compressed air gun
• Insulated lid with diamond-shaped drip collection system (optional automatic lid)
• Sloped tank bottom for easy cleaning
• Lockable multifunctional castor wheels and vibration-dampening rubber feet
• 1" water inlet with ball valve and 1" drain connection
• Adjustable leveling feet
• Emergency stop switch and main power switch

Benefits:

• Time saving – ultrasonic cleaners can remove contaminants faster and more efficiently than traditional methods
• Contaminant removal – effectively eliminates a wide variety of contaminants from different materials and surfaces
• Complex microscopic cleaning – high-frequency waves reach even the smallest crevices, ensuring complete cleanliness
• Gentle cleaning – safe for delicate components, as cleaning is done without friction or abrasion
• Low power consumption – efficient use of electrical energy and transducers minimizes power usage
• Environmentally friendly – reduces or eliminates the use of hazardous solvents and lowers overall energy consumption

Technical specifications:

• Model: AL-400
• Capacity: 400 liters
• Tank dimensions: 110 x 61.5 x 69 cm
• Useful tank dimensions: 102 x 52 x 42 cm
• External dimensions: 172 x 100 x 190 cm
• Maximum lifting capacity: 200 kg
• Power supply: 3-phase, 240V / 400V
• Heating power: 9000 W
• Ultrasonic power: 5760 W
• Working frequency: 28 kHz or 40 kHz
• Number of ultrasonic transducers: 96
• Tank material: stainless steel AISI304, 2 mm
• Weight: 455 kg

Applications:

• General workshops
• Diesel injector workshops
• Grinding workshops
• Turbocharger repair workshops
• Engine repair and rebuilding
• Gearbox repair workshops
• Marine industry
• Heavy machinery service
