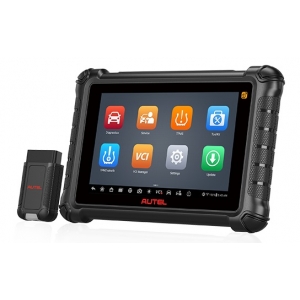

Universal diagnostic tool Autel MaxiDAS DS900TS

Universal diagnostic tool AUTEL MaxiDAS DS900TS

AUTEL MaxiDAS DS900TS is an intelligent universal diagnostic tool with advanced TPMS functions, allowing efficient servicing of tire pressure sensors. By combining full-system diagnostics with TPMS solutions, it becomes a reliable tool for any workshop looking for flexibility, speed and functionality in one compact solution.

Manufacturer: AUTEL. Warranty period – 24 months.

Why choose AUTEL MaxiDAS DS900TS?

• Wireless vehicle connectivity.
• The included MaxiVCI V150 adapter provides wireless connection to the vehicle – more convenience without additional cables.
• OE-level diagnostic precision.
• The device scans faults in all systems, allows active tests, real-time parameter monitoring and ECU data access – all in one device.
• Advanced TPMS sensor management.
• Quickly scan, diagnose and program TPMS sensors safely and without additional equipment.
• Smart AutoVIN technology.
• Automatic vehicle identification based on the VIN saves time and reduces the risk of manual entry errors.
• Wi-Fi updates and remote support.
• The device is continuously supported with online software updates and remote technical assistance when needed.
• Convenient data management.
• One workspace for diagnostics, customer history and results – all information clearly organized in one place.

Features:

• Wide vehicle coverage, including European, US and Asian manufacturers.
• MaxiVCI V150 wireless adapter.
• OE-level diagnostics for all electronic systems.
• Ability to read various fault codes, view live data, access engine control unit (ECU) information, perform active tests, adaptations and other functions.
• Supports DoIP and CAN FD protocols.
• Smart AutoVIN technology for easy and fast vehicle identification.
• Automatic system and software updates via internet connection.
• Fast remote assistance for technical questions.
• Advanced TPMS tire pressure sensor diagnostics with DTC fault descriptions.
• One-touch TPMS sensor health check.
• Ability to program AUTEL MX sensors.
• Extensive OBD function coverage.
• Unified workspace for managing diagnostic data, customer information and device settings.
• Support for pre-scan and post-scan diagnostic reports.

Technical specifications:

• Operating system: Android 11;
• Processor: 1.8 GHz quad-core;
• RAM: 4 GB;
• Internal storage: 64 GB ROM;
• Display: 8" LCD touchscreen with 1280 × 800 resolution;
• Camera: rear-facing 8 MP camera;
• Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card with support up to 64 GB;
• Audio output: speaker;
• Battery: 3.7 V / 7700 mAh Li-ion battery;
• Charger: 5 V / 3 A / DC;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -10 °C to +60 °C;
• Dimensions: 168.9 × 259.8 × 33.6 mm;
• Weight: 925 g;
• Supported protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD;
• VCI adapter communication: Bluetooth BR + EDR;
• VCI wireless frequency: 2.4 GHz;
• VCI input voltage: 8–30 V DC;
• VCI power consumption: 150 mA @ 12 V DC;
• VCI operating temperature: 0 °C to +50 °C;
• VCI storage temperature: -10 °C to +60 °C;
• VCI dimensions: 77.47 × 46.8 × 21.38 mm;
• VCI weight: 51.5 g.

Who is this device for?

• AUTEL MaxiDAS DS900TS is designed for professional automotive workshops, diagnostic technicians and maintenance specialists who need a universal diagnostic system with TPMS functionality. It is a solution for those who want to combine full-system vehicle analysis with tire pressure management in one convenient device.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Ready to work faster, more accurately and with TPMS capabilities?

• Try AUTEL MaxiDAS DS900TS – a diagnostic tool that combines everything a modern workshop needs. Contact us – we will help you find the most suitable solution for your work.
