Universal hydraulic suspension and steering play detector Unimetal SZ-16, up to 18 t

Universal hydraulic suspension and steering play detector Unimetal SZ-16, up to 18 t

Country of origin: Poland, warranty period – 24 months

The UNIMETAL SZ-16 is a universal hydraulic suspension testing stand designed for heavy-duty vehicles with an axle load capacity of up to 18 tons. The device generates forced wheel movements, enabling efficient assessment of the technical condition of suspension, support, and steering system components such as joints, bolts, and bearings. Thanks to synchronized longitudinal and transverse platform movements, the testing process becomes comprehensive and accurate. The device is equipped with galvanized, ribbed surface plates that ensure durability and excellent tire grip. The stand is operated via a wired LED control panel with bright lighting, and its intuitive controls provide smooth and user-friendly operation. The set includes special foundation frames for safe in-ground installation of the device.

Features:

• Suitable for vehicles with an axle load of up to 18 tons
• Generates forced wheel movements – enabling assessment through noise and vibration
• Synchronized platform movements – longitudinal and transverse
• Galvanized, ribbed plates – ensure durability and tire traction
• LED control panel with bright light – for convenient operation
• Intuitive controls – for fast and easy use
• Includes foundation frames for secure installation
• Device complies with EU Directive 2014/45

Technical Specifications:

• Maximum axle load: 18 tons
• Platform movement: synchronized
• Movement amplitude: 100 mm
• Dimensions: 1000 × 870 × 220 mm
• Power: 1.5 kW (hydraulic system)
• Power supply: 400 V ~ 3-phase
• Movement plates: galvanized and ribbed – for durability and safety
• Device manufactured in compliance with EU Directive 2014/45

Included Equipment:

• Hydraulic suspension testing stand
• Brake pedal locking device
• Wired LED control panel with flashlight and control cabinet
• Foundation frames for in-ground installation

Optional Equipment:

• Wireless LED control panel with flashlight and control cabinet
• Wi-Fi control module (Android application)
• Frame structure for in-ground installation (SZ-16 model)

Installation and servicing:

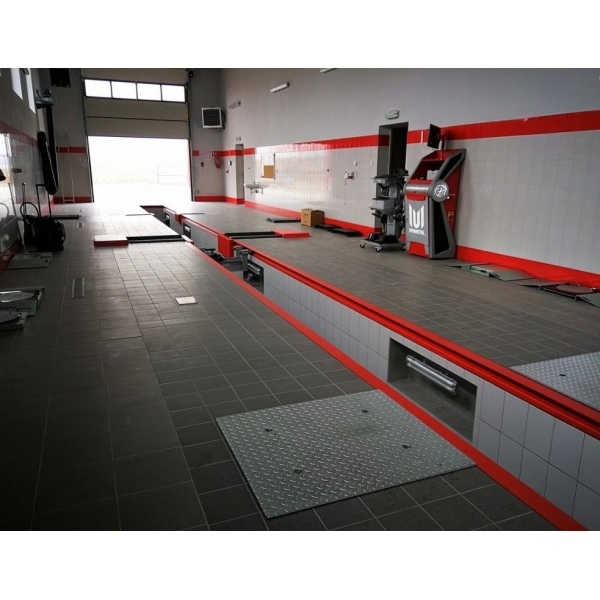

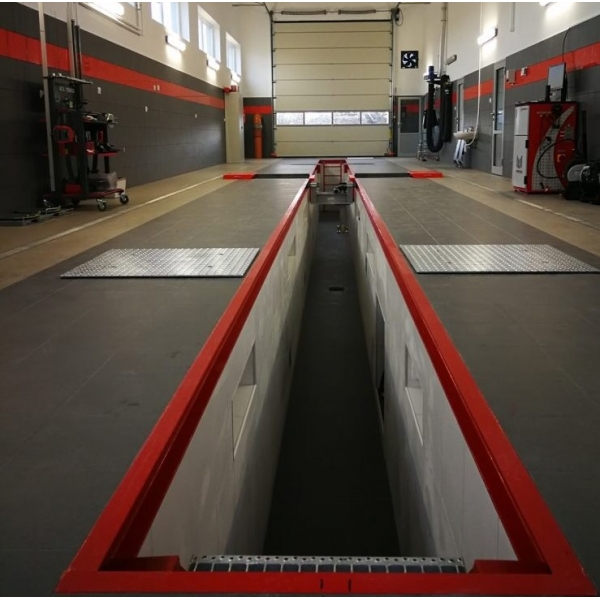

• Can be installed in an existing inspection pit
• Foundation frames for safe and precise positioning
• Installation adapted to existing inspection pit

Other similar hydraulic suspension testers for trucks:

• SZ-16F – advantages: synchronized and independent movement of plates, 3 directions
• SZ-16A – advantages: synchronized and independent movement of plates in 3 directions, plates feature automatic centering
