Universal truck diagnostic equipment with wireless VCI Autel MaxiSYS MS909CV

Universal Truck Diagnostic Equipment with Wireless VCI Autel MaxiSYS MS909CV

Country of origin: China, warranty period – 24 months

This is advanced diagnostic equipment for trucks and commercial vehicles, offering professional functions and a comprehensive set of accessories.

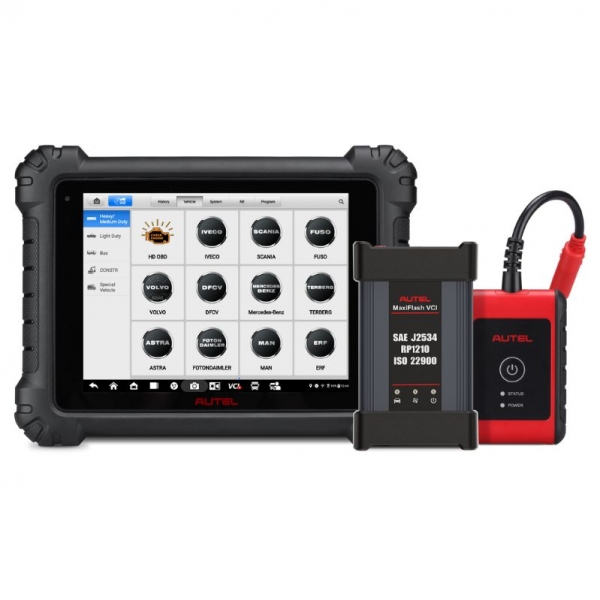

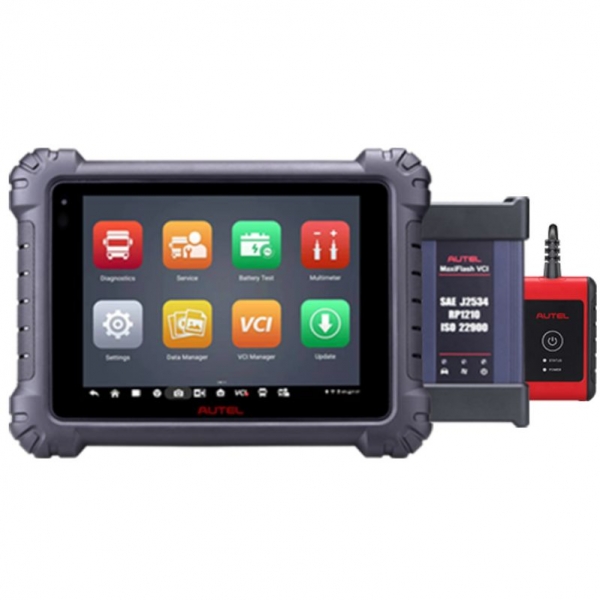

Autel MaxiSYS MS909CV is a diagnostic tool specifically designed for heavy-duty commercial vehicle diagnostics. It stands out with a powerful octa-core processor, a 9.7-inch touchscreen, Android 10 operating system, and an extensive vehicle database (80+ manufacturers). The included next-generation MaxiFlash VCI module allows wireless operation, while the integrated ADAS calibration system supports both static and dynamic calibration for Class 3–8 vehicles.

Why choose Autel MaxiSYS MS909CV?

• Specifically developed for commercial vehicle diagnostics – supports 80+ manufacturers, from light to heavy-duty vehicles
• ADAS calibration function – advanced driver assistance systems calibration for Class 3–5 (static) and Class 6–8 (dynamic) vehicles

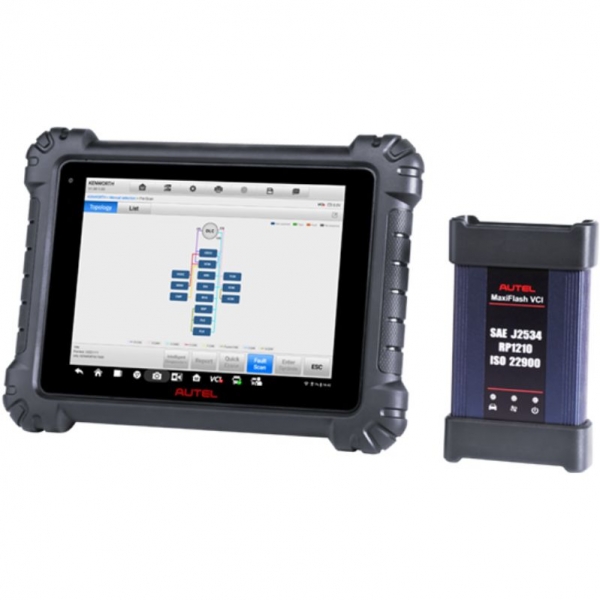

• Module topology – clear system mapping to quickly locate faults

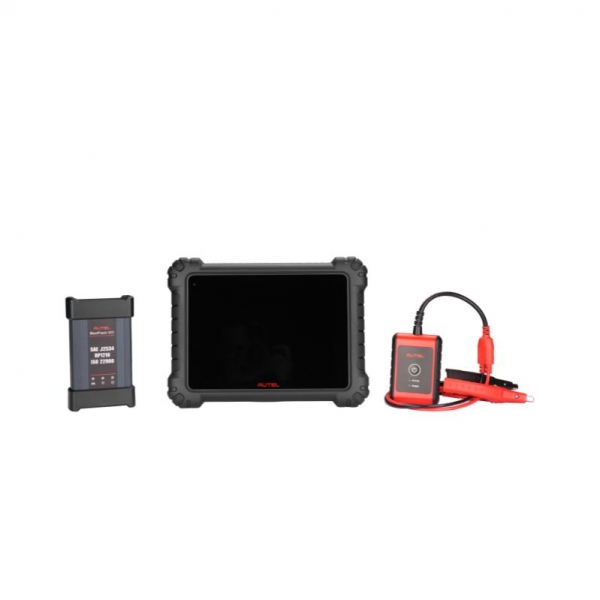

• MaxiBAS B200 system – allows testing of battery, starter, and charging systems
• Includes ammeter, multimeter, clamps, and cables – everything needed for immediate use
• Wireless VCI with J2534 PassThru – for fast and secure vehicle connection
• Extremely user-friendly – fast interface, responsive touchscreen, intuitive menu, and quick performance

Functions:

• Upgraded 8-core processor, 128 GB storage, Android 10.0 operating system with a 9.7-inch touchscreen and brand-new MaxiFlash VCI ensures smooth operation
• Advanced diagnostics with module topology for certain vehicle models and improved AutoSCAN / VINScan function
• ADAS calibration with new dynamic calibration for Class 6–8 vehicles, full support for Class 3–5 ADAS systems
• Truck battery testing and health report support

Technical specifications:

• Operating system: Android 10
• Processor: Qualcomm 660 octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53)
• Memory: 4 GB RAM and 128 GB internal storage
• Display: 9.7-inch TFT-LCD with 1536 x 2048 resolution and capacitive touchscreen
• Connectivity: Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO), Bluetooth V5.0 + BR/EDR, GPS, USB 2.0 (2 USB TYPE-A ports and one Mini USB port), HDMI 2.0, SD card slot (supports up to 256 GB)
• Camera:
• Rear: 16 MP, autofocus with flash
• Front: 16 MP
• Sensors: Gravity accelerometer, ambient light sensor (ALS)
• Audio input/output: Microphone, dual speakers, 3-band 3.5 mm stereo/standard headphone jack
• Power and battery: 15000 mAh 3.8 V lithium-polymer battery; Charging via 12V AC/DC power supply at 0 °C to 45 °C
• Input voltage: 12V/1.3A adapter
• Operating temperature: 0 to 50 °C
• Storage temperature: -20 to 60 °C
• Dimensions (W x H x D): 304.4 mm x 227.8 mm x 42.5 mm
• Weight: 1.66 kg
• Supported protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 single CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

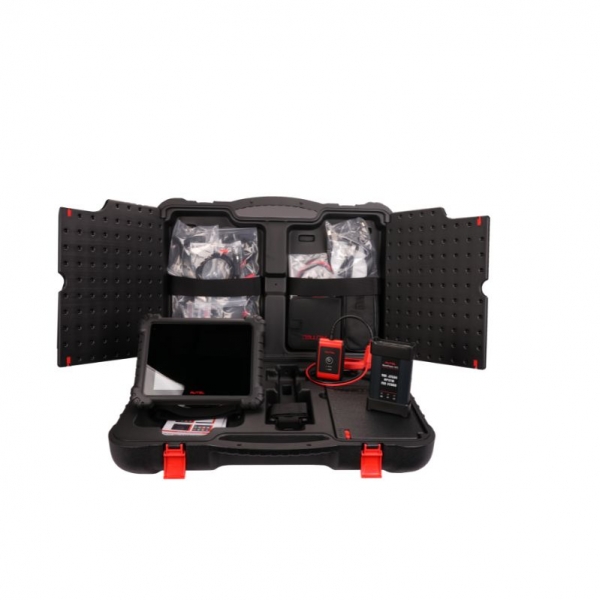

Accessories:

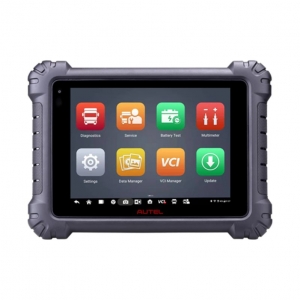

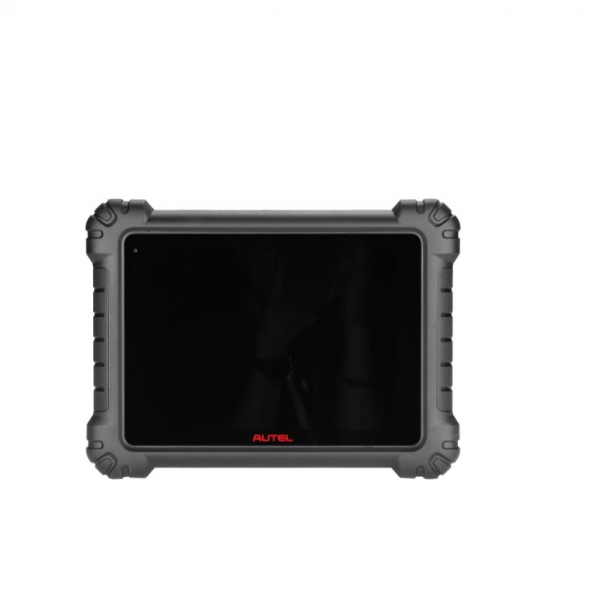

• Main unit

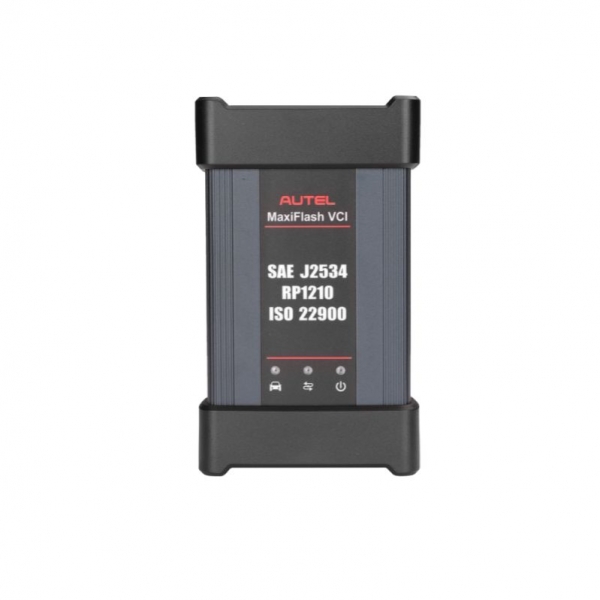

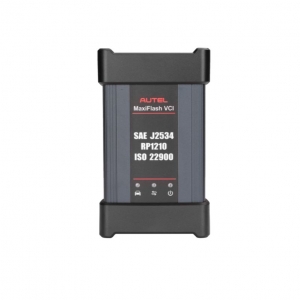

• Wireless communication module with J2534 PassThru
• 12V power adapter

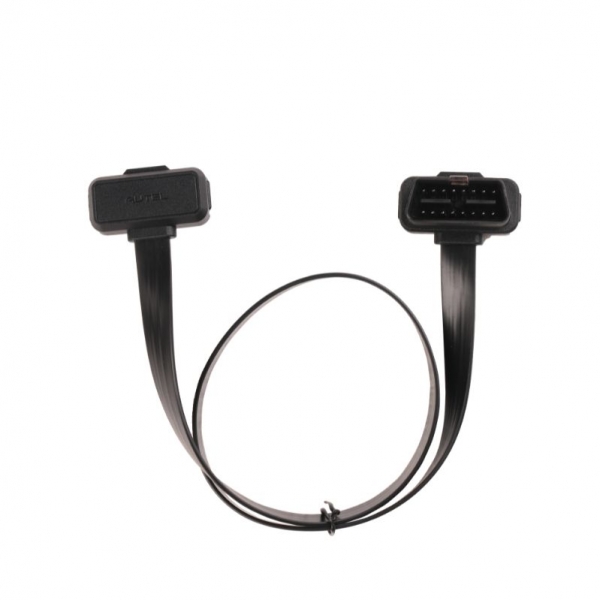

• Main cable
• USB cable
• USB Type-C cable

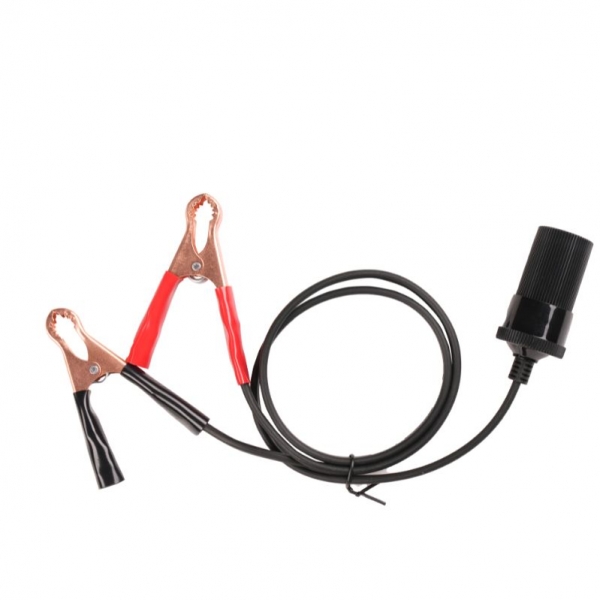

• Clamp cable
• Cable for car cigarette lighter socket connection
• Protective fuse 6x30 mm (2 pcs)
• Deutsch-9 adapter
• Deutsch-6 adapter

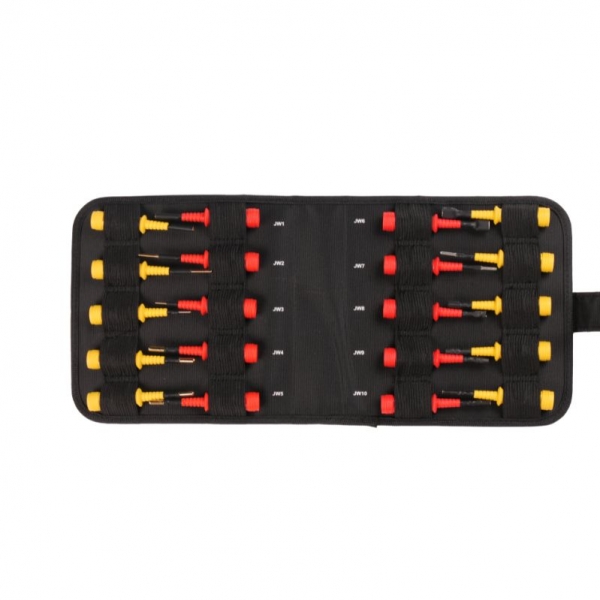

• JW1–JW10 converters (2 pcs of each type)
• UNI-4 cable

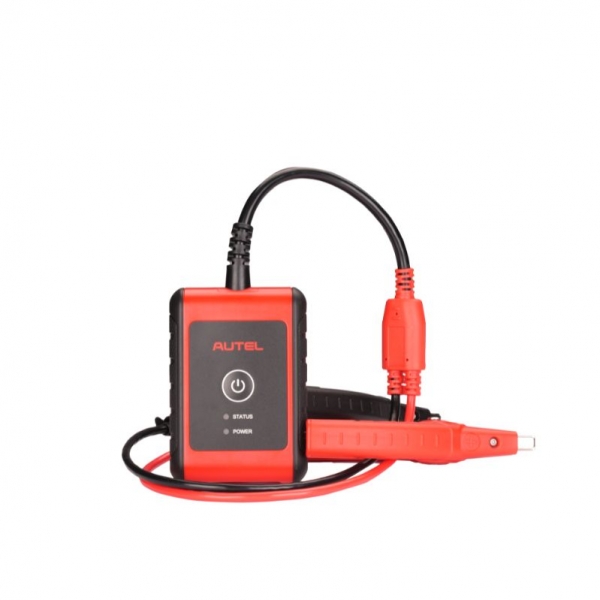

• Battery and charging system tester
• 400A current clamp

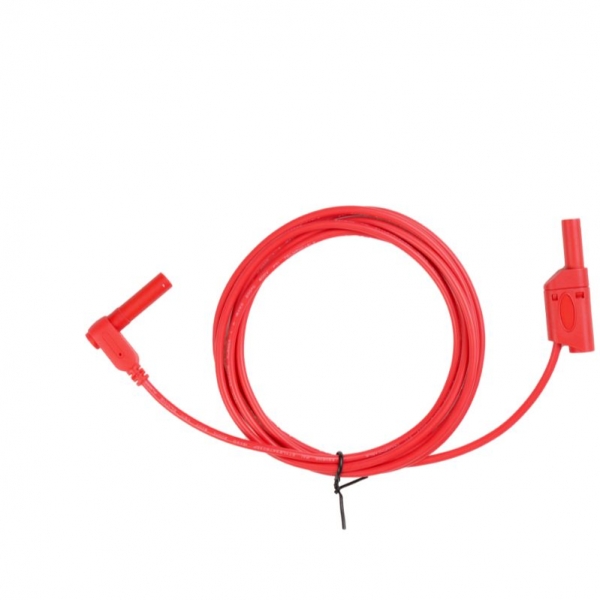

• Multimeter leads (2 pcs)
• Crocodile-type clamps (2 pcs)
• Multimeter probe set (2 pcs)
• Digital multimeter
• Quick reference guide
• Package content list
• Cleaning cloth
• Inner case
• Transport case (687 x 170 x 471 mm)

Who is this device for?

• Autel MS909CV is ideal for auto repair shops, truck maintenance centers, independent diagnostic specialists, and service technicians looking for a professional, reliable, and universally adaptable diagnostic tool for commercial vehicles.
