Weber C-2.30 two-column screw lift

Screw-type two-post lift Weber C-2.30

Country of origin: Germany, warranty period – 24 months

Professional screw-type two-post lift designed for lifting passenger cars, featuring electric synchronization of two motors for precise and stable lifting. The lift is made of hot-rolled steel profiles, offering high strength and resistance to bending. Due to its low construction height, the lift can be installed in rooms with limited height. Asymmetric arms and 30-degree rotating columns allow convenient opening of car doors.

Features:

• Electric synchronization of two motors
• Hot-rolled steel columns
• Columns rotate 30°
• Very low column height – suitable for installation in low rooms

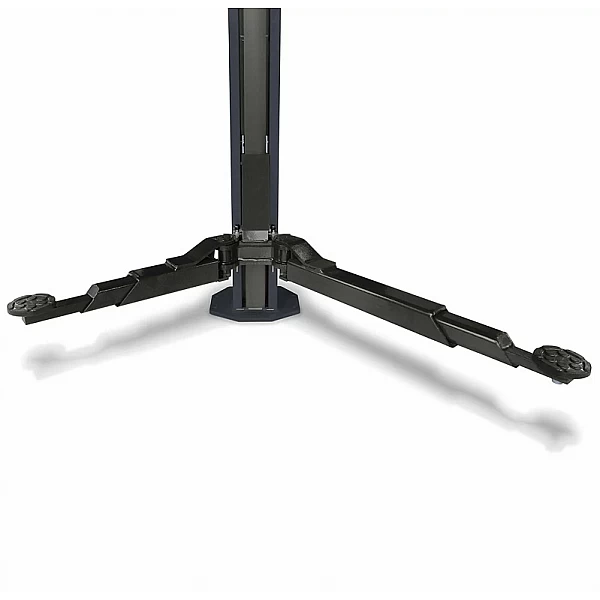

• Asymmetric lifting arms for easier door opening
• Automatic arm lock with manual release
• Rubber protections on arm bases
• Warning signal when approaching foot height

Technical specifications:

• Lifting capacity: 3000 kg
• Maximum lifting height: 2005 mm
• Minimum height: 90 mm
• Column height: 2550 mm
• Distance between columns: 2650 mm
• Drive-through width: 2350 mm
• Overall width: 3315 mm
• Minimum room height: 2800 mm
• Long arm length: 800–1350 mm
• Short arm length: 470–890 mm
• Weight: 500 kg
• Motor power: 2 x 2.5 kW
• Lifting time: 45 s
• Power supply: 400V / 3 ph / 50 Hz
• Column color: gray RAL 7016
• Arm color: blue RAL 9017
