Welding Helmet with Respiratory Protection GYSMATIC 3/9-13G AIR XL

Country of origin: Netherlands, warranty period - 24 months

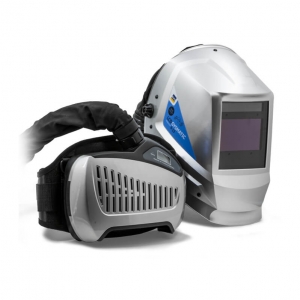

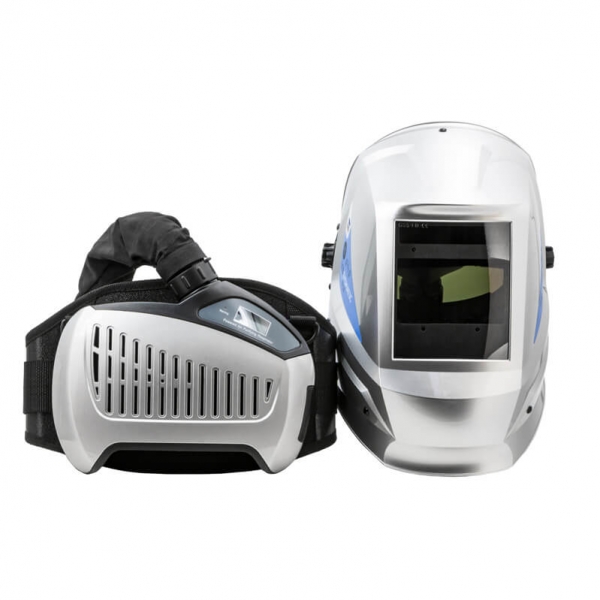

The GYSMATIC 3/9-13G AIR XL is a professional welding helmet with an integrated respiratory protection system and enhanced ventilation. This 2-in-1 system not only protects the eyes from harmful IR/UV radiation, but also filters welding fumes and gases, ensuring maximum operator safety and comfort.

Features:

• 4 adjustable settings: color adjustment from DIN 9 to 13, sensitivity control, delay adjustment, and grinding mode

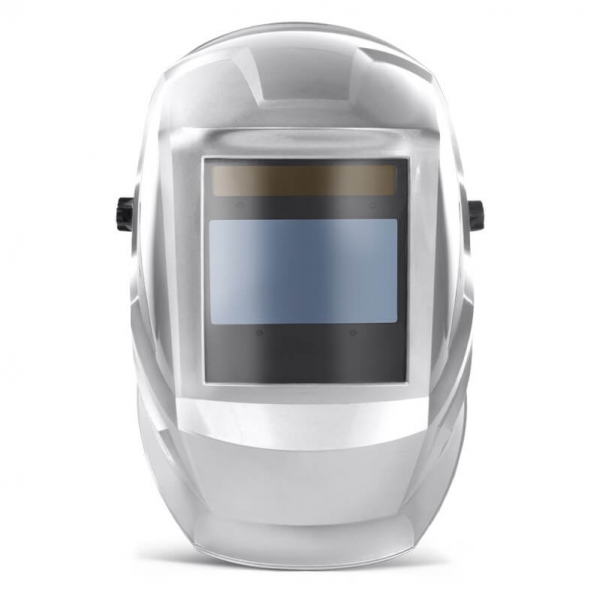

• XL-sized viewing area – ensures optimal visibility
• High sensitivity – 4 arc sensors
• Superior optical class (1/1/1/2, EN379) – guarantees a clear, distortion-free view
• TRUE COLOR technology – better color accuracy compared to traditional filters
• Fast switching time – 0.04 ms for instant eye protection

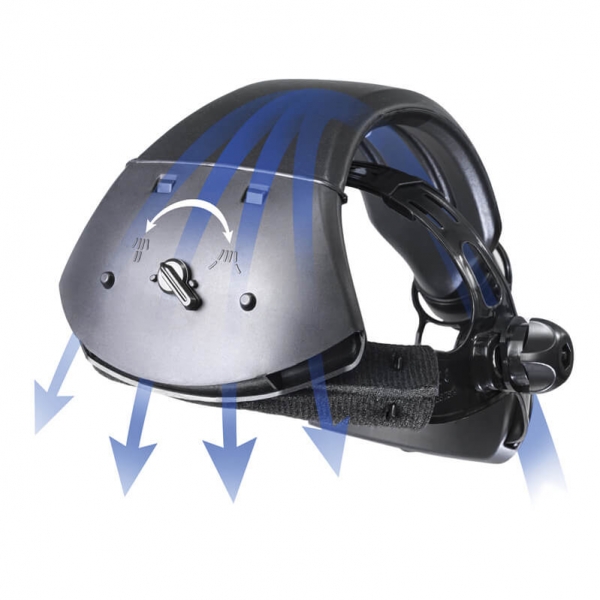

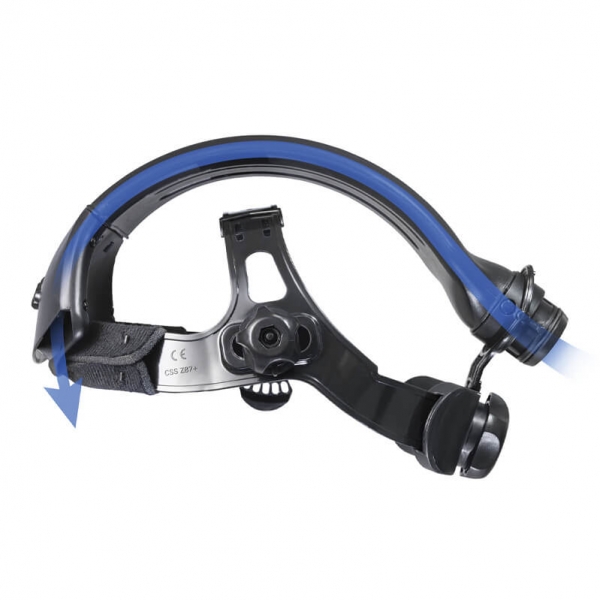

• Integrated respiratory protection system – shields against welding fumes and gases
• Digital battery life and filter saturation indicator
• Three airflow settings: 170 l/min, 200 l/min, and 230 l/min
• Audible and visual alerts – notify about filter clogging or battery discharge
• Up to 8 hours of operation – powered by a rechargeable lithium battery

Technical Specifications:

Helmet Specifications:

• UV/IR protection level: DIN 15
• Optical class: 1/1/1/2
• Dark shade level: DIN 9-13
• Grinding mode: DIN 5-8
• Number of sensors: 4
• Viewing area: 100 × 60 mm
• Switching time: 0.04 ms
• Power supply: Solar cells + 2× CR2450 replaceable lithium batteries
• Weight: 640 g
• Settings: Sensitivity, delay, and grinding mode adjustment
• Respiratory Protection Specifications:
• Filter classification: TH2 PR SL (TH3 optional)
• Airflow rate: 170 l/min, 200 l/min, 230 l/min
• Battery life: Up to 8 hours (depending on selected airflow rate)
• Filtration efficiency: 99.996%
• Charging time: 8 hours
• Waterproof rating: IP 54
• Belt attachment: Waist-mounted, padded for comfort
