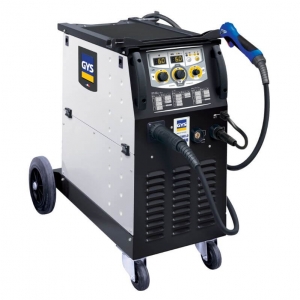

Welding machine MULTIWELD FV 220M, GYS

Welding Machine MULTIWELD FV 220M, GYS

Country of origin: France, warranty period - 24 months

MULTIWELD FV 220M is a single-phase welding machine that combines MIG/MAG, solid wire welding, and MMA welding processes. Thanks to FV (Flexible Voltage) technology, it can operate within a voltage range of 85 V to 265 V, ensuring stable performance even under voltage fluctuations. The intuitive user interface with integrated digital screens allows for easy and precise parameter adjustments. MULTIWELD FV 220M features a powerful 4-roller wire feeding mechanism, ensuring precise welding quality even on aluminum surfaces.

Features:

• Multi-functionality: Suitable for MIG/MAG, MMA, and solid wire welding.
• MIG/MAG welding:
• Steel wire: Ø 0.6–1.0 mm.
• Aluminum wire: Ø 0.8–1.0 mm.
• Gasless wire (self-shielding polarity).
• MMA welding: Basic and rutile electrodes (up to Ø 5 mm).
• Optimized migration and magnetization settings:
• Option to select 2T or 4T trigger mode.

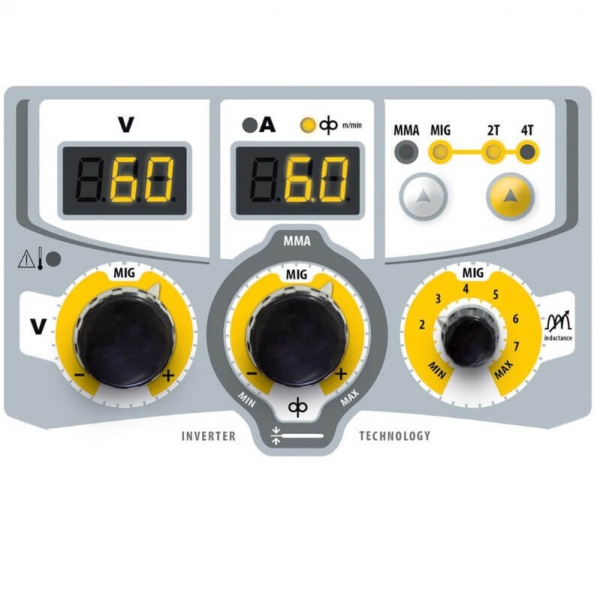

• A welding guide on the machine's body assists in quickly adjusting voltage and wire feed speed.
• Integrated wire feeder:
• Compatible spools: 200 / 300 mm.
• 4-roller wire feed mechanism ensures accurate and consistent wire feeding.
• Quick and convenient wire replacement.
• Preheating for CO₂ gas welding:
• Integrated 36 V – 4.2 A socket for a CO₂ heater (heater not included).
• Compatible with US (Type A) and EURO (C/E/F type) electrical sockets.
• Durability and mobility:
• IP23 rating allows outdoor use.
• Wheels with a locking function ensure stability during transport.
• Overvoltage protection up to 400 V (PROTEC 400).

Technical specifications:

• Voltage: 230 V ~ 50/60 Hz, 110 V ~ 50/60 Hz.
• Current range:
• MMA: 30–220 A (230 V), 30–140 A (110 V).
• MIG/MAG: 30–220 A (230 V), 30–140 A (110 V).
• Maximum wire thickness:
• With gas (GAS): 0.6–1.2 mm.
• Gasless (NO GAS): 0.9 mm.
• Wire feed speed: 2.0–15.0 m/min.
• Protection class: IP23.
• Dimensions: 77 x 79 x 47 cm.
• Weight: 32 kg.
• Maximum power: 9 kW.
• Certification: EN 60974-1 (40°C).

Included accessories:

• MIG25 torch – 3 m.
• 2.5 m² – 25 mm² cables.
