Wheel alignment system for agricultural machinery Haweka AXIS50 LM

Wheel Alignment System for Agricultural Machinery Haweka AXIS50 LM

Country of origin: Germany, warranty period – 24 months

Haweka AXIS50 LM is a mobile laser wheel alignment system specifically designed for modern tractors and agricultural machinery with independently adjustable steering rod mechanisms. This system allows quick, precise, and manufacturer-compliant adjustment of partial toe for each wheel individually, as well as the measurement of other important chassis geometry parameters. AXIS50 LM is especially suitable in cases where traditional toe alignment using a toe bar is no longer effective – a common situation with new-generation agricultural machines.

Functions:

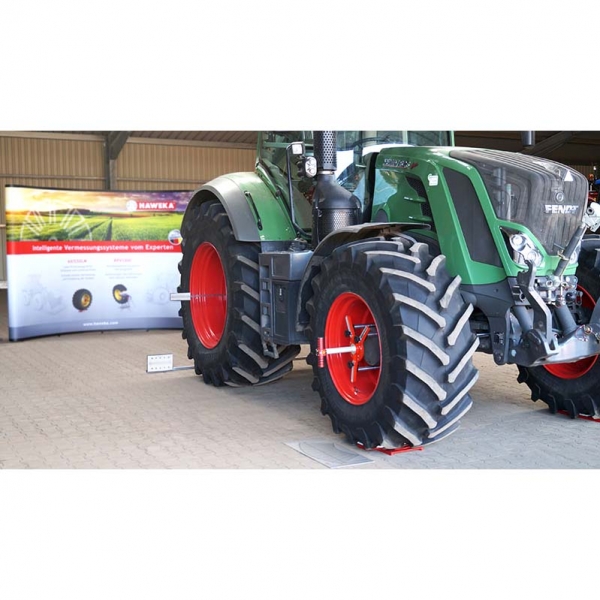

• Measurements are performed in the driven position – no need to lift the vehicle
• Fast measurement of total and partial toe, toe difference angle, and camber angle
• Capable of taking measurements even on tractors with independently adjustable steering rods

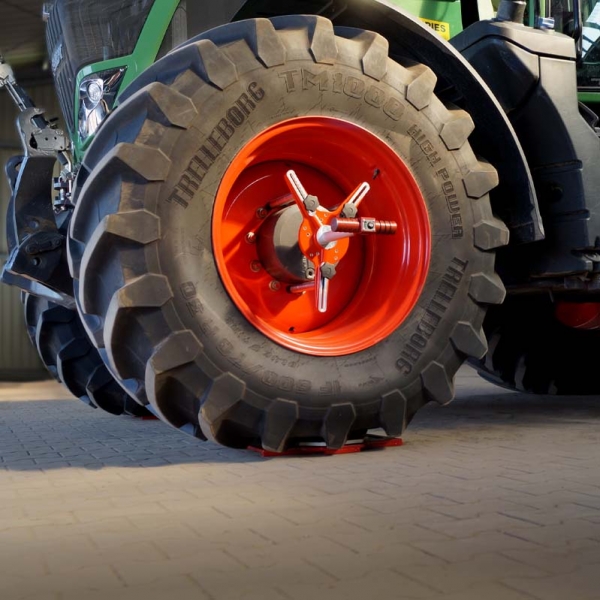

• Easy mounting of the measuring heads using magnetic feet

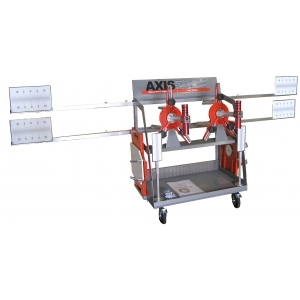

• Includes laser measuring heads, turn plates, floor and track gauges, and a mobile trolley
• Optional electronic inclinometer enables precise camber angle measurement
• Measurement report template is provided on a CD – allows easy data entry and printing
• All equipment is easily transportable in the mobile equipment trolley

Technical Specifications:

• Measurement Accuracy:
• Toe: < ±0.5 mm
• Camber: ±6' (arcminutes)
• Toe difference angle: ±15'
• Measurement Range:
• Toe: ±28 mm
• Camber: up to 5°
• An additional electronic inclinometer is required to measure the camber angle.
• Laser Specifications:
• Power supply: 3 V (2 × 1.5 V AA batteries)
• Radiated power: 0.91 mW
• Operating range: 20 m
• Laser class: 2 according to DIN EN 60825-1
• Turn Plates:
• Load capacity: 9 tonnes per plate

Included in Delivery:

• 2 × laser measuring heads
• 2 × turning plates
• 2 × floor gauges
• 2 × magnetic gauges
• 2 × track gauges
• 1 × mobile equipment trolley
• CD with measurement report template
