Wireless 3D wheel alignment stand X-613 Standard Launch

Wireless 3D Wheel Alignment Stand X-613 Standard Launch

Manufacturer: Launch, warranty period – 24 months

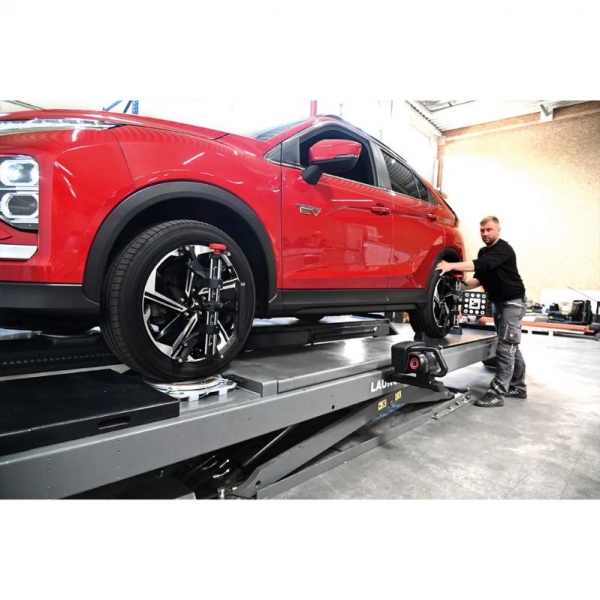

Incorrect wheel alignment increases tire wear, fuel consumption, and worsens handling, directly affecting safety and operating costs. The X-613 wireless 3D wheel alignment stand provides a fast, accurate, and convenient solution for both passenger car service centers and larger workshops. The system is ready to use out of the box, delivers high-precision 3D measurements with rolling compensation, offers broad vehicle coverage, and features smart data management.

Functions:

• Wireless operation – real-time measurements with instant data transmission
• Fast startup – factory-calibrated, no assembly required
• High-accuracy 3D measurement with rolling compensation technology
• Wide compatibility – over 50,000 vehicle models and multiple lift types
• Smart digital management – wireless data storage and convenient report sharing

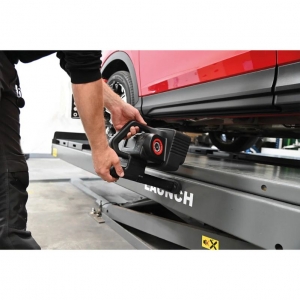

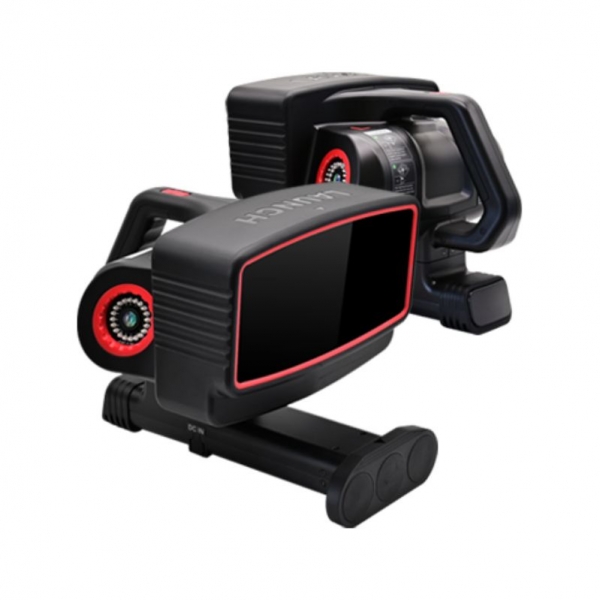

• Measuring units with an integrated mutual-view camera, magnetic mount, and power switch

Benefits of wireless equipment

No wired connections are required—faster and simpler setup and a more convenient layout in the workshop. No obstructive cables, reduced risk of tangling or damage, no need to check plug connections. A stable wireless connection ensures fast and reliable data transmission under intensive working conditions.

3D measurement system

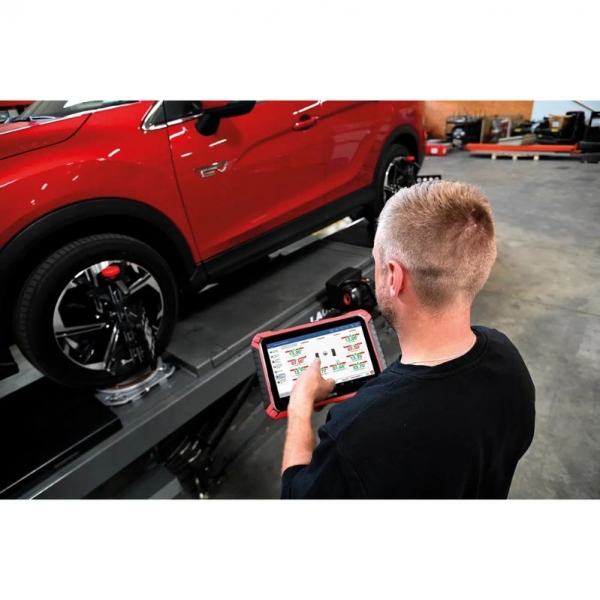

The X-613 three-dimensional measurement system determines axle and wheel parameters with high precision, allowing angles and deviations to be captured and visualized in real time. 3D technology reduces measurement errors and enables alignment to be performed quickly and accurately—without complex manual inputs or calculations—thereby improving work quality and workflow.

Technical specifications:

• Toe angle (toe): ±20°
• Camber: ±10°
• Caster: ±20°
• Wheelbase: 1940–4600 mm
• Track width: 1290–1900 mm
• Rim diameter (with 4-point rim clamp): 275–640 mm
• Tire diameter (with 3-point tire clamp): 470–1100 mm
• Connectivity: wireless (router included)
• Data management: wireless storage and report sharing
• Measuring units: 2 pcs, integrated camera, magnetic mount

Scope of delivery:

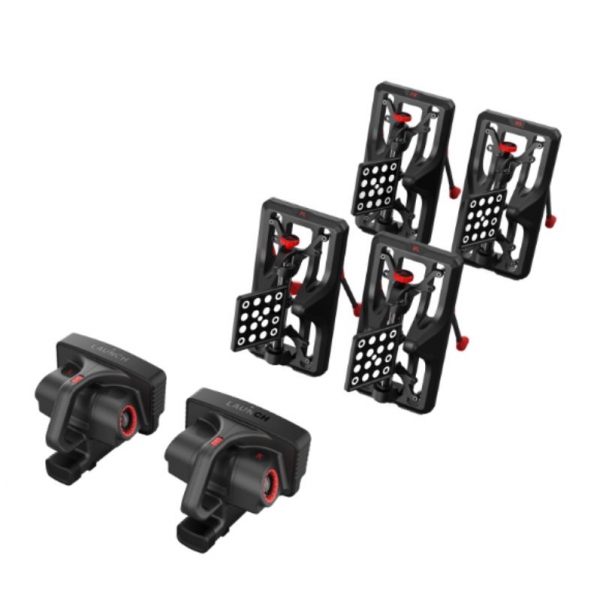

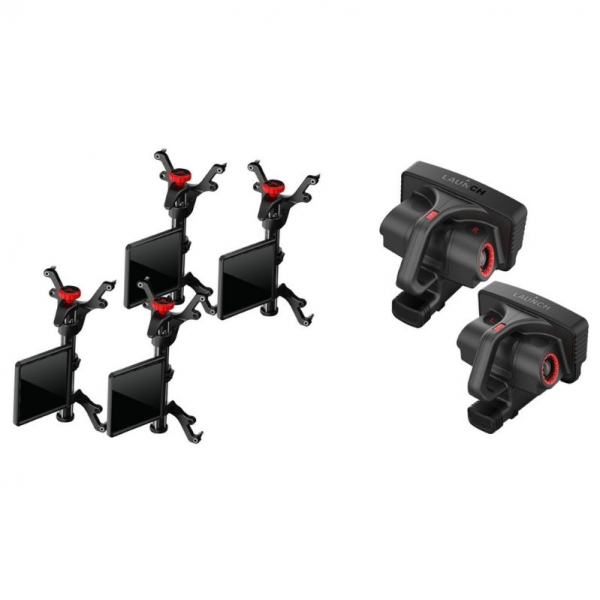

• Targets: 4 pcs (FL, FR, RL, RR)
• Measuring unit: 2 pcs (left and right)
• Wireless router: 1 pc
• Power adapters 12 V 6 A: 2 pcs
• Power cables: 2 pcs (UK and EU)
• Measuring unit brackets: 2 pcs

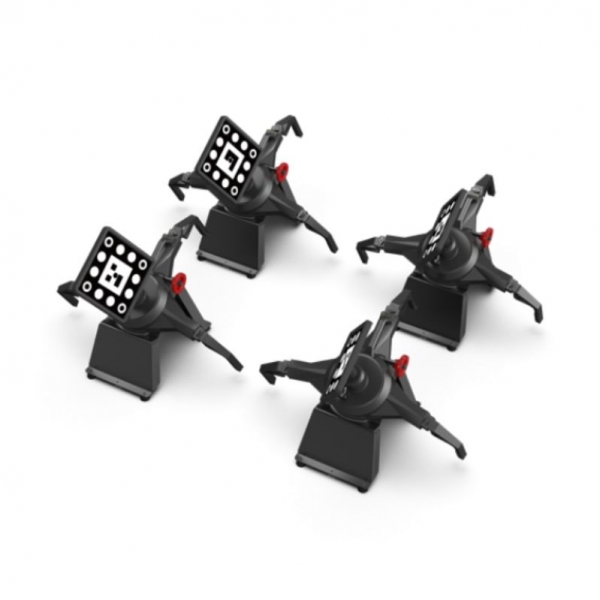

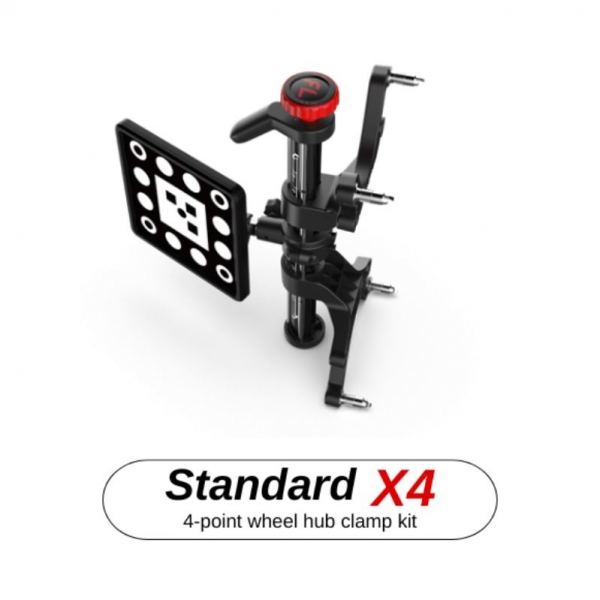

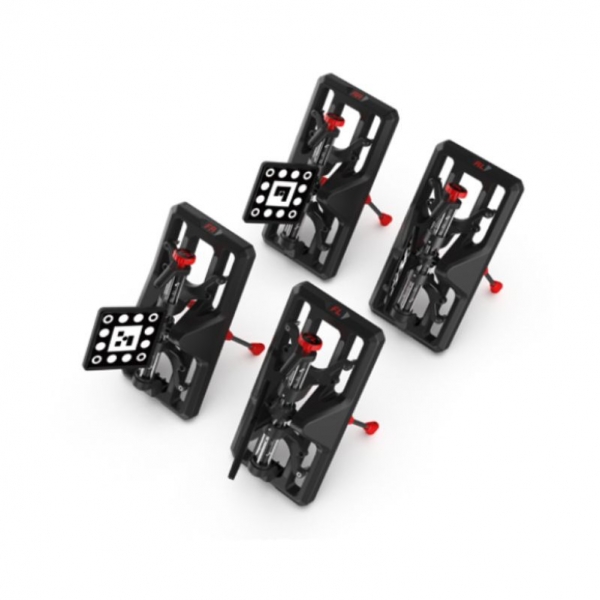

• 4-point clamps: 4 pcs
• 4-point clamp brackets: 2 pcs
• Positioning stickers: 4 pcs
• User manual: 1 pc
• Quick start guide: 1 pc
• Certificate: 1 pc
• Password envelope: 1 pc
• Soft cloth (for screen/optics): 1 pc
• Steering wheel lock: 1 pc
• Brake pedal lock device: 1 pc
• Packing list: 1 pc

X-613 is a reliable, efficient, and precise 3D wheel alignment solution that reduces error risk and job time while helping customers save through even tire wear and better vehicle handling. Choose quality, efficiency, and durability—order this equipment and elevate your workshop’s productivity to a higher level.
