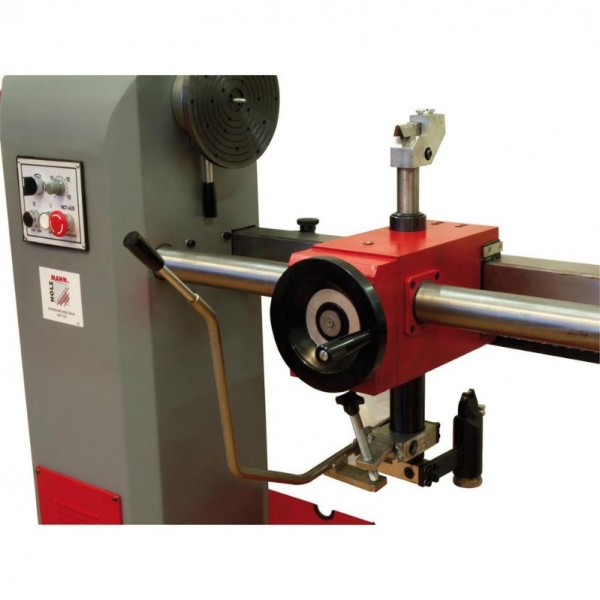

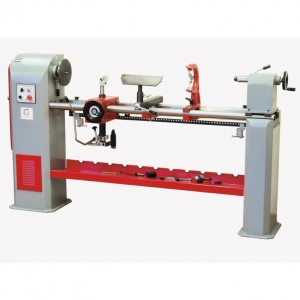

Wood turning lathe Holzmann DBK1300

Wood turning lathe Holzmann DBK1300

Country of origin: Austria, warranty period - 24 months

Note: Available in 400V or 230V

The Holzmann DBK1300 is a robust and reliable wood turning lathe designed for a variety of turning tasks, including copy turning. The lathe features a rigid steel construction, easy one-hand operation, and wide adjustment options. The included accessories allow you to start working immediately. Perfect for both professional use and advanced woodworking enthusiasts.

Functions:

• Sturdy and torsion-resistant steel construction
• Easy one-hand operation with eccentric clamping system
• Solid tailstock with double guide system
• Tailstock with M33 thread and MT2 taper
• Long tool rest with quick clamping and stepless height adjustment
• Wide range of standard accessories included
• Included accessories: 220 mm face plate, screw chuck, 4-prong drive center 40 mm, drill chuck 3–16 mm, arbor B16-MT2, live center MT2, tool rest, steady rest, copying device

Technical specifications:

• Motor power S6: 1500 W
• Motor power S1: 1100 W
• Voltage: 230 V
• Headstock spindle thread: M33
• Tailstock taper: MK2 / MT2
• Spindle speeds: 2800 / 1950 / 1000 / 500 rpm
• Max. copy length: 1100 mm
• Max. copy depth: 50 mm
• Copying center height: 65 mm
• Tailstock quill travel: 100 mm
• Distance between centers: 1300 mm
• Center height: 220 mm
• Net weight: 202 kg
• Gross weight: 228 kg
• Packaging dimensions (H x W x L): 1230 x 490 x 2120 mm
