Wood turning lathe Holzmann VD1100N

Wood turning lathe Holzmann VD1100N

Country of origin: Austria, warranty period - 24 months

Note: Available in 400V or 230V

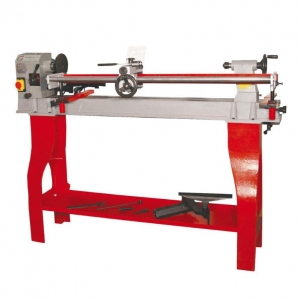

The Holzmann VD1100N is a solidly built wood turning lathe featuring a grey cast iron bed, stand, headstock, and tailstock. This lathe is designed for wood turning and copying tasks, allowing you to work from either a master workpiece or a pattern. The 90° pivotable headstock makes it possible to turn large-diameter pieces. Convenient adjustment of the headstock and tailstock, high-quality components, and a complete set of accessories ensure smooth operation both in workshops and smaller production facilities.

Functions:

• Grey cast iron bed, stand, headstock, and tailstock

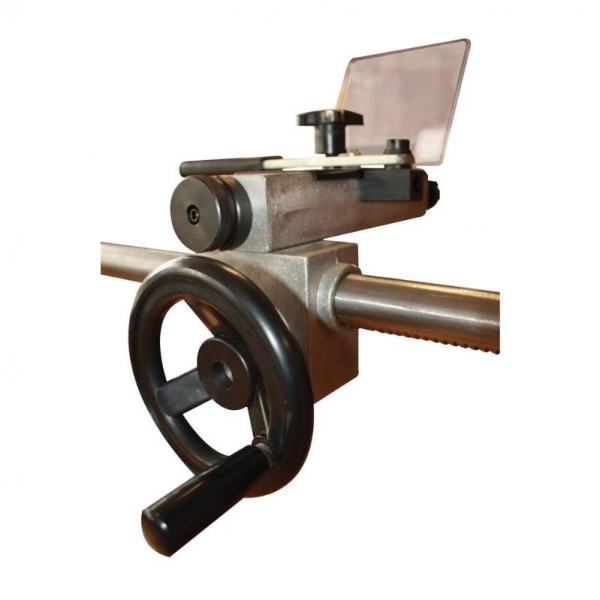

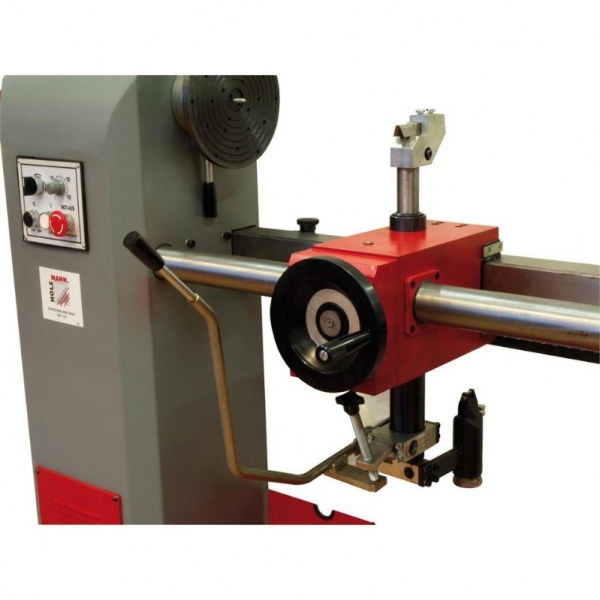

• Copying options: from a master workpiece or a pattern
• Maximum copying length – 1000 mm

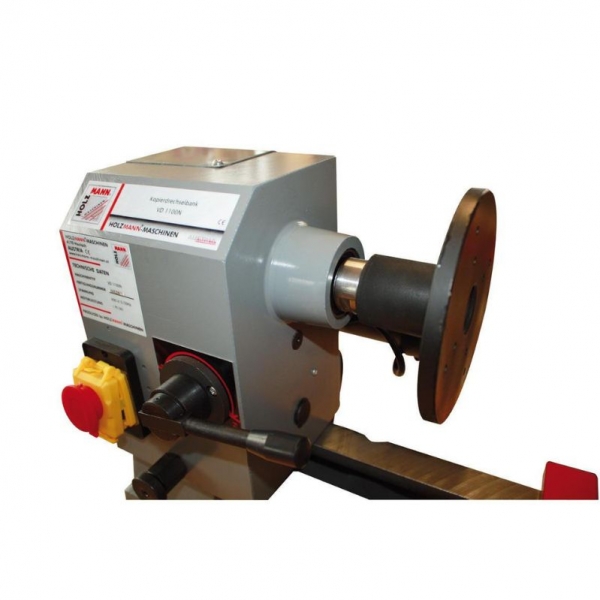

• 90° pivotable headstock for large turning diameters

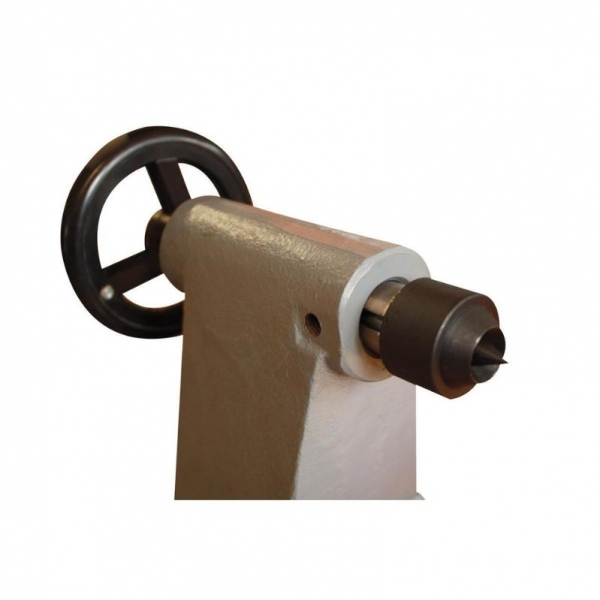

• MT2 tailstock
• Quick adjustment for headstock and tailstock
• Large turning faceplate
• Included accessories: stand, 4-prong drive center, ball-bearing live center, turning faceplate, several tools, copy attachment, tool rest

Technical specifications:

• Motor power S6: 1100 W
• Motor power S1: 750 W
• Voltage: 230 V
• Table height: 900 mm
• Spindle bore: 12 mm
• Headstock spindle thread: M33 DIN800
• Tailstock taper: MK2 / MT2
• Spindle speed: 500–2000 rpm
• Copying center height: 80 mm
• Tailstock quill travel: 60 mm
• Distance between centers: 1100 mm
• Center height: 185 mm
• Net weight: 119 kg
• Gross weight: 149 kg
• Packaging dimensions (H x W x L): 430 x 340 x 1620 mm
