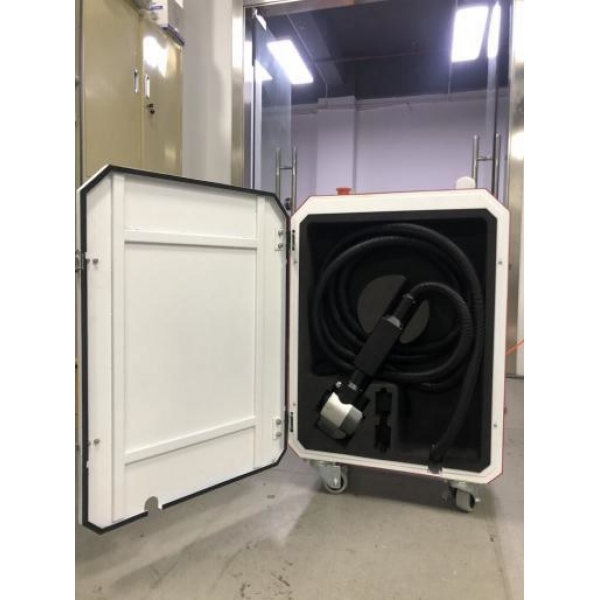

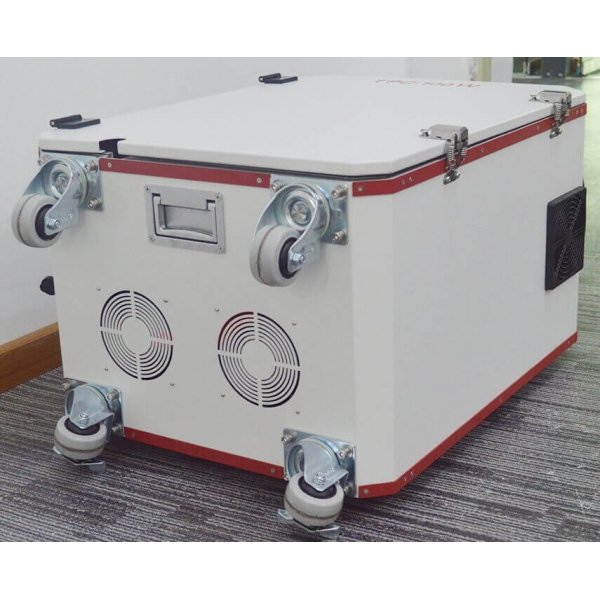

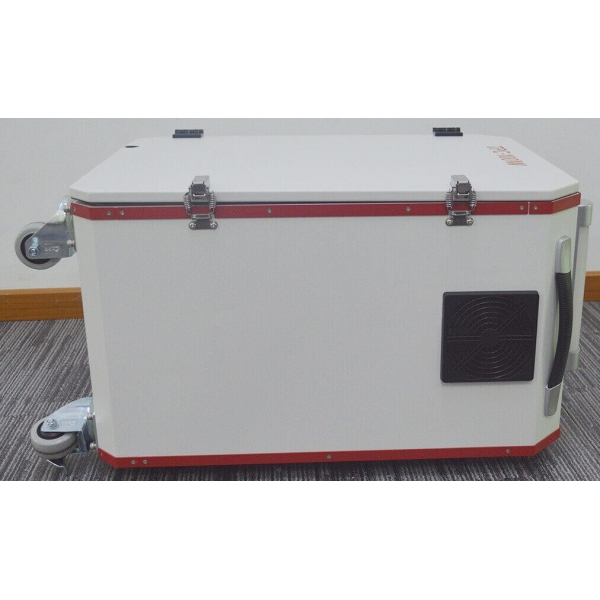

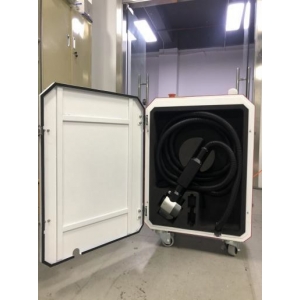

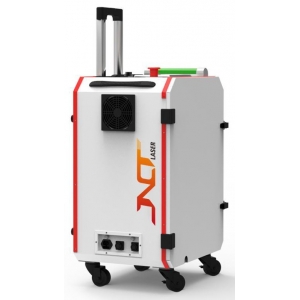

Air-cooled laser cleaning machine TPC-100 Pulse JNCTLaser

Air-Cooled Laser Cleaning Machine TPC-100 Pulse JNCTLaser

Functions:

• Fast removal of paint and coatings – convenient and efficient process
• Precise cleaning with high-quality results
• The substrate remains undamaged
• No special preparation required before use
• Low operating costs
• Air-cooled operation – reduced maintenance and greater mobility

Main system components:

• Laser generation unit
• Control display
• 2D laser control head
• Protective lenses for the laser head

Technical specifications:

• Laser source: RayCus 100 W
• Laser cleaning head: 2D laser head
• Cooling system: air cooling
• Laser source type: nanosecond pulse
• Maximum output power: 100 W
• Wavelength: 1064 ± 5 nm
• Beam quality: M² < 1.8
• Power adjustment range: 10–100%
• Pulse duration: 10 ns, 30 ns, 60 ns (additionally 240 ns)
• Pulse frequency: 20–2000 kHz
• Maximum input power: 800 W
• Optical cable length: 3 m
• Machine dimensions: 538 x 441 x 685 mm
• Machine weight: ~58 kg
• Package size: 980 x 680 x 640 mm
• Package weight: 79 kg
• Operating temperature: 0–40 °C
• Operating humidity: 30–80%
• Laser safety class: Class 4
• Cleaning beam width: 110–175 mm (with additional accessories)
