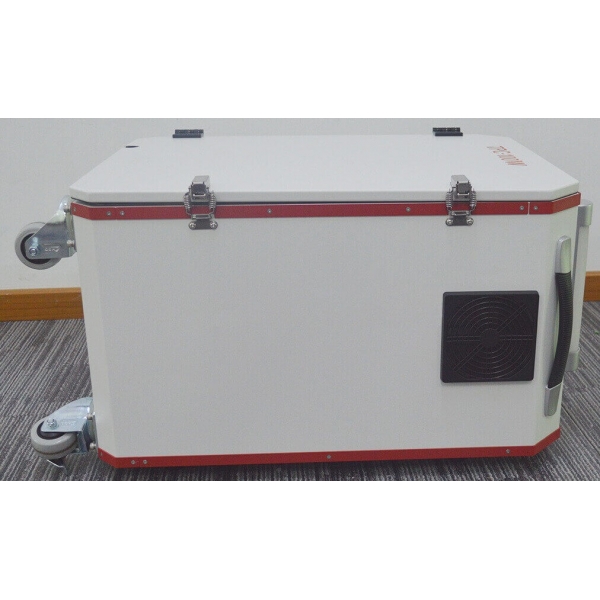

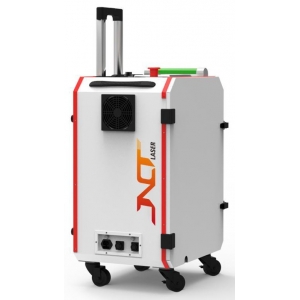

Air-cooled laser cleaning machine TPC-200 Pulse
Air-cooled laser cleaning machine TPC-200 Pulse
- SKU: BD16615
- SKU:: TPC-200 Pulse
15,125.00 €
Send Message
Inquiry for the Vilnius region
Description
Air-cooled laser cleaning machine TPC-200 Pulse
Country of origin: China, warranty period – 24 months
A professional air-cooled pulsed 200 W laser cleaning machine designed for fast and precise removal of rust, paint, and other coatings from various surfaces. The surface laser beam enables effective cleaning without damaging the base material, while the compact, transport-friendly design and simple operation let you start work immediately: connect to the power supply, remove the cleaning head, select the desired mode, and begin cleaning.
Functions:
- Fast removal of paint and oxides from metal and other surfaces
- Precise cleaning and paint removal with an excellent final result
- Undamaged base material
- No special preparations required before starting work
- Low operating costs
- Compact, air-cooled design for convenient transport
- Simple controls and clear modes for different tasks
Main components of the machine:
- Laser beam generation unit
- Control display

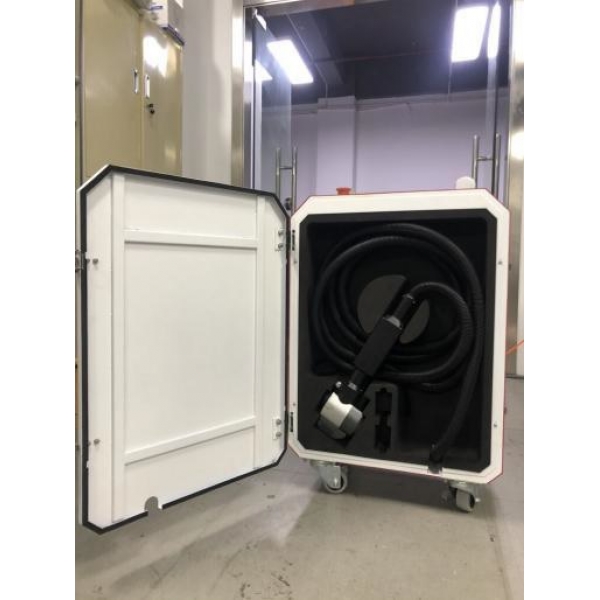

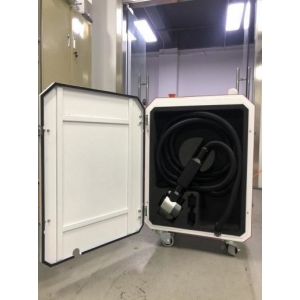

- 2D laser cleaning head
- Protective lenses for the laser cleaning head
Technical specifications:
- Model TPC-200 Pulse
- Laser source RayCus 200 W
- Laser type nanosecond pulsed, surface beam
- Cleaning head 2D laser head

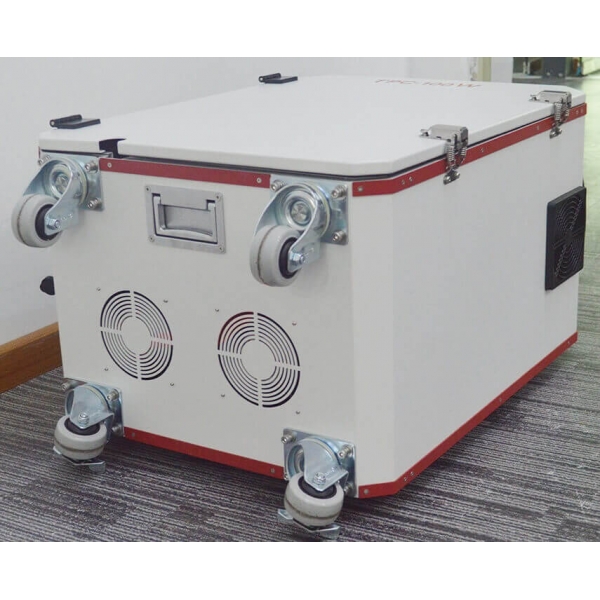

- Cooling air cooling
- Maximum output power 200 W
- Input power up to 1300 W
- Center wavelength 1064 ±5 nm
- Beam quality M² < 1.8
- Power adjustment 10–100%
- Pulse duration 10 / 30 / 60 ns (240 ns optional)
- Pulse frequency 20–2000 kHz
- Optical cleaning cable length 3 m
- Machine dimensions 538 x 441 x 685 mm
- Machine weight 75 kg
- Package dimensions 980 x 680 x 640 mm
- Package weight 92.5 kg
- Operating temperature 0–40 °C
- Ambient humidity 30–80%
- Laser safety class Class 4
- Cleaning beam width 110–175 mm (additional settings)
A reliable, efficient, and easy-to-operate solution for professional surface cleaning without chemicals or abrasives. Choose the TPC-200 Pulse – a combination of quality, efficiency, and durability that ensures a faster, cleaner, and safer cleaning process from day one.
