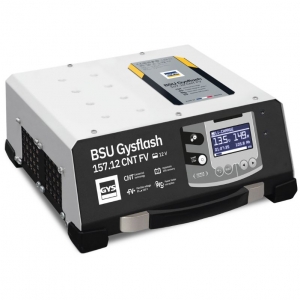

Battery charger and voltage regulator, 12 V, 150 A, GYSFLASH 157.12 CNT FV GYS

Battery charger and voltage regulator, 12 V, 150 A, GYSFLASH 157.12 CNT FV GYS

Country of origin: France; warranty period: 24 months

The GYSFLASH 157.12 CNT FV GYS battery charger and voltage regulator is designed for professional charging of 12 V lead-acid, lithium-ion, and LiFePO4 batteries, for maintaining a stable voltage during diagnostics and programming, and for testing a vehicle’s electrical system. Inverter technology and a charging current of up to 150 A help ensure a stable power supply during intensive diagnostic, programming, or electronics repair work, when it is important to protect the vehicle’s control units from voltage drops. The device is suitable for auto repair shops, diagnostic centers, automotive electronics specialists, and car dealerships.

Technical Specifications:

• Input voltage: 85–265 V
• Power frequency: 50/60 Hz
• Battery voltage: 12 V
• Maximum charging current at 110 V: 100 A
• Maximum charging current at 230 V: 150 A
• Charging current at 25 °C and 100% duty cycle, 110 V power supply: 100 A
• Charging current at 25 °C and 100% duty cycle, 230 V power supply: 135 A
• Charging current at 40 °C and 100% duty cycle, 110 V power supply: 77 A
• Charging current at 40 °C and 100% duty cycle, 230 V supply: 116 A
• Supported battery capacity: 20–1,800 Ah
• Minimum battery voltage for charging: 1 V
• Protection class: IP40
• Charging cable length: 5 m
• Cable cross-section: 25 mm²

12 V 150 A GYSFLASH 157 Battery Charger and Voltage Maintenance Unit.The 12 CNT FV GYS is a professional solution for service centers that require a stable power supply during diagnostics and programming, fast battery charging, and the ability to customize the unit to a specific workstation. High charging current, intelligent operating modes, customizable profiles, and support for CNT modules help streamline daily maintenance tasks for vehicle electrical systems.
