Diesel Generator Arken ARK-B2100 N5, 1,520 kW

Diesel Generator Arken ARK-B2100 N5, 1,520 kW

Country of origin: Turkey, warranty period—24 months

OPEN-TYPE GENERATOR PRICE - 239,520.00 EUR

THE PRICE LISTED IS FOR A CLOSED-TYPE GENERATOR!

Arken is a company founded in 2012 with the slogan, “Life Goes On.” Arken generators can be custom-manufactured to meet individual needs, producing the required diesel generators with power ratings ranging from 2 kVA to 2,750 kVA. These generators are manufactured in a 14,000 m² facility in Arnavutköy and offer the best generator solutions tailored to customer or project requirements. In addition to its central manufacturing plant, “Arken” maintains an extensive global network through which it distributes its manufactured generators and other energy solutions.

“Baudouin” is one of the brands renowned as a reliable manufacturer of marine engines. It is a sought-after brand due to its well-earned durability, high performance, and operational reliability. The Baudouin brand, which has become one of the world’s leading brands, was developed to meet maritime standards and ensure optimal performance. For this reason, it is known as one of the top brands on the list, as it meets environmental protection standards in the maritime sector. These engines, which are manufactured in accordance with marine standards, are designed with safety as a top priority, ensuring the highest quality and a purpose-built design. A “Baudouin” engine is the safest choice, suitable for a wide variety of applications. All components related to engine manufacturing are produced using state-of-the-art tools.

Technical specifications:

• Generated instantaneous electrical power (Stand-by): 2080 kVA / 1664 kW
• Generated continuous electrical power (prime power): 1,900 kVA / 1,520 kW
• Output voltage: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine specifications:

• Manufacturer: Baudouin
• Engine power: 1,604.4 kW
• Engine model: 16M33G2000/5
• Number of cylinders: 16 cylinders
• Number of valves: 64 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1,500 rpm
• Displacement: 52,300 cm³
• Air intake system: forced, turbocharged
• Piston diameter x stroke: 150 x 185 mm
• Compression ratio: 15 : 1
• Cooling: liquid-cooled
• Coolant system capacity: 542 L
• Alternator control: electronic
• Electrical control system: 24 V DC
• Battery charging current: 55 A
• Oil capacity: 175 l
• Cooled air flow rate: 2,340 m³/min
• Electric starter power: 2 x 8.5 kW
• Battery pack: 4 x 150 Ah
• Fuel consumption at (110%) load: 446.8 l/h
• Fuel consumption at (100%) load: 401 l/h
• Fuel consumption at (75%) load: 290 l/h
• Fuel consumption at 50% load: 194.7 L/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator Model: ARK 7H
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Start-up: automatic
• Voltage regulation: Electronic AVR
• Voltage regulation range: ±1%
• THD: < 5%

Control panel:

• Standards: ISO 8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency shut-off switch
• Battery charger, 5 A
• Generator controller
• Control relays
• Jumper (under the panel)

General specifications:

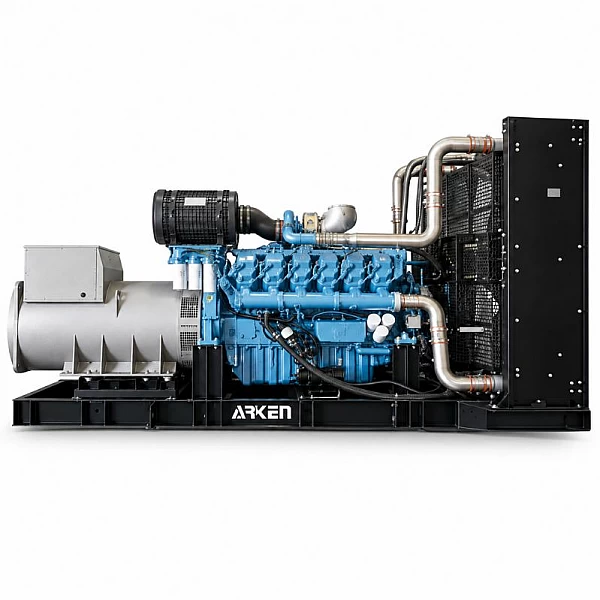

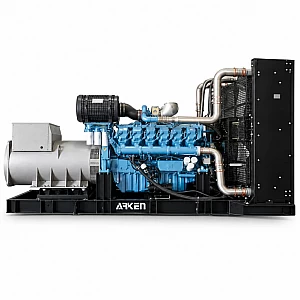

• Open-frame generator length: 5060 mm
• Width of the open-type generator: 2260 mm
• Height of the open-type generator: 2,420 mm
• Open-type generator weight: - kg
• Open generator fuel tank capacity: 3,000 l
• Open-type generator continuous operating time: - hours

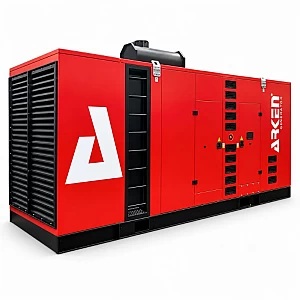

• Enclosed generator length: 9,126 mm
• Enclosed generator width: 2,440 mm
• Enclosed generator height: 3,000 mm *
• Enclosed generator weight: - kg
• Enclosed generator fuel tank capacity: 2,000 l
• Closed generator continuous operating time: - hours
• * The height does not include the height of the sound attenuator

Optional components:

• 3P electrical circuit breaker
• 3P automatic transfer switch (ATS) module
