Tire sensor programming and diagnostic equipment Autel MaxiTPMS ITS600

Tire Sensor Programming and Diagnostic Tool Autel MaxiTPMS ITS600

Manufacturer: Autel, warranty period – 24 months

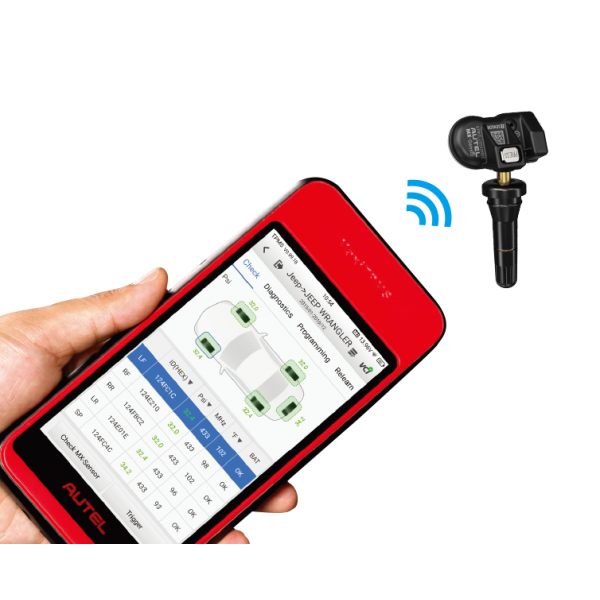

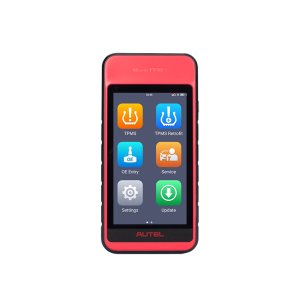

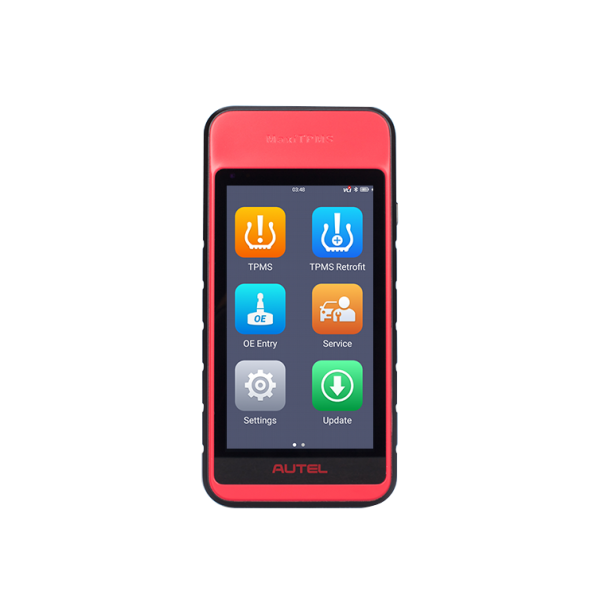

The MaxiTPMS ITS600 is a wireless Android-based touchscreen tablet that offers full TPMS diagnostic and service functions. The tablet features a 5.5-inch color display and a Bluetooth VCI interface. Compatible with US, Asian, and European vehicles equipped with TPMS, the ITS600 includes an enhanced TPMS status screen, fast vehicle identification via VINscan, four MX-Sensor programming options, OBDII relearn functions, and on-screen relearn instructions for all vehicles.

The ITS600 can activate, read, and reprogram all known sensors, perform TPMS diagnostics, and carry out four common maintenance services. Additionally, it offers DOT number scanning, tire expiration notifications, and access to recall lookup. The ITS600 is compatible with the TBE200/TBE100 tire tread and brake disc wear analysis tools, which are sold separately.

TPMS Features:

• Activates, reads, and reprograms all known sensors
• Enhanced tablet interface
• Fast OBDII relearn for most vehicles
• Programs MX-Sensors to replace 99% of OE sensors
• Copies sensor data via OBD programming
• Four MX-Sensor programming modes; batch programming up to 20 MX-Sensors
• Wireless Bluetooth VCI (Vehicle Communication Interface)
• Tire pressure placard value reset
• Read/clear TPMS system codes and view live data
• Free Wi-Fi software updates for the life of the tool
• Quick VIN retrieval via optical VINScan
• QR/barcode scanning, license plate scanning, auto VIN detection, and manual VIN entry
• MMY and OE sensor part number identification through VIN decoding

Diagnostic Function Advantages:

• Oil reset
• Electronic parking brake (EPB) reset
• Battery registration
• Steering angle sensor (SAS) reset
• Full system diagnostics and service software available with Pro Upgrade

Technical Specifications:

• Operating System: Android 9.0
• Processor: Quad-core processor (1.5 GHz)
• Memory: 1 GB DDR4 RAM, 64 GB ROM
• Display: 5.5-inch LCD touchscreen, 1280 × 720 resolution
• Connectivity: Wi-Fi / USB 2.0 Type-C / Bluetooth
• Sensors: Light sensor for automatic brightness adjustment
• Power & Battery: 3.8 V / 5000 mAh lithium-polymer battery
• Charging: 5 V AC/DC power supply
• Charging Input: 5 V / 2 A
• Power Consumption: 600 mA (LCD on, default brightness, Wi-Fi on) @ 3.8 V
• Operating Temperature: -10 to 45°C
• Storage Temperature: -20 to 60°C
• Dimensions: 183.0 mm × 89.0 mm × 22.0 mm
• Weight: 368 g

Package Includes:

• Main device
• MaxiVCI V200
• Power adapter
• USB Type-C cable
• Hex wrench
• User manual
• Carrying case

Optional Upgrade:

The device can be upgraded to ITS600 PRO version for an additional fee.

Main differences between ITS600 and ITS600 PRO devices.
