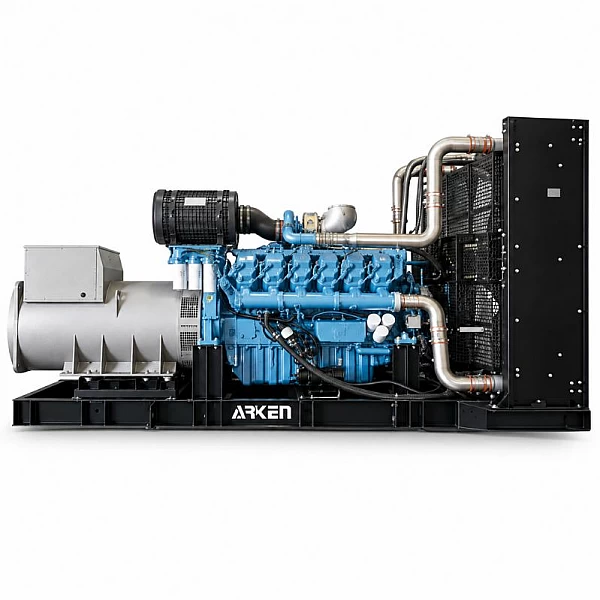

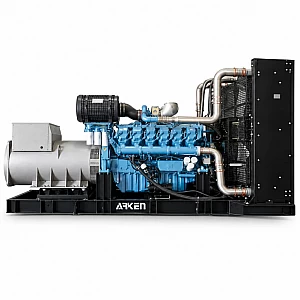

Diesel generator Arken ARK-B900 N5, 660 kW

Arken ARK-B900 N5 diesel generator, 660 kW

Country of origin: Turkey, warranty period—24 months

OPEN-TYPE GENERATOR PRICE - 90,460.00 EUR

THE PRICE LISTED IS FOR A CLOSED-TYPE GENERATOR!

Arken is a company founded in 2012 with the motto, “Life Goes On.” Arken generators can be customized to produce the required diesel generators with power ratings ranging from 2 kVA to 2,750 kVA. These generators are manufactured in a 14,000 m² facility in Arnavutköy and offer the best generator solutions tailored to customer or project requirements. In addition to its central solutions tailored to customer or project requirements. In addition to its central manufacturing facility, “Arken” maintains an extensive global network through which it distributes its manufactured generators and other energy solutions.

“Baudouin” is one of the brands that has become renowned as a reliable manufacturer of marine engines. It is a sought-after brand due to its well-earned reputation for durability, high performance, and operational reliability. The “Baudouin” brand, which has become one of the world’s leading brands, was developed to meet maritime standards and ensure optimal performance. For this reason, it is recognized as one of the top brands on the list, as it meets environmental standards in the maritime sector. These engines, which are manufactured in accordance with marine standards, are designed with safety as a top priority, ensuring the highest quality and a purpose-built design. A “Baudouin” engine is the safest choice, suitable for a wide variety of applications due to its operating principle. All components related to engine production are manufactured using state-of-the-art technology tools.

Technical specifications:

• Instantaneous electric power output (Stand-by): 910 kVA / 728 kW
• Generated continuous electrical power (Prime power): 825 kVA / 660 kW
• Output voltage: 400 V / 230 V AC
• Power factor: Cos φ 0.8

Diesel engine specifications:

• Manufacturer: Baudouin
• Engine power: 725 kW
• Engine model: 12M26G900/5
• Number of cylinders: 12 cylinders
• Number of valves: 48 valves
• Number of engine strokes: 4 strokes
• Engine speed: 1,500 rpm
• Displacement: 31,800 cm³
• Air intake system: forced, turbocharged
• Piston diameter x stroke: 150 x 150 mm
• Compression ratio: 15.7 : 1
• Cooling: liquid-cooled
• Coolant system capacity: 191 L
• Alternator control: electronic
• Electrical control system: 24 V DC
• Battery charging current: 55 A
• Oil capacity: 109 l
• Cooling air flow rate: 1,450 m³/min
• Electric starter power: 10 kW
• Battery pack: 4 x 105 Ah
• Fuel consumption at (110%) load: 190.8 l/h
• Fuel consumption at (100%) load: 173.7 l/h
• Fuel consumption at (75%) load: 133.1 l/h
• Fuel consumption at (50%) load: 90.8 l/h

Generator mechanism:

• Generator manufacturer: Nekra
• Generator Model: ARK 6D
• Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Number of phases: 3 phases
• Number of poles: 4 poles
• Connection type: star
• Bearings: single
• Insulation class: H
• Protection class: IP23
• Start-up: automatic
• Voltage regulation: Electronic AVR
• Voltage regulation range: +-1%
• THD: < 5%

Control panel:

• Standards: ISO 8528-4
• Protection class: IP44
• Control module: ARK700E
• Emergency shut-off switch
• Battery charger 5 A
• Generator controller
• Control relays
• Jumper (under the panel)

General Specifications:

• Open-frame generator length: 4290 mm
• Width of the open-frame generator: 2020 mm
• Height of the open-frame generator: 2,311 mm
• Open-type generator weight: 6,755 kg
• Open-type generator fuel tank capacity: 1,500 l
• Open-type generator continuous operating time: 8.64 hours

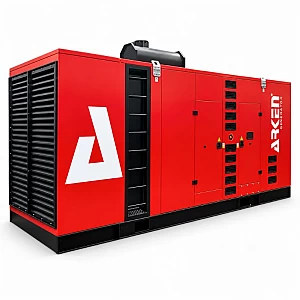

• Enclosed generator length: 5,960 mm
• Enclosed generator width: 2,370 mm
• Enclosed generator height: 2,611 mm*
• Enclosed generator weight: 8,395 kg
• Enclosed generator fuel tank capacity: 1,500 L
• Enclosed generator continuous operating time: 8.64 hours
• * The height does not include the height of the sound attenuator

Optional components:

• 3P electrical circuit breaker
• 3P automatic transfer switch (ATS) module
