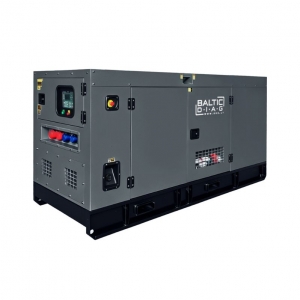

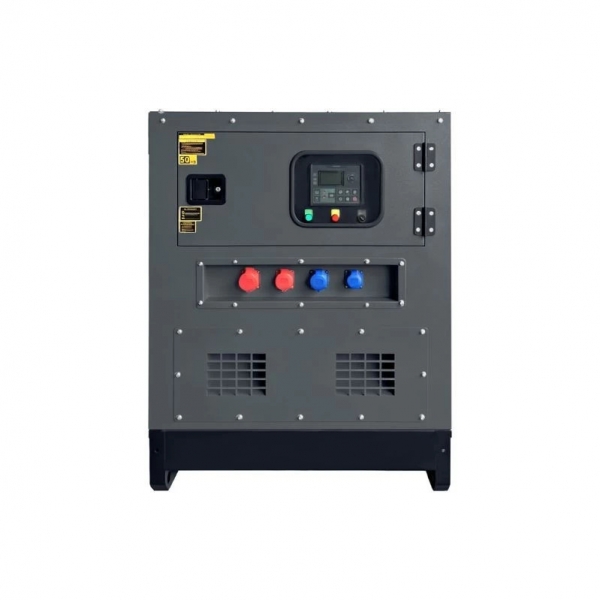

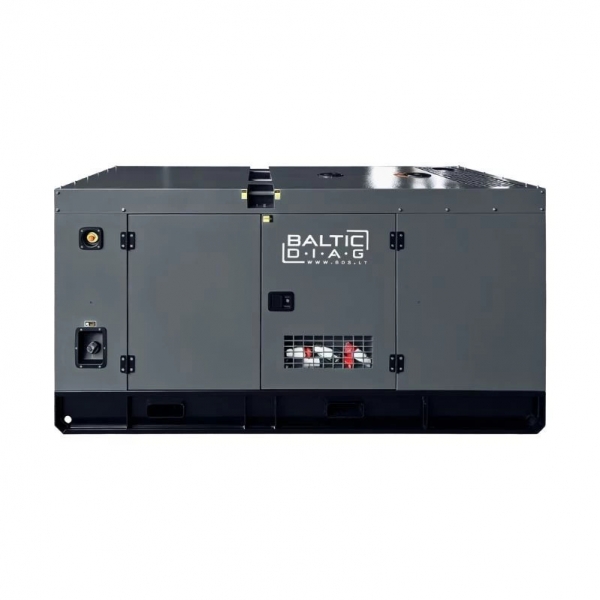

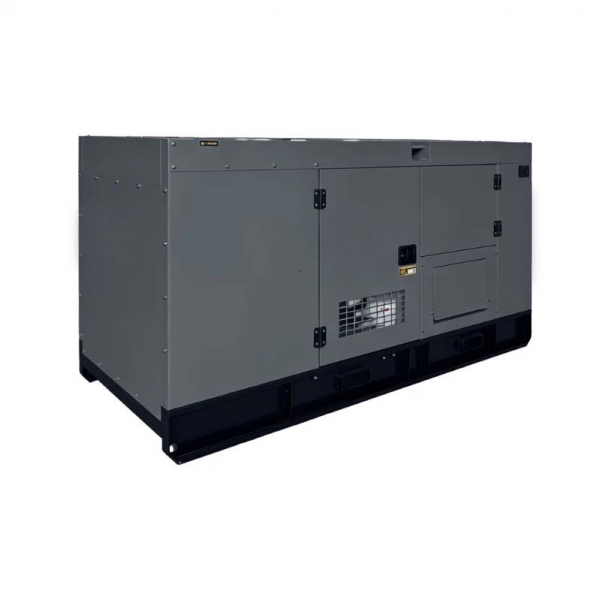

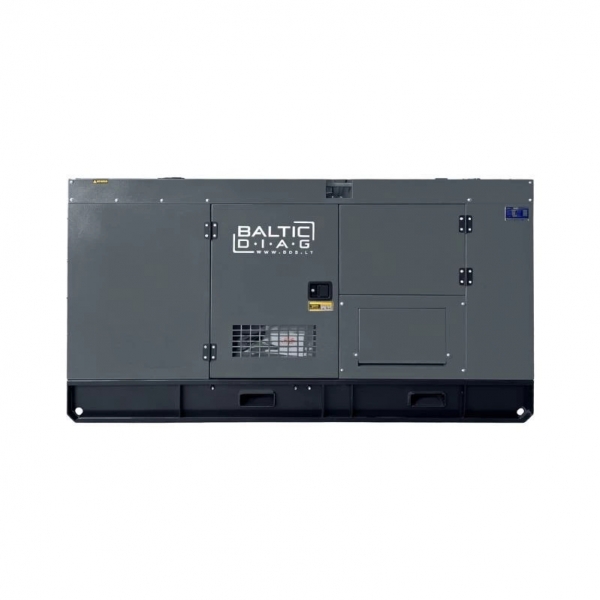

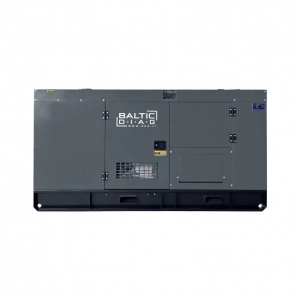

Diesel-powered electric generator 106 kW

Diesel-powered electric generator 106 kW

Country of origin: China; warranty period: 24 months

The 106 kW diesel generator is designed to provide a reliable power supply for industrial facilities, manufacturing plants, commercial buildings, agriculture, construction sites, and other locations where a stable backup or primary power source is required. A powerful diesel system, 400 V output voltage, electronic control, and automatic transfer capability ensure smooth operation even when the grid power supply is disrupted or unavailable.

Technical Specifications:

• Maximum power: 106 kW
• Continuous power: 96 kW
• Continuous voltage: 400 V
• Continuous current: 173 A
• Rated frequency: 50 Hz
• Power factor: 0.8
• Generator model: APS-274D
• Protection class: IP21
• Insulation class: H
• Speed control type: electronic
• Fuel consumption at 25% of rated power: 8.69 l/h
• Fuel consumption at 50% of rated power: 12.86 l/h
• Fuel consumption at 75% of rated power: 17.98 l/h
• Fuel consumption at 100% of rated power: 23.93 l/h
• Minimum fuel consumption ratio: 210 g/kW·h
• Coolant pump flow rate: ≥6.8 m³/h
• Maximum suction head: 6 kPa
• Maximum exhaust gas temperature downstream of the turbine: 620 °C
• Maximum exhaust back pressure: 10 kPa
• Exhaust flange diameter: 88.5 mm
• Charging generator voltage: 28 V
• Charging generator current: 35 A
• Starting voltage: 14 V
• Starter power: 4.5 kW
• Minimum battery capacity: 120 Ah
• Minimum ambient temperature for cold start without auxiliary equipment: -20 °C

The 106 kW diesel generator is the right choice for facilities that require a powerful, stable, and reliable source of electricity. The unit is designed for intensive use, backup power supply, and operation in locations where the reliability of the power supply is critically important.
