Two-post lift with electromagnetic locking and 3+3-stage arms, 4 t, BD-4000EL33
- SKU: BD67009
Send Message
Description
Two-post lift with electromagnetic locking and 3+3-stage arms, 4 t, BD-4000EL33
Country of origin: China, warranty period – 24 months

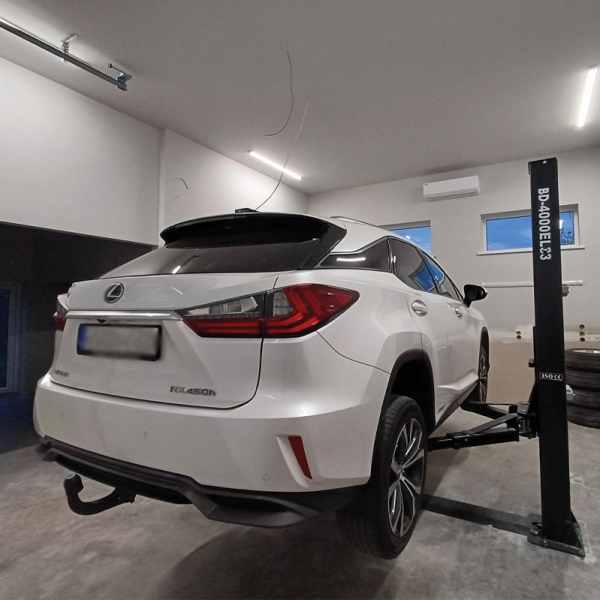

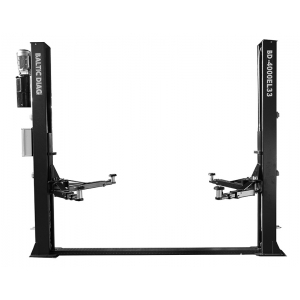

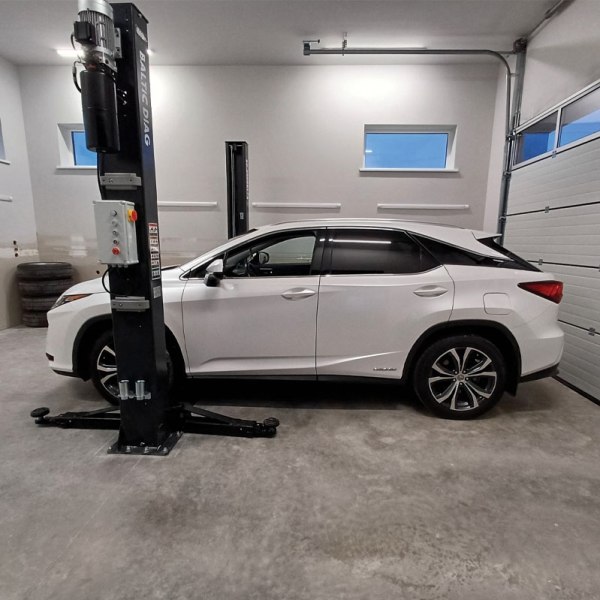

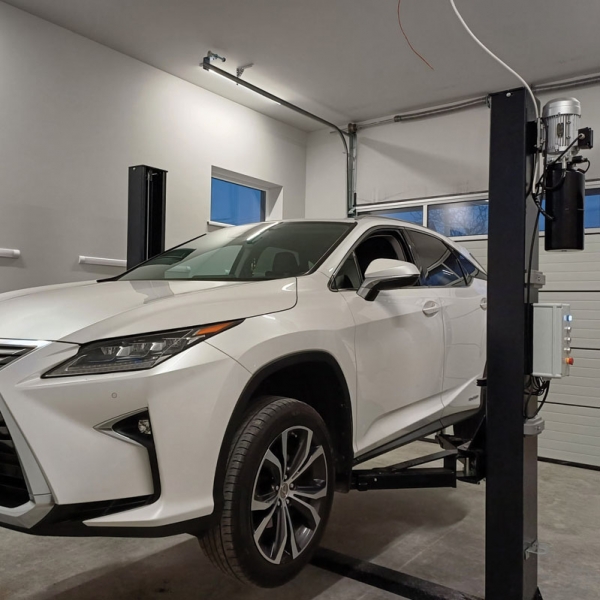

The BD-4000EL33 is a professional two-post lift designed for lifting passenger cars and light commercial vehicles up to 4 tons. The lift operates on a hydraulic system where pressure is generated by a hydraulic pump and delivered to the lifting cylinders. A key feature of this model is the electromagnetic safety locking mechanism, which automatically secures the arms during lifting, ensuring safe operation even in the event of hydraulic pressure loss. Its robust construction, bottom-mounted synchronization, and reliable valve control system ensure consistent and safe performance every time.
Features:

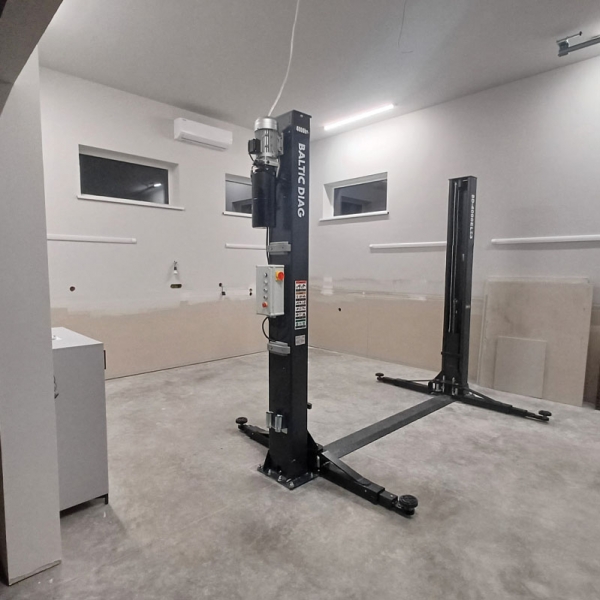

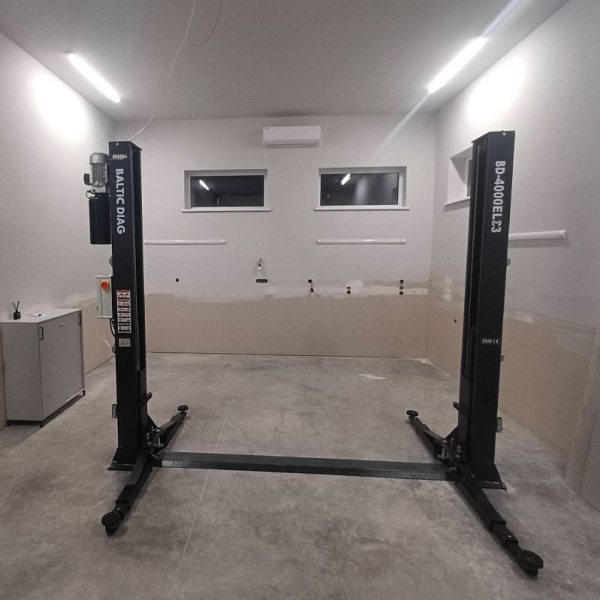

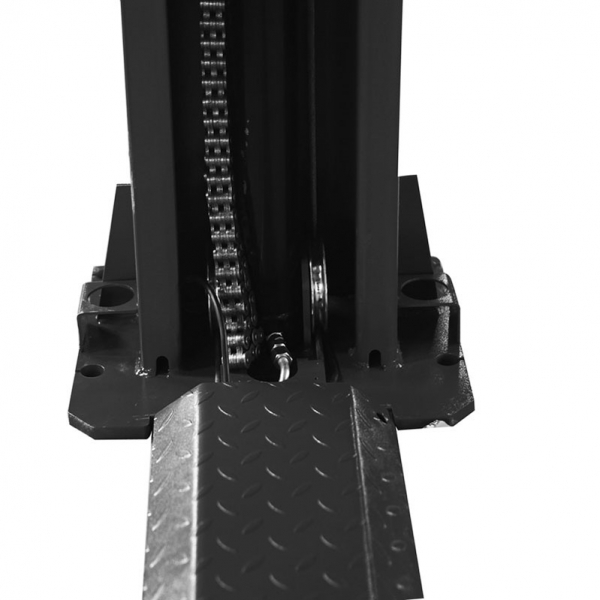

- Bottom-mounted column synchronization

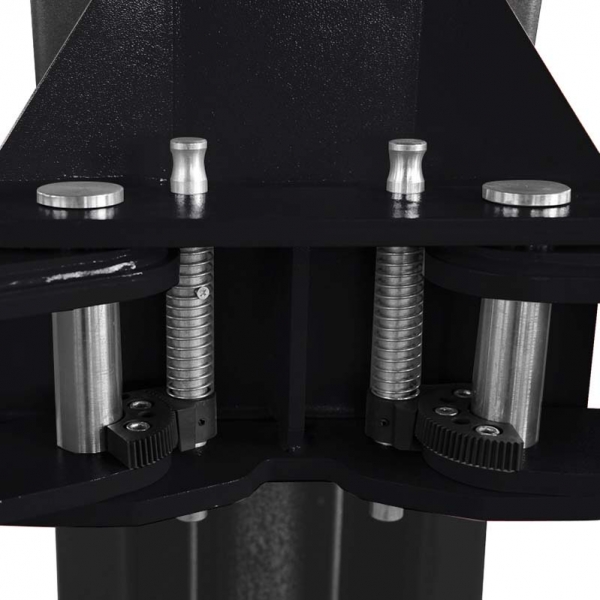

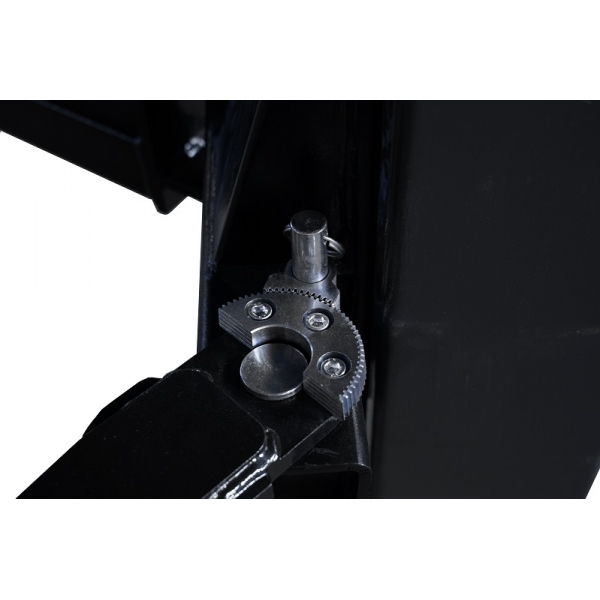

- Electromagnetic arm locking mechanism for automatic safety during lifting

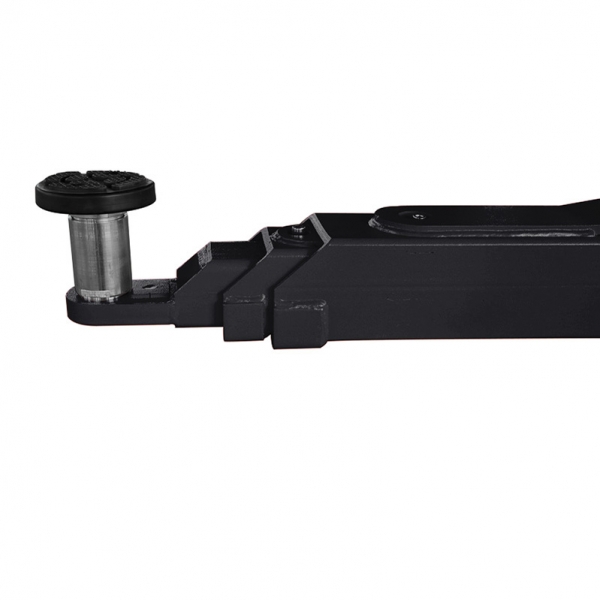

- Extendable 3-stage arms (750–1500 mm) for flexible adaptation to various vehicles

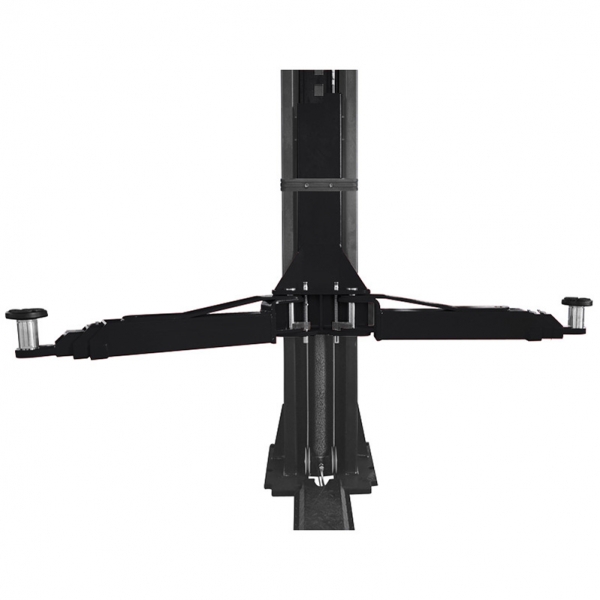

- Reinforced arm carriage construction

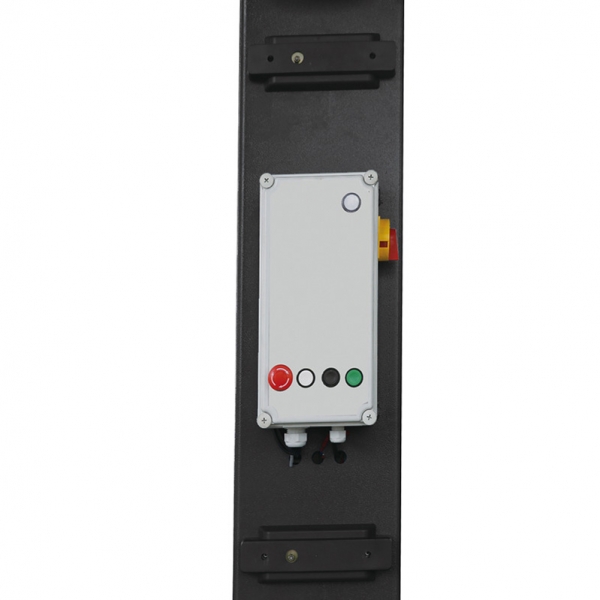

- Pressure control via electromagnetic valves
- CE certified – complies with EU safety standards

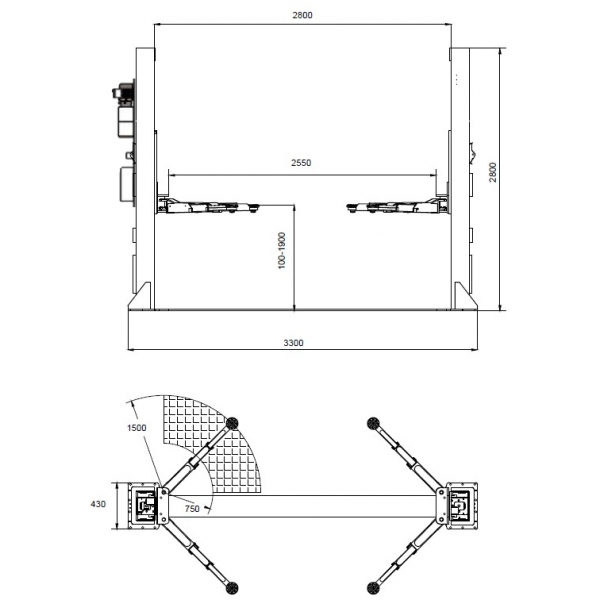

Technical Specifications:
- Lifting capacity: 4000 kg
- Lifting time: 45 seconds
- Lifting height: 1900 mm

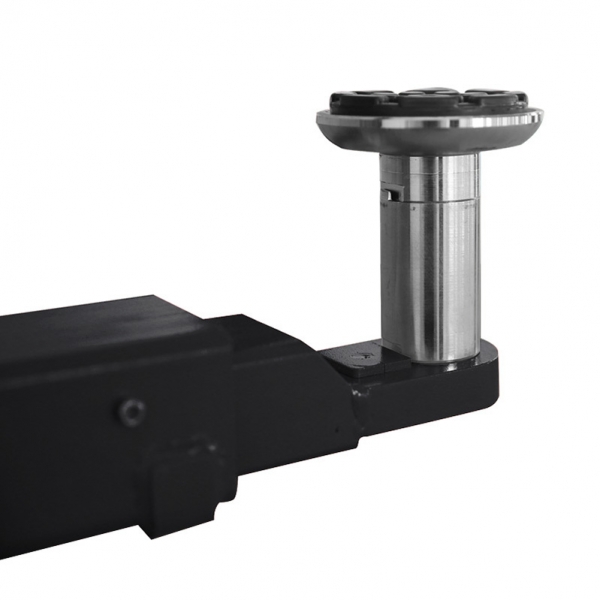

- Minimum pad height: 100 mm

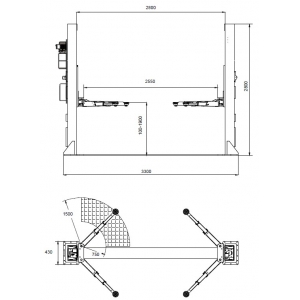

- Arm length (3-stage): 750–1500 mm
- Overall lift width: 3300 mm
- Distance between columns: 2800 mm
- Column height: 2800 mm
- Maximum vehicle width serviced: 2500 mm

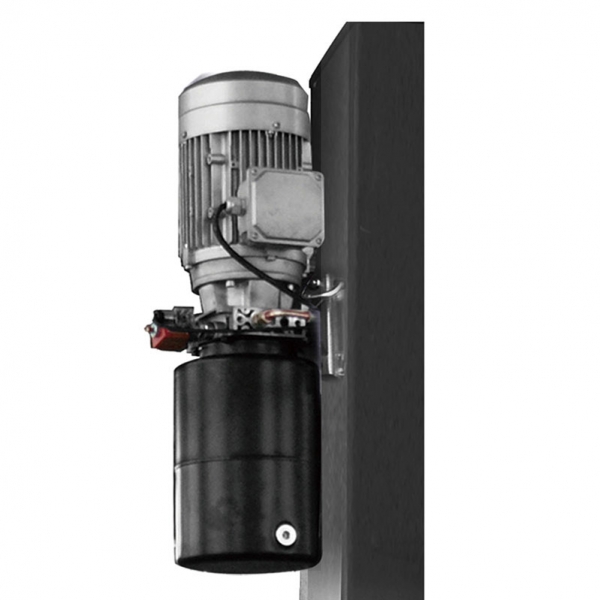

- Electric motor: 2.2 kW
- Power supply: 400 V / 50 Hz / 3-phase
- Color: RAL7021
