Electric pallet truck 1.5 tons, HanseLifter E-LI-MOVER15-V2

New

HanseLifter E-LI-MOVER15-V2 1.5-metric-ton Electric Pallet Truck

Based on 0 reviews. - Write a review

SKU: BD71682
SKU:: GE0084593

1,309.00 €

Hanselifter

Prices shown include tax

Add to Cart

Send Message

Description

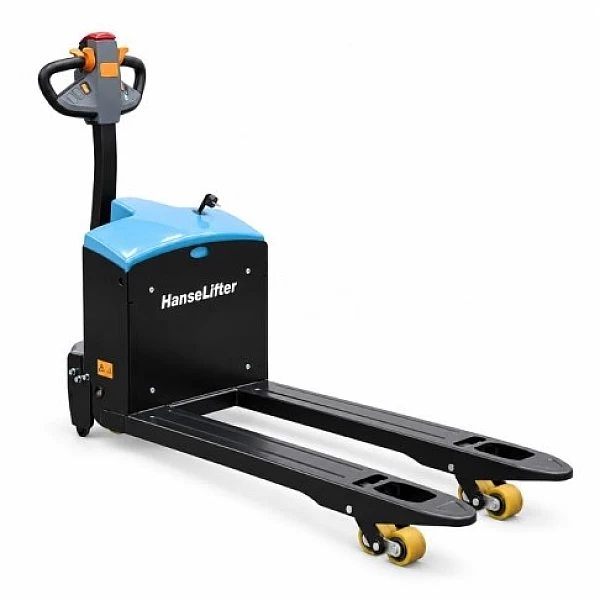

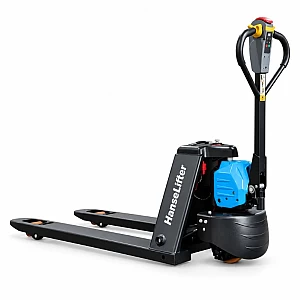

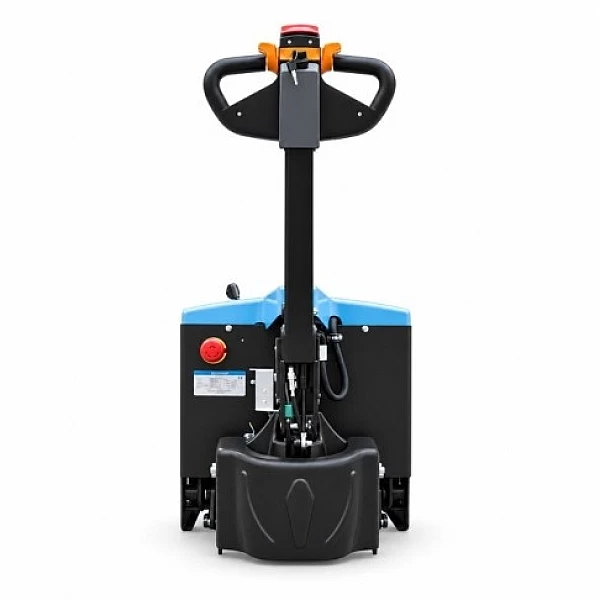

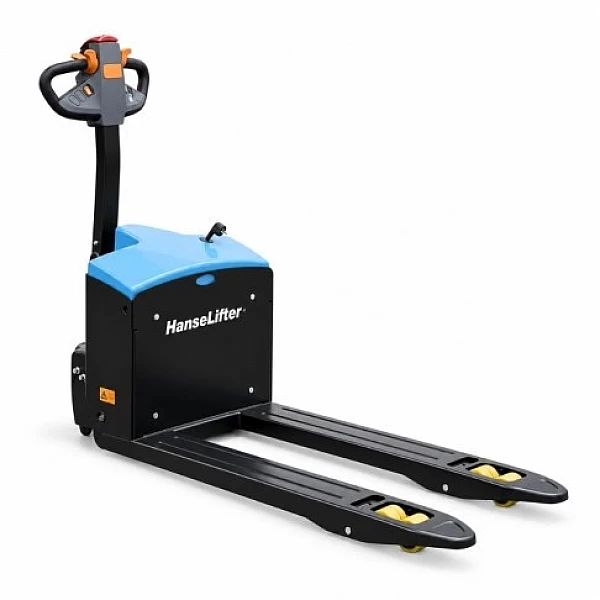

HanseLifter E-LI-MOVER15-V2 1.5-metric-ton Electric Pallet Truck

Country of origin: Germany; warranty period: 24 months

The HanseLifter E-LI-MOVER15-V2 is a professional electric pallet truck with a replaceable lithium-ion battery, designed for the efficient lifting and transport of pallets in warehouses, production facilities, retail locations, logistics centers, and vehicle loading areas. A lifting capacity of 1,500 kg allows for the reliable transport of heavy Euro pallets and pallets of other standards, while the fully electric drive system for both travel and lifting reduces the physical strain on employees and increases productivity. The lifting range from 75 to 185 mm ensures convenient pallet lifting and handling, while the compact design, 550 mm total width, and multifunctional control handle allow for precise maneuvering even in confined workspaces. The replaceable 48 V / 10 Ah lithium-ion battery allows for flexible work organization, and the external charger enables convenient charging from a standard 230 V electrical outlet. The brushless drive motor, durable polyurethane wheels, and integrated safety features ensure smooth, reliable, and efficient daily use.

Technical Specifications:

Lifting capacity: 1,500 kg
Drive type: electric drive and electric lift
Control type: pedestrian-controlled
Travel motor power: 0.72 kW
Lifting motor power: 0.8 kW
Travel motor type: brushless
Motor control type: direct current (DC)
Distance to load center of gravity: 600 mm
Load distance: 950 mm
Wheelbase: 1210 mm
Lifting range: 75–185 mm
Maximum fork lift height: 185 mm
Minimum fork height: 75 mm
Fork stroke: 110 mm
Fork length: 1,150 mm
Fork dimensions: 55 × 160 × 1,150 mm
Outer fork width: 550 mm
Frame length without forks: 450 mm
Handle height: 770–1,265 mm
Front wheel size: 140 × 55 mm
Rear wheel size: 70 × 70 mm
Support wheel size: 50 × 45 mm
Fork wheel configuration: tandem
Wheel material: polyurethane (PU)
Rear track width: 390 mm
Clearance at the center of the wheelbase: 30 mm
Turning radius: 1,413 mm
Working passage width with an 800 × 1200 mm pallet: 2084 mm
Travel speed with a load: 4 km/h
Travel speed without load: 4.5 km/h
Lifting speed with/without load: 23 / 39 mm/s
Lowering speed with load / without load: 39 / 28 mm/s
Maximum climbability with load: 6%
Maximum climbable gradient without load: 15%
Braking system: electric
Crawl mode: available
Auto-shutdown function: Yes
PIN code access: yes
Control screen: with battery charge indicator, operating hours counter, and diagnostic messages
Battery type: lithium-ion (Li-ion), maintenance-free
Battery voltage: 48 V
Battery capacity: 10 Ah
Battery weight: 4.8 kg
Battery replaceable: yes
Approximate battery charging time: 4 hours
Charger: external
Charging voltage: 230 V
Noise level at the operator’s position: no more than 75 dB(A)
Controls: electric lifting, lowering, and travel

The HanseLifter E-LI-MOVER15-V2 1.5 metric tons is the right choice for companies that need a compact, reliable electric pallet truck designed for intensive daily use. With a lifting capacity of 1,500 kg, a lifting range of 75–185 mm, electric drive for both travel and lifting, and a multifunctional control handle, it enables more efficient pallet loading, unloading, and transport operations. A replaceable lithium-ion battery, a brushless motor, durable polyurethane wheels, and integrated safety features ensure convenient, efficient, and long-lasting use in warehousing, manufacturing, retail, and logistics.

Electric pallet lifting, lowering, and transport
A lifting capacity of 1,500 kg allows for the transport of heavy storage and industrial pallets
A lifting range of 75 to 185 mm allows for the convenient lifting and moving of standard pallets
The electric drive reduces physical effort when transporting heavy loads
The electric lifting mechanism allows the load to be raised and lowered without using a manual hydraulic pump
A 0.72 kW brushless travel motor ensures smooth and efficient pallet transport
A 0.8 kW lifting motor enables reliable lifting of heavy loads
The brushless motor features low maintenance requirements and a long service life
The multifunctional control handle allows for convenient control of travel, lifting, and lowering
The ergonomic rubber-coated control handle ensures a comfortable grip and precise control of the pallet truck
The slow-speed mode allows for precise maneuvering in tight spaces and loading areas
The ability to maneuver with the control handle in an almost vertical position makes working in confined spaces easier
The integrated control display allows you to monitor the battery charge level, operating hours, and diagnostic messages
The PIN code access feature helps protect the equipment from unauthorized use
The replaceable lithium-ion battery ensures flexible and convenient use of the equipment
The quick-change battery system makes it easy to remove and replace the battery
Lithium-ion technology features a long service life, low self-discharge, and no memory effect
The battery can be recharged during work breaks
Charging the battery from a standard 230 V electrical outlet takes approximately 4 hours
The external battery charger allows you to conveniently charge the battery without connecting the entire cart to the power grid
A spare lithium-ion battery is available upon separate request
The integrated auto-shutdown function helps reduce unnecessary energy consumption
The electric braking system ensures controlled stopping of the wheelchair
The integrated automatic parking brake function helps prevent the cart from moving unintentionally on slopes
Tandem casters help distribute the load more evenly and navigate floor joints and minor unevenness more smoothly
Polyurethane casters feature quiet rolling, wear resistance, and are suitable for smooth industrial floors
The compact design is optimized for use in narrow warehouse aisles and confined spaces
The 1,150 mm-long forks and 550 mm outer fork width are designed for transporting standard European pallets
A maximum travel speed of 4.5 km/h allows for efficient transport of loads within the warehouse
The truck can handle slopes of up to 6% when loaded and up to 15% when unloaded
The low net weight of 111 kg makes it easy to transport and use the cart in various work areas
Its compact dimensions allow for convenient use in cargo trucks, elevators, and loading docks
The sturdy construction is designed for intensive daily use
Suitable for use in warehouses, manufacturing facilities, retail locations, logistics centers, and vehicle loading areas

Length: 1600 mm
Width: 550 mm
Height depending on the position of the control handle: 770–1,265 mm
Weight: 111 kg

HanseLifter E-LI-MOVER15-V2 Electric Pallet Truck x 1
Replaceable 48 V / 10 Ah lithium-ion battery x 1
External battery charger x 1
Multifunction control handle with integrated display x 1
Integrated electric lifting mechanism x 1
Tandem casters x 1
Electric braking system x 1
