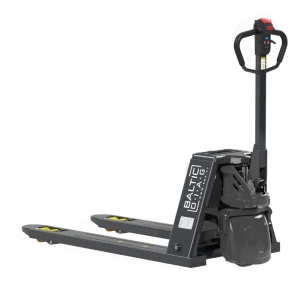

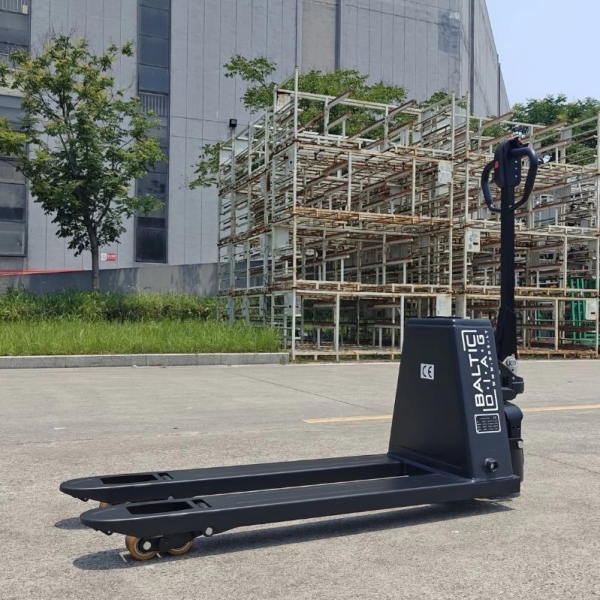

BD-20i 2,000 kg Electric Pallet Truck

Electric pallet truck 2000 kg BD-20i

Country of origin: China; warranty period: 24 months

The BD-20i electric pallet truck is designed for intensive transport of palletized cargo in warehouses, manufacturing facilities, logistics centers, retail locations, and other work areas. With a 2000 kg lifting capacity and electric drive and lifting, it helps speed up daily cargo handling tasks and reduce the physical strain on workers. The hybrid electric and manual control system allows for greater flexibility in adapting to different working conditions and reduces downtime.

Technical Specifications:

• Lifting capacity: 2000 kg
• Load center: 600 mm
• Drive mode: electric and manual
• Lifting mode: electric and manual
• Minimum fork height: 80 mm
• Maximum fork lift height: 200 mm
• Fork dimensions: 1150 × 160 × 52 mm
• Total fork width: 540 mm
• Drive motor power: 0.75 kW
• Drive motor type: brushless
• Lifting motor power: 0.65 kW
• Battery voltage: 48 V
• Battery capacity: 15 Ah
• Battery type: LiFePO4
• Charger specifications: 48 V / 5 A
• Travel speed with load: up to 4.2 km/h
• Travel speed without load: up to 4.5 km/h
• Maximum gradeability with load: 8%
• Maximum gradeability without load: 20%
• Turning radius: 1,422 mm
• Wheel material: polyurethane
• Steering wheel diameter: 180 mm
• Load wheel diameter: 75 mm
• Service brake type: electromagnetic
• Distance from floor to bottom of chassis: 27 mm

The BD-20i 2,000 kg electric pallet truck is a practical choice for companies that need equipment with higher lifting capacity, a compact design, and easy handling for everyday cargo transport. Electric and manual modes, a LiFePO4 battery, a brushless motor, and ergonomic controls allow for more efficient organization of warehouse processes and reduced downtime.
