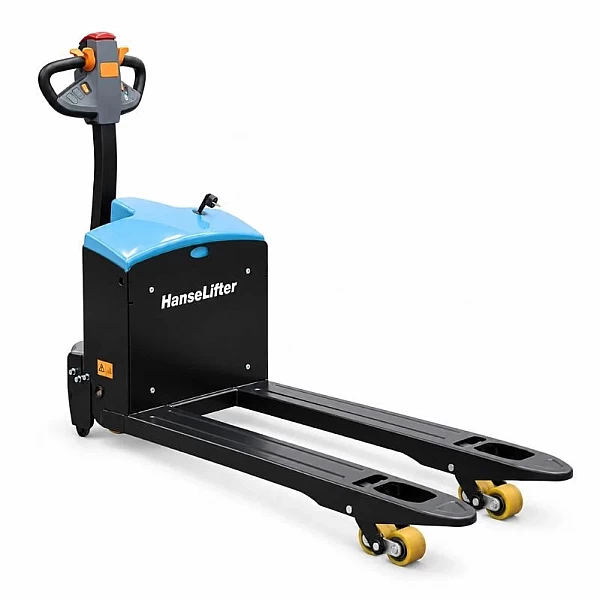

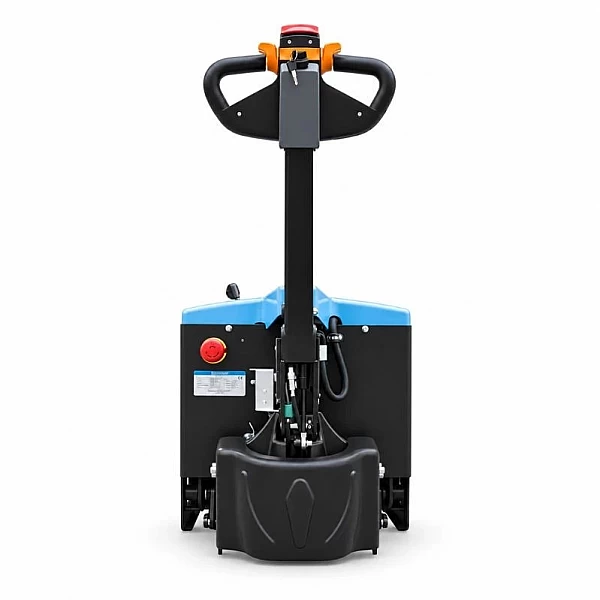

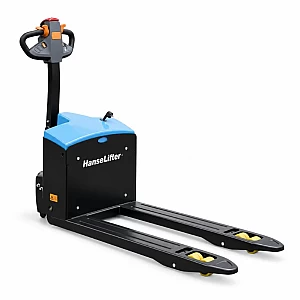

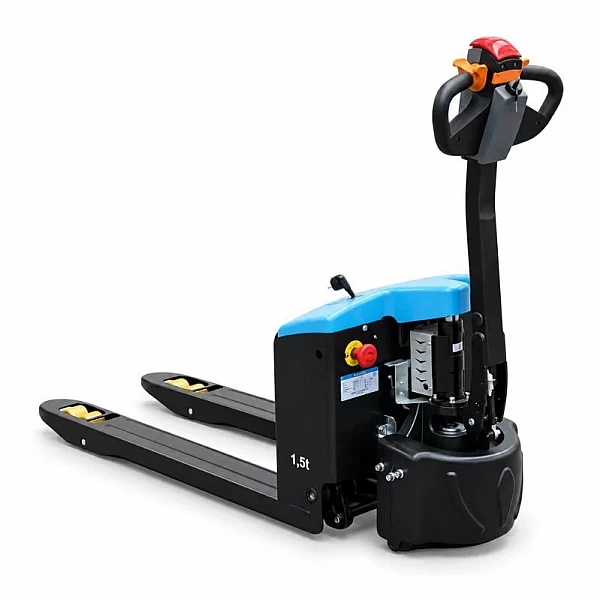

HanseLifter E-LI-FLOW-V2 2-metric-ton Electric Pallet Truck with Lithium-Ion Battery

HanseLifter E-LI-FLOW-V2 2-metric-ton Electric Pallet Truck with Lithium-Ion Battery

Country of origin: Germany; warranty period: 24 months

The HanseLifter E-LI-FLOW-V2 is a professional electric pallet truck with a swappable lithium-ion battery, designed for the efficient lifting and transport of pallets in warehouses, production facilities, retail locations, logistics centers, and vehicle loading areas. A lifting capacity of 2,000 kg allows for the reliable transport of heavy Euro pallets and pallets of other standards, while the fully electric drive system for travel and lifting reduces the physical strain on employees and increases productivity. The lifting range from 82 to 200 mm ensures convenient pallet lifting and handling, while the compact design, a total width of 550 mm, and the multifunctional control handle allow for precise maneuvering even in confined workspaces. The replaceable 48 V / 20 Ah lithium-ion battery allows for flexible work organization and quick replacement of a discharged battery, while the external charger allows for convenient charging from a standard 230 V electrical outlet. Additional support wheels, a sturdy construction, and durable polyurethane wheels ensure stable, smooth, and reliable daily use.

Technical Specifications:

• Lifting capacity: 2000 kg
• Drive type: electric travel and electric lifting
• Control type: pedestrian-controlled
• Drive motor power: 0.75 kW
• Lifting motor power: 0.8 kW
• Motor control type: direct current (DC)
• Distance to load center of gravity: 600 mm
• Load distance: 947 mm
• Wheelbase: 1,189 mm
• Lifting range: 82–200 mm
• Maximum fork lift height: 200 mm
• Fork length: 1,150 mm
• Outer fork width: 550 mm
• Fork wheel configuration: tandem
• Additional side support wheels: yes
• Front wheel size: 210 × 75 mm
• Rear wheel size: 80 × 70 mm
• Wheel material: polyurethane (PU)
• Rear track width: 380 mm
• Clearance at the center of the wheelbase: 30 mm
• Turning radius: 1358 mm
• Working passage width with an 800 × 1200 mm pallet: 2034 mm
• Travel speed with load: 4.2 km/h
• Travel speed without load: 4.5 km/h
• Lifting speed with/without load: 12 / 21 mm/s
• Lowering speed with load / without load: 50 / 35 mm/s
• Maximum gradeability with load: 7%
• Maximum gradeability without load: 16%
• Braking system: electric
• Battery type: lithium-ion (Li-ion), maintenance-free
• Battery voltage: 48 V
• Battery capacity: 20 Ah
• Battery weight: 5.4 kg
• Battery replacement option: available
• Battery replacement system: quick-change
• Charger: external
• Charger power supply: 230 V
• Noise level at the operator’s position: no more than 70 dB(A)
• Controls: electric lifting, lowering, and travel

The HanseLifter E-LI-FLOW-V2 2-metric-ton is the right choice for companies that need a reliable, compact electric pallet truck designed for intensive daily use. With a lifting capacity of 2,000 kg, a lifting range of 82–200 mm, electric drive for both travel and lifting, and a multifunctional control handle, it enables more efficient pallet loading, unloading, and transport operations. A quick-change lithium-ion battery, optional support wheels, durable polyurethane wheels, and a robust construction ensure stable, comfortable, and long-lasting use in warehousing, manufacturing, retail, and logistics.
