Four-Post, Four-Car Parking Lift

Country of origin: China, warranty period – 24 months

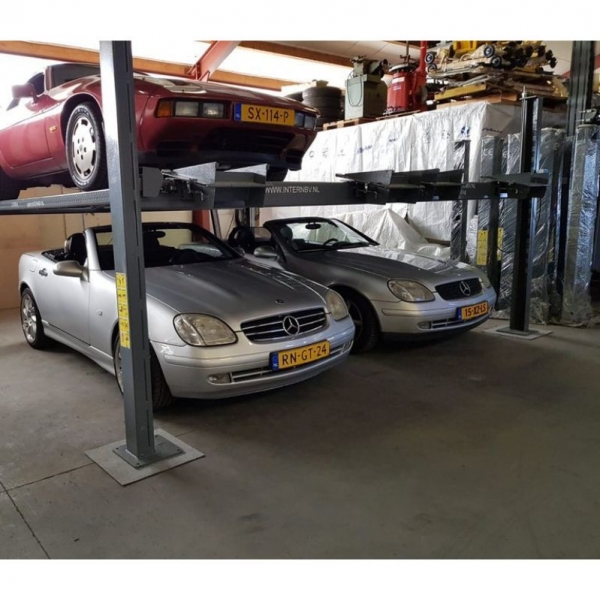

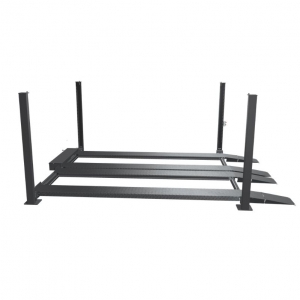

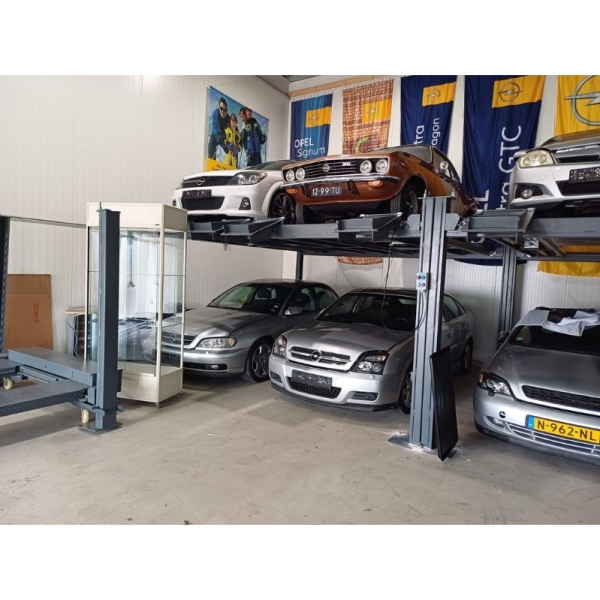

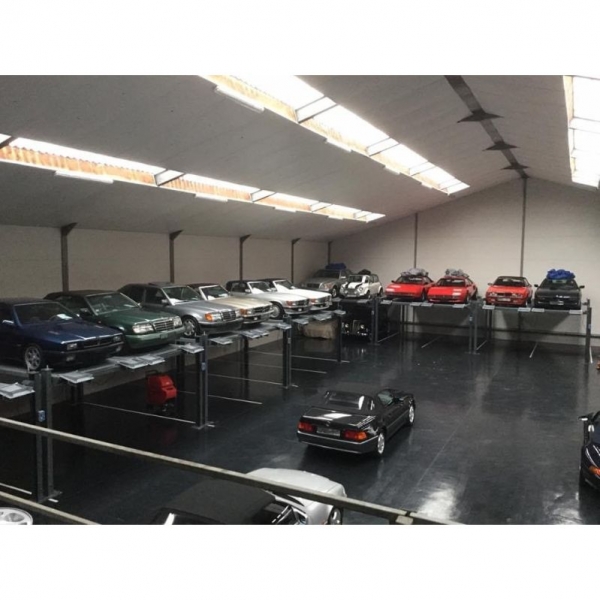

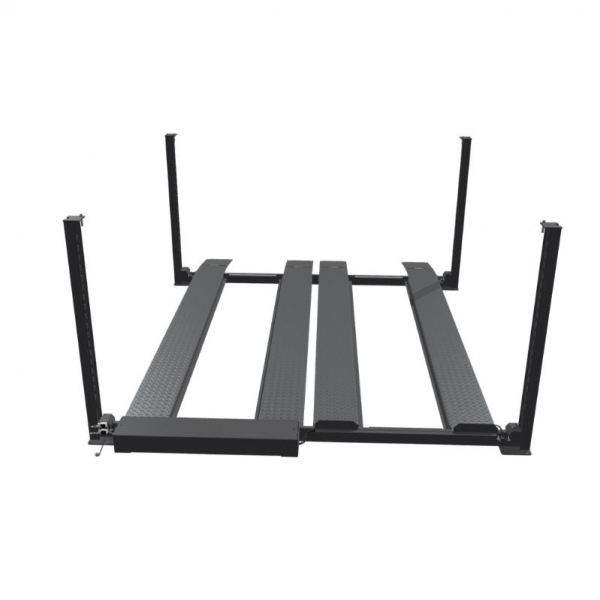

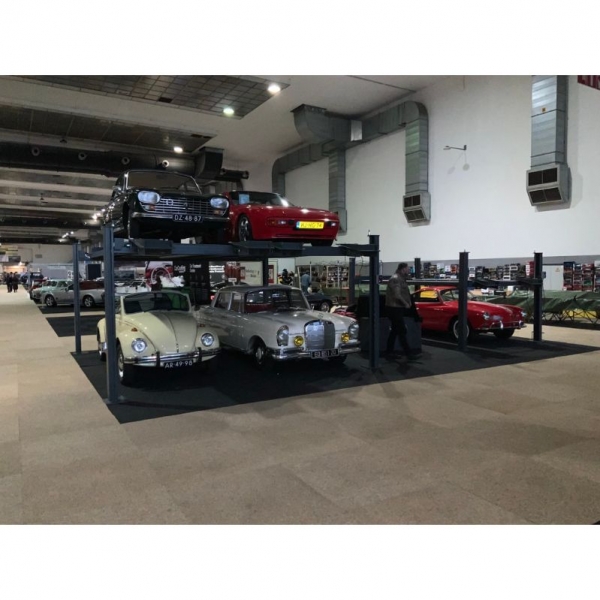

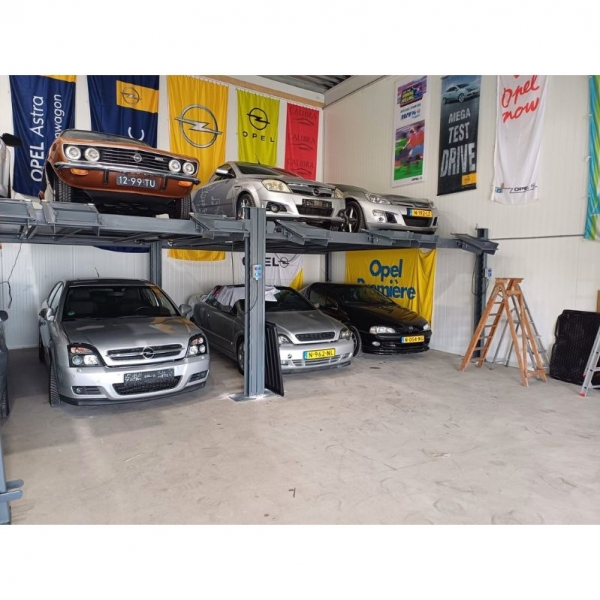

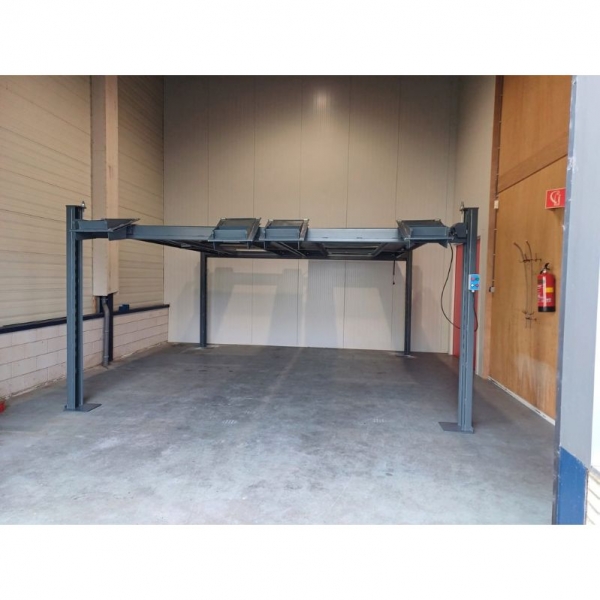

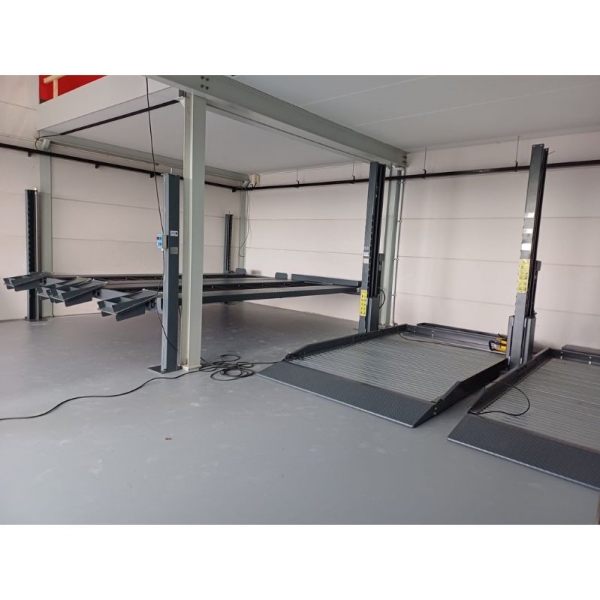

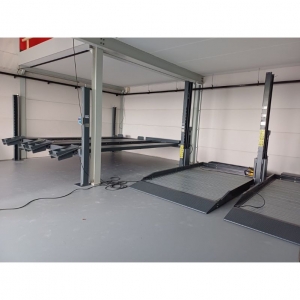

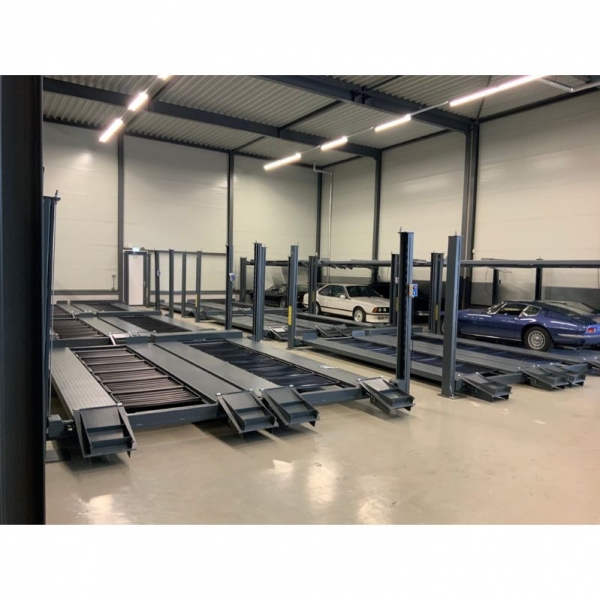

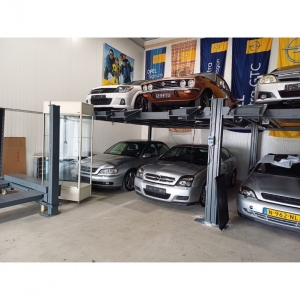

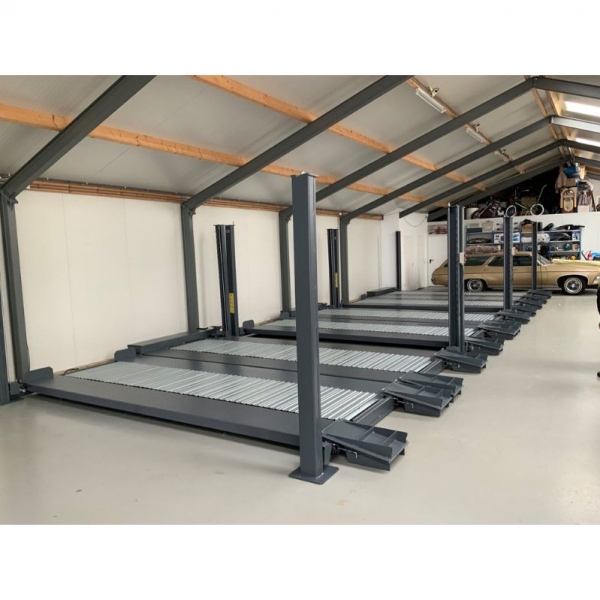

The four-post, four-car parking lift is a reliable and highly compact solution for parking four vehicles one above the other. It is ideal for long-term storage, for example, during the winter season. This model has been extremely popular for more than 10 years, with its quality proven by thousands of users. To lower the platform with two cars, the two lower cars must first be removed. The lift operates electro-hydraulically, features all essential safety functions, and is controlled via push buttons on the control box.

Features:

• Enables creation of 4 dependent parking spaces in the same footprint
• Compact total width – only 4550 mm

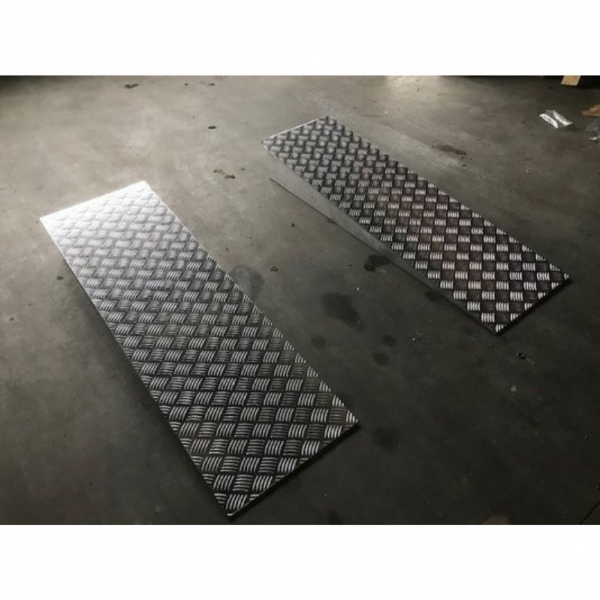

• Low-profile entry ramps – for smooth and easy access
• Fast lifting using a powerful hydraulic cylinder

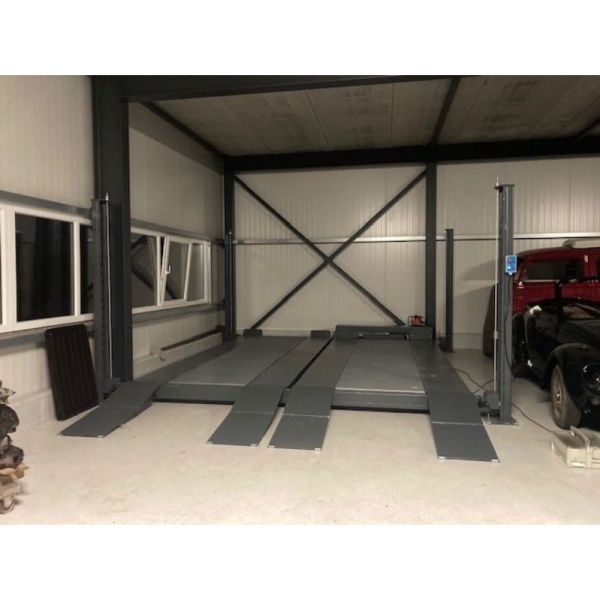

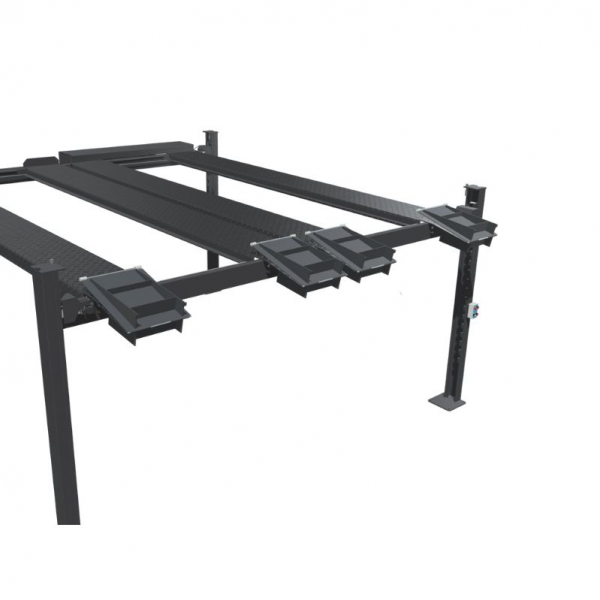

• Folding ramps

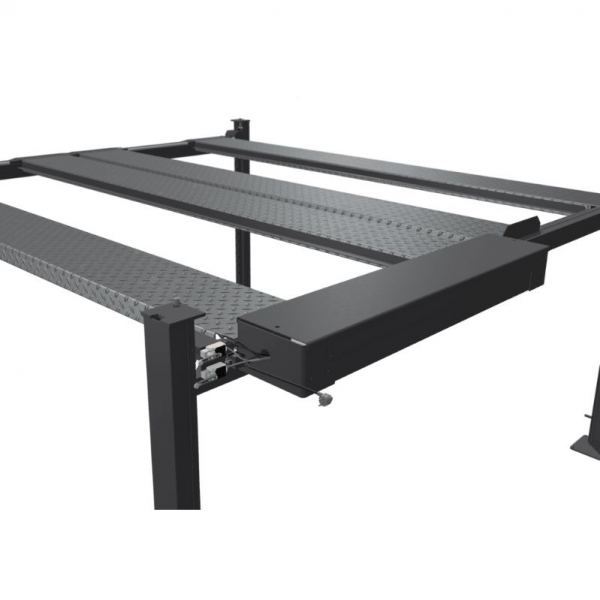

• Electric motor can be mounted at the rear or side

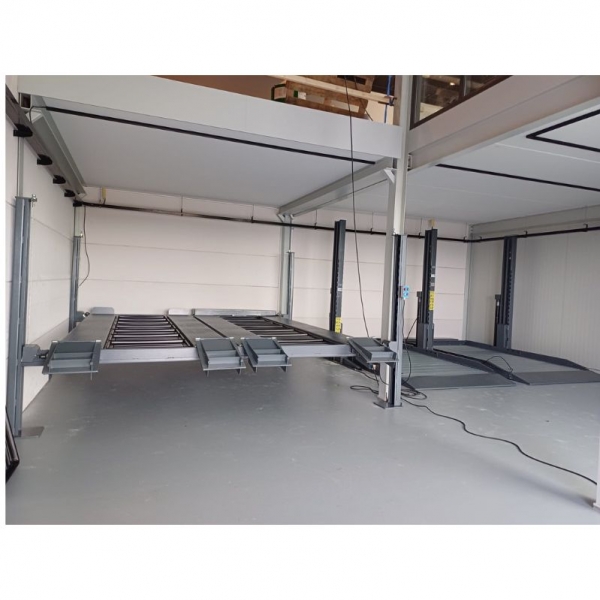

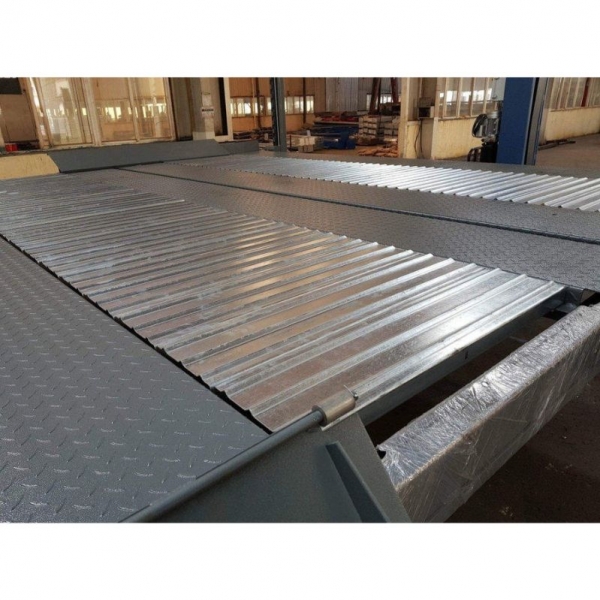

• Optional closed metal loading platform available

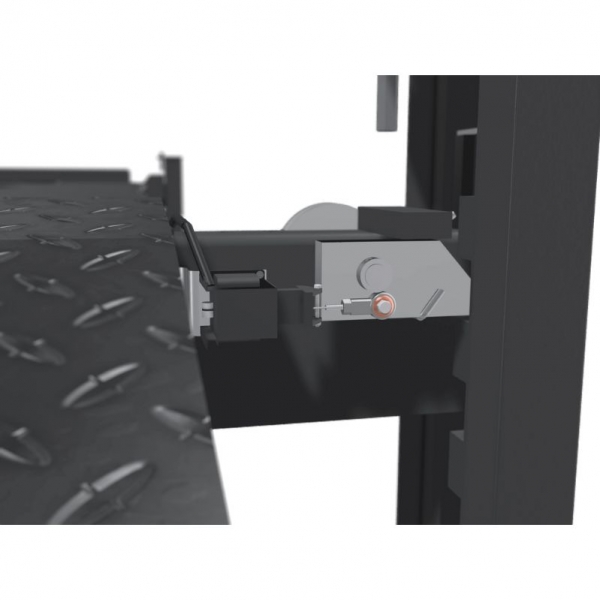

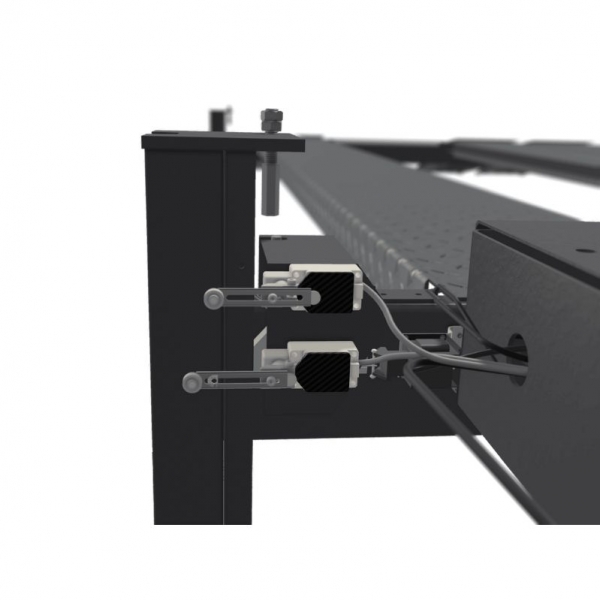

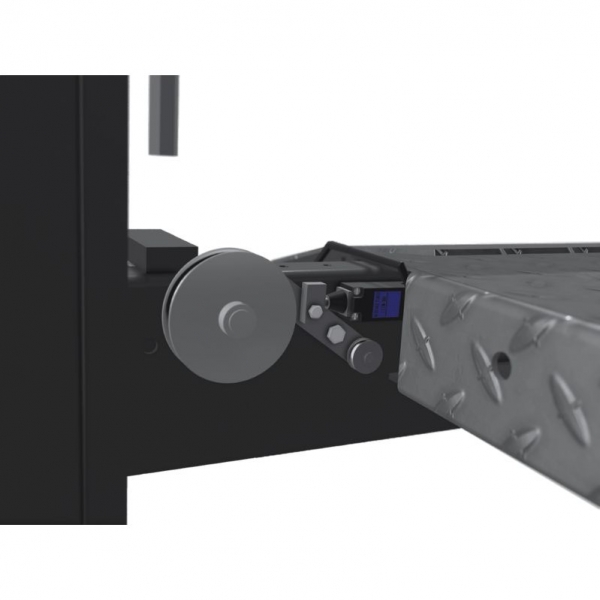

• Automatic dynamic safety locks
• 24 V control voltage – for safe operation
• High-quality powder-coated finish – corrosion protection
• CE compliant – approved for use throughout the EU

Technical Specifications:

• Lifting capacity: 4500 kg
• Lifting height: 2100 mm
• Track width (outer): 1900 mm
• Drive-through width: 4275 mm
• Maximum external width: 4550 mm
• Clearance height under platform: 1950 mm
• Suitable for: sedans and SUVs
• Power: 2.2 kW
• Voltage: 230 V, 50 Hz, single-phase
• Control: control box with push buttons
• Control voltage: 24 V
• Lock type: dynamic, automatic
• Lifting speed: < 55 seconds
• Surface finish: powder coating

Is Your Garage Ceiling High Enough to Stack Two Cars?

• This table will help you determine if your garage ceiling is high enough to stack two cars using a parking lift. Depending on the height of the bottom car, a fixed clearance value is added. Add the height of the top car to this value to determine the minimum required ceiling height:

Bottom Car Height Added Clearance     Minimum Required Ceiling Height

88 – 98 cm                       118 cm             118 cm + height of top car

98 – 108 cm                       128 cm             128 cm + height of top car

108 – 118 cm               138 cm             138 cm + height of top car

118 – 128 cm               148 cm             148 cm + height of top car

128 – 138 cm               158 cm             158 cm + height of top car

138 – 148 cm               168 cm             168 cm + height of top car

148 – 158 cm               178 cm             178 cm + height of top car

158 – 168 cm               188 cm             188 cm + height of top car

168 – 178 cm               198 cm             198 cm + height of top car

178 – 188 cm               208 cm             208 cm + height of top car

188 – 198 cm               218 cm             218 cm + height of top car
