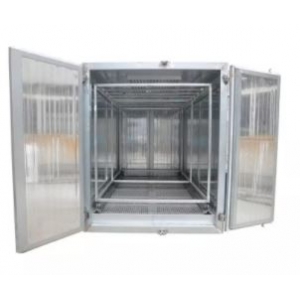

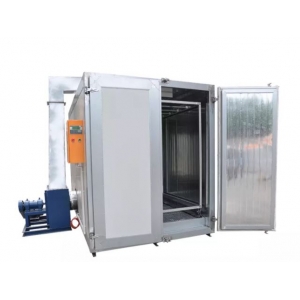

Large electric powder coating furnace COLO 1645

Large Electric Powder Coating Oven COLO 1645

Country of origin: China, warranty period – 24 months.

The large electric powder coating oven COLO 1645 is a 4.5-meter-long curing oven designed for powder coating large-sized parts or substantial batches of smaller components. The electric heating system ensures lower operating and maintenance costs while maintaining a cleaner working environment. COLO ovens are made with high-quality components, providing fast and even heating.

Features:

• The PLC control unit allows precise temperature and heating time adjustments.
• 100 mm thick rock wool insulation maintains stable temperature (<3°C deviation).
• A high-performance fan ensures uniform hot air circulation in all corners of the oven.

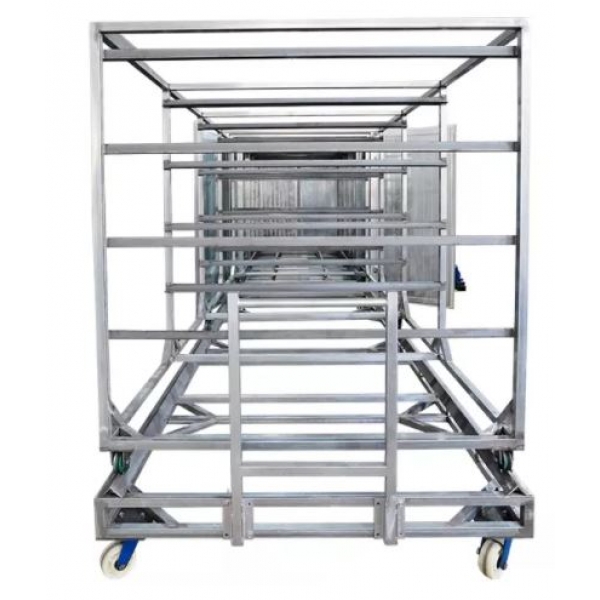

• Dual trolleys (upper and lower) prevent internal contamination and facilitate the easy transport of heavy items.
• The oven is built with highly efficient electric heating elements for rapid temperature rise.
• Size options are available from standard models, with customization possible to meet specific requirements.

Technical specifications:

• Voltage: 380 V / 220 V
• Frequency: 50-60 Hz
• Heating time: 15-30 min (180°C)
• Temperature stability: <± 3-5°C
• Maximum temperature: 250°C
• Ventilation efficiency: 1131-2565 m³/h
• Motor power: 3 kW
• Air circulation/flow: Vertical through wall vents
• Working dimensions: Width 1500 mm, Height 1650 mm, Depth 4500 mm
• Overall dimensions: Width 1800 mm, Height 2050 mm, Depth 4800 mm
