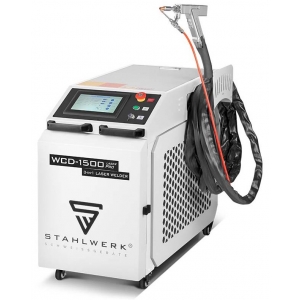

Laser welding device WCD-1500 Laser Pro

Laser Welding Device WCD-1500 Laser Pro

Functions:

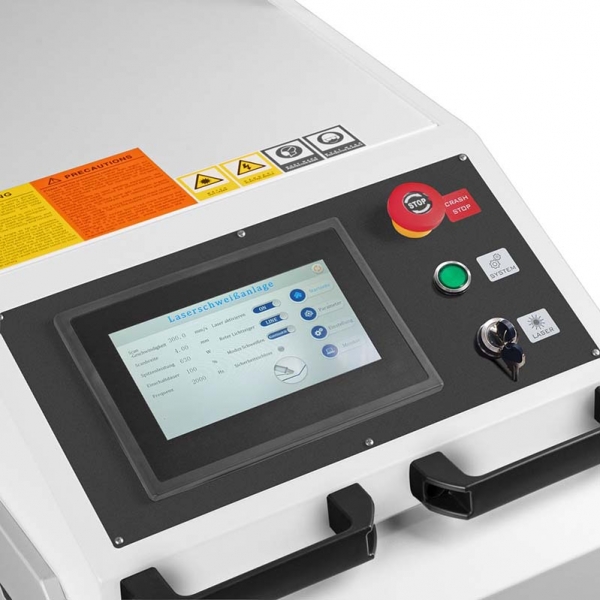

• Clear control screen for quick setting selection

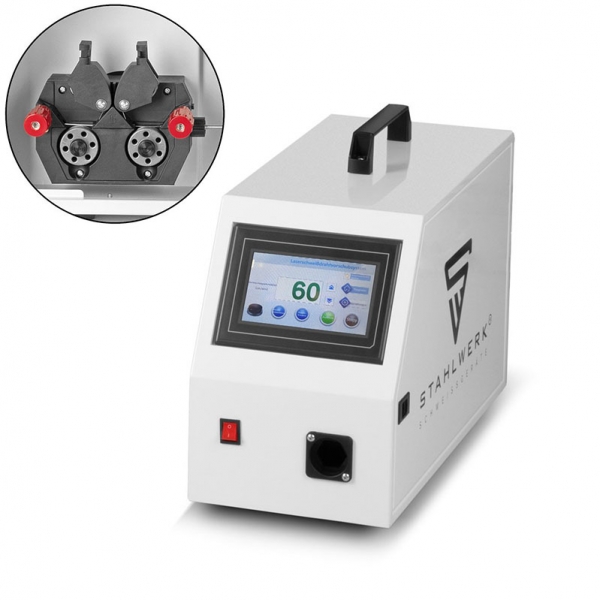

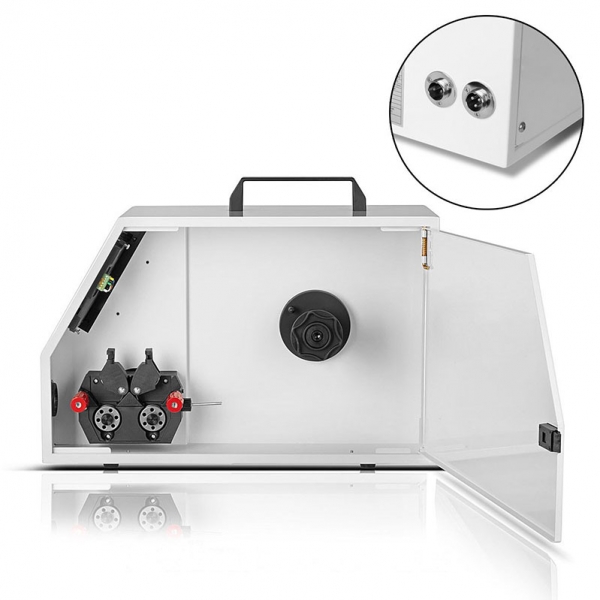

• Synergic wire feeding mechanism with 4 rollers
• Memory function for settings
• Intelligent cooling and overheating protection

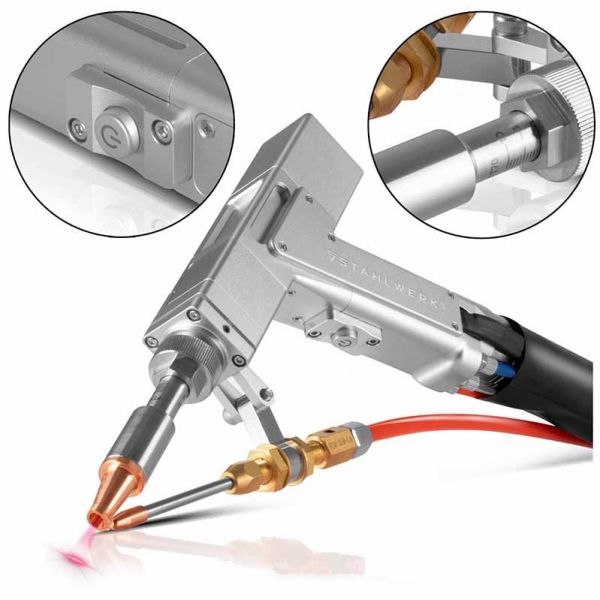

• Ergonomically shaped laser torch for comfortable long-term use
• Adjustable cleaning modes from 10 to 20 mm
• Suitable for cutting: metal up to 4 mm, aluminum up to 3 mm
• Ideal for use in industry, workshops, and trade
• Comprehensive accessory set included

Technical specifications:

• Model: WCD-1500 Laser Pro
• Laser type: fiber
• Laser class: 4
• Power output: 1500 W
• Power supply: 230 V
• Frequency: 50 | 60 Hz
• Wavelength: 1080 nm ± 3 nm
• Maximum cutting depth: stainless steel 4 mm, metal 4 mm, aluminum 3 mm
• Cleaning modes: 10–20 mm

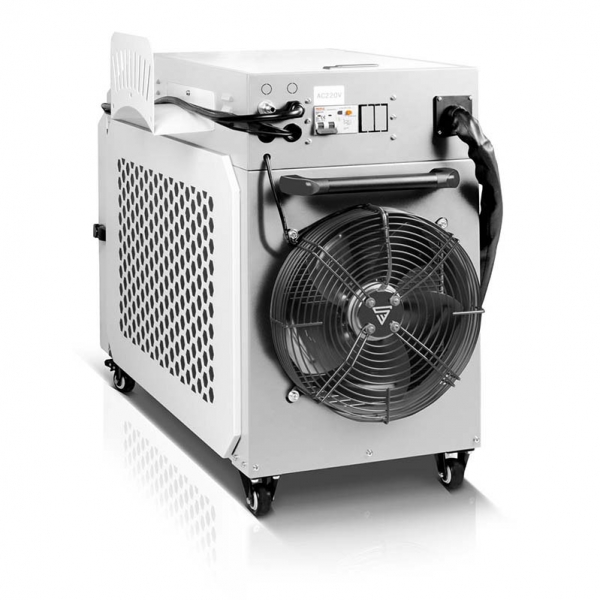

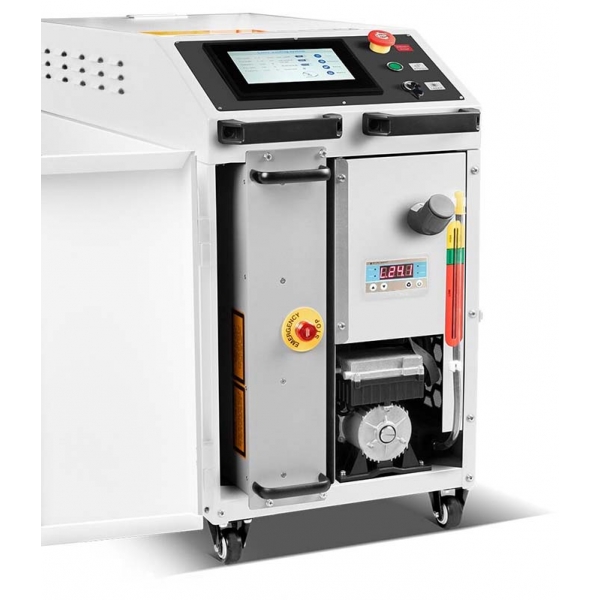

• Cooling system: 1500 W water cooler
• Wire feeding rollers: 0.8 / 1.0 / 1.2 / 1.6 mm
• Hose length: 10 mm
• Operating temperature: 10 °C – 40 °C
• Dimensions: 980 x 420 x 712 mm
• Weight: 115 kg
• Wire holder: 50 mm core

Scope of delivery:

• Laser welding device WCD-1500 Laser Pro

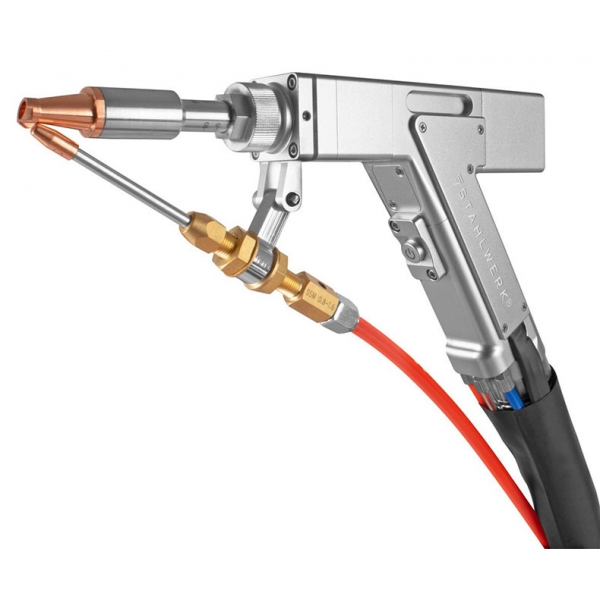

• Laser welding torch
• Contact tips: 0.8; 1.0; 1.2; 1.6 mm (1.2 mm pre-installed)

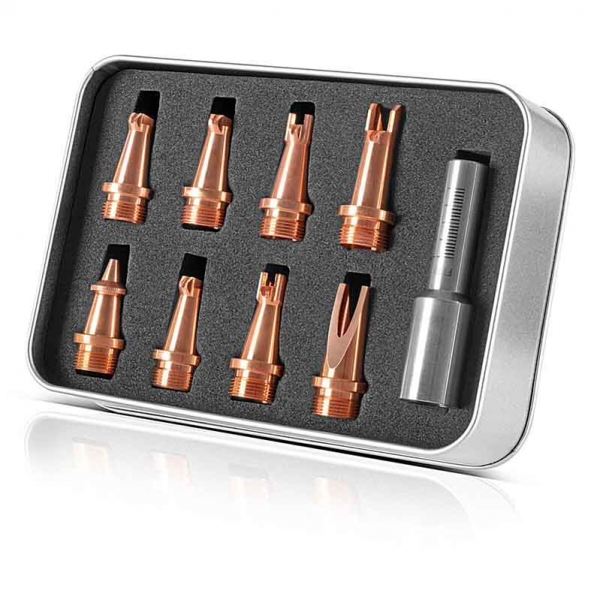

• Set of 9 special nozzles

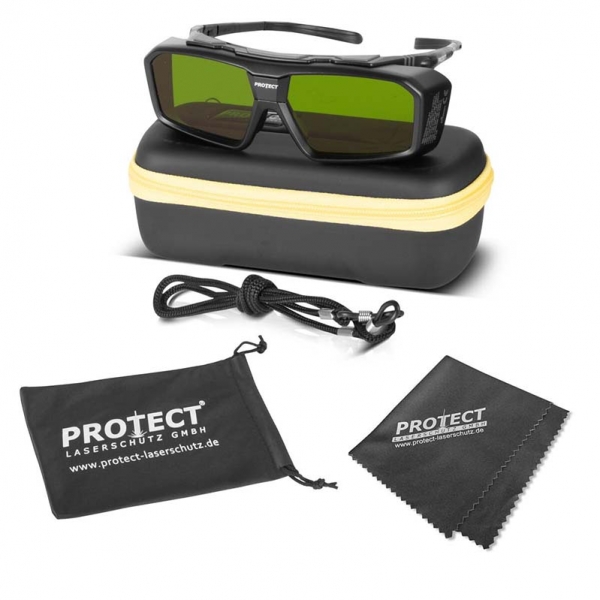

• Protective glasses
• Wire feeding rollers: 0.8; 1.0; 1.2; 1.6 mm
• 5 pairs of replacement lenses x 2 pcs
• Gas connection hose
• 2 pcs wrenches
• 3 m carbon fiber core

Attention!

• We do not recommend using the device in residential premises where the electricity is supplied from a public low-voltage power system. It may be difficult to ensure electromagnetic compatibility in such environments, both in terms of electrical conductivity and laser beam interference.
