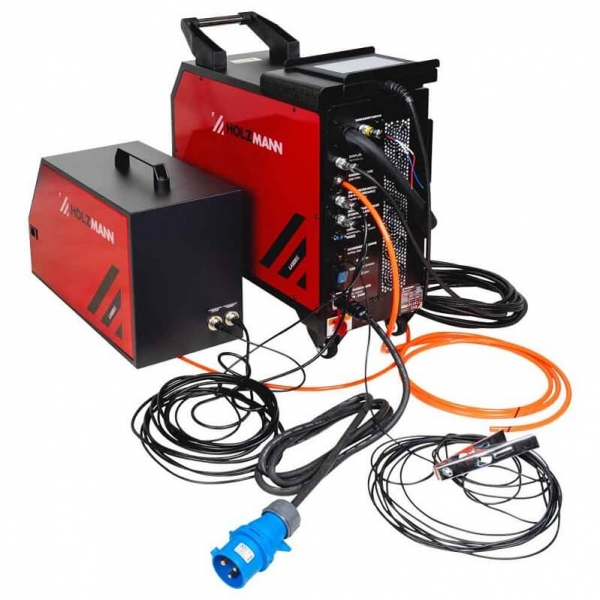

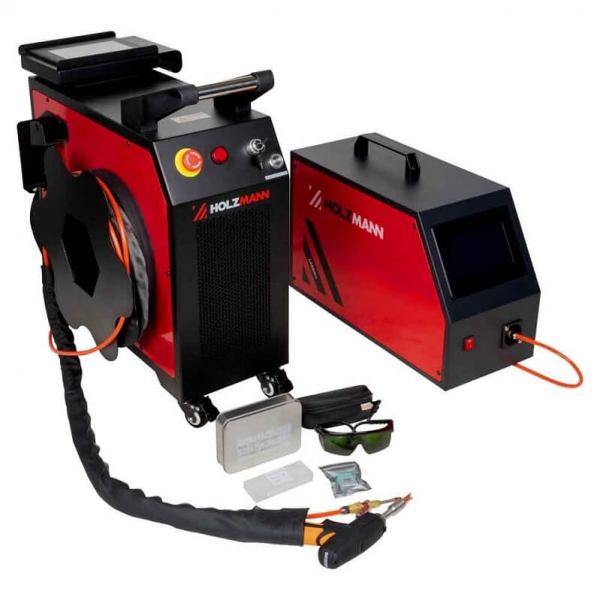

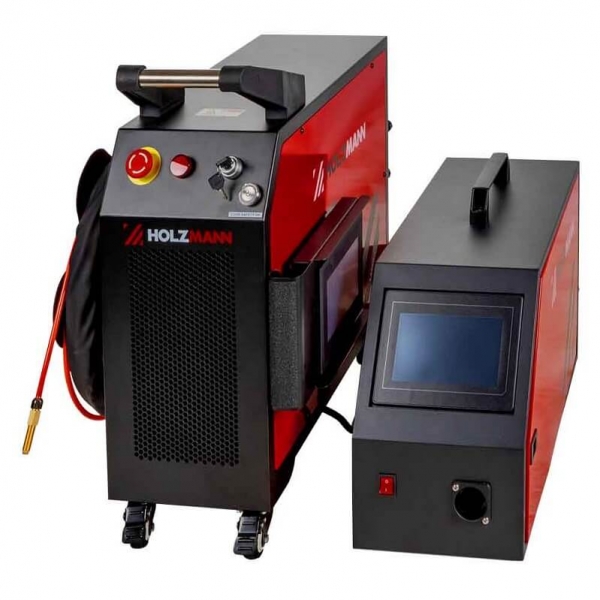

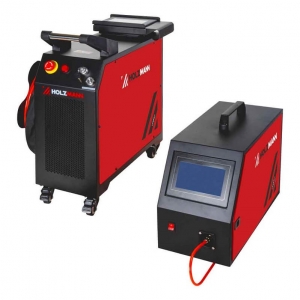

Laser welding machine 230V LASER15 HOLZMANN

Laser Welding Machine 230V LASER15 HOLZMANN

Functions:

• Air-cooled laser – simple maintenance and mobility without a water system
• Three processes in one – welding, cutting, and rust removal
• High beam quality M2 < 1.2 – clean weld seam and smaller heat-affected zone
• Stable wavelength 1080 nm ±5 nm – optimal for metalworking
• Integrated wire feed 0–7.2 m/min – consistent weld seam filling
• Laser cutting of materials up to 3.0 mm thick
• Laser welding of materials up to 3 mm thick
• Convenient control screen – quick mode and parameter adjustments

Technical specifications:

• Laser class: 4
• Laser power: 1.5 kW
• Wavelength: 1080 nm ±5 nm
• Beam quality: M2 < 1.2
• Wire feed power: 60 W
• Welding wire diameters: Ø0.8 / 1.0 / 1.2 / 1.6 mm
• Wire feed speed: 0–7.2 m/min
• Maximum cutting thickness: 3.0 mm
• Maximum welding thickness: 3 mm
• Input voltage: 230 V (50–60 Hz)
• Input power capacity: 3.8 kVA
• Net weight: 51.6 kg
• Gross weight: 82 kg
• Package length: 790 mm
• Package width: 430 mm
• Package height: 970 mm

Scope of delivery:

• Lens set
• Safety goggles
• Gas hose
• Nozzle set
• Ground (negative) cable
• Wire feed unit
• Laser gun
• Wire feed nozzles
• Wire guide rollers
