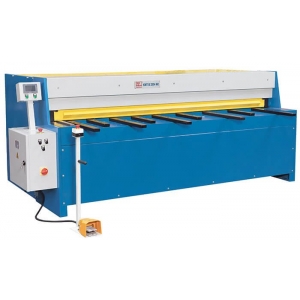

Metal cutting guillotine, Knuth KTM B 1304 NC

Metal cutting guillotine, Knuth KTM B 1304 NC

Manufacturer: Knuth, Germany

The KMT B NC series guillotine has a powerful and motorized main drive, which allows you to achieve high-quality cutting results, even when the metal thickness reaches 4 mm. Also, this guillotine carefully cuts even thin sheets of scrap, thanks to the holding arms included in the standard package. The cutting length is determined using the NC controller. A very stable design with adjustable cutting blades and a robust gauge installed on the rear side of the guillotine, meets all the standards set in small-scale production.

• Strong welding of steel parts
• The PLC meter is controlled using a 4.3" touch screen
• The rear support gauge uses servo-motors
• Clippers can be reversed and reused
• Pneumatic sheet holding devices

More detailed description:

• Device frame and drive system
• The frame of the guillotine is made of strong steel, which is carefully and qualitatively welded. And the welding seams are treated with stress-reducing methods.

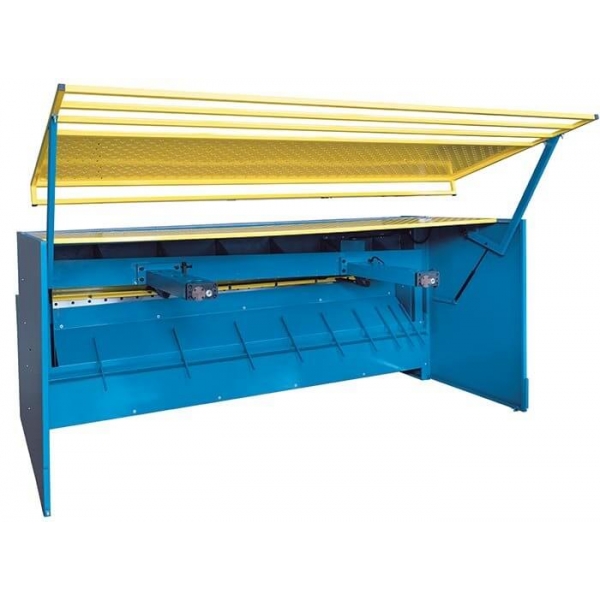

• Automatic locking of cut sheets ensures a stable position of the plate during cutting.
• Double-sided lower and upper cutting blades, can be turned and reused.

Additional support:

• Hard side support, facilitates the alignment of the panel with the cutting line.

Performance and ergonomics:

• The PLC meter controller has a 4.3" touch screen that displays an easy-to-understand graphical interface that can be programmed/adjusted quickly and easily.
• A mobile controller allows the guillotine to be operated with a foot switch, so that the operator's hands are not occupied.

Rear Gauge:

• The rear gauge uses servo-motors, which significantly improve positioning and accuracy parameters.
• The sheet holding mechanism ensures that no panel slips past the back gauge during cutting, ensuring maximum precision and quality, for every cut, even with extremely thin sheets.

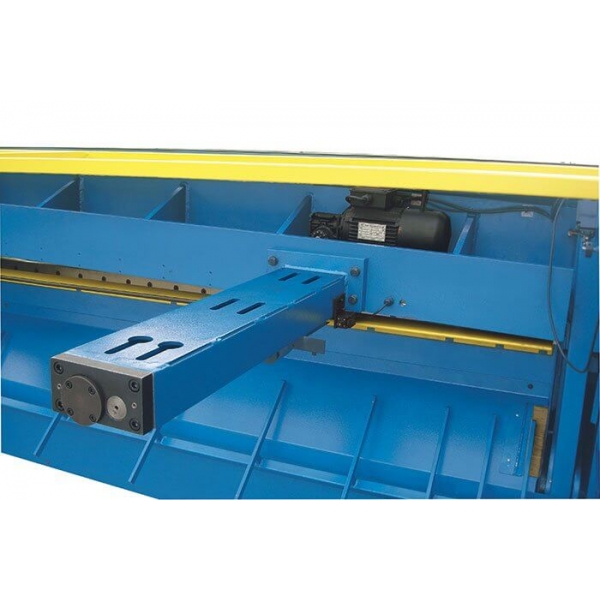

• The holding arms are controlled by means of pneumatic cylinders and are lowered synchronously with the cutting process.

Technical parameters:

• Structural steel plate thickness: 0.8 - 4 mm
• Working length: 1300 mm
• Cutting angle: 2.4°
• Strokes per minute (automatic mode): 30 H/min
• Knife length: 1353 mm
• Work table height: 830 mm

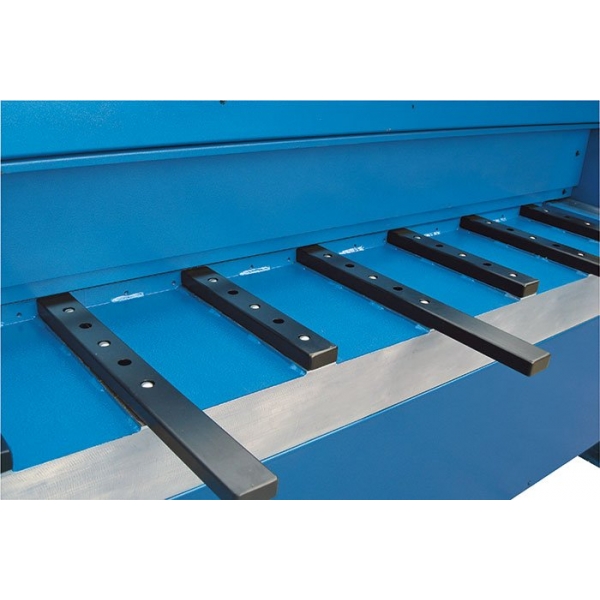

• Supporting arms: 600 mm
• Number of support arms: 5 positions
• Rear stop: 630 mm
• Motor rating main drive: 4 kW
• Overall dimensions: 1750 x 1820 x 1190 mm (L x W x H)
• Weight: 1355 kg

Standard equipment:

• PLC control
• Workplace lighting
• Safety guard with power off after open door
• Back gauge with 4.3" touchscreen
• Foot pedal
• Cutting line lighting
• Squaring arm
• Support arms with material support balls
• Powered rear stop
• Hold-down
• Pneumatic sheet support
• Protective cover
• Operator's instructions
