Milling machine, Knuth MF 1 VP

Milling machine, Knuth MF 1 VP

Manufacturer: Knuth, Germany

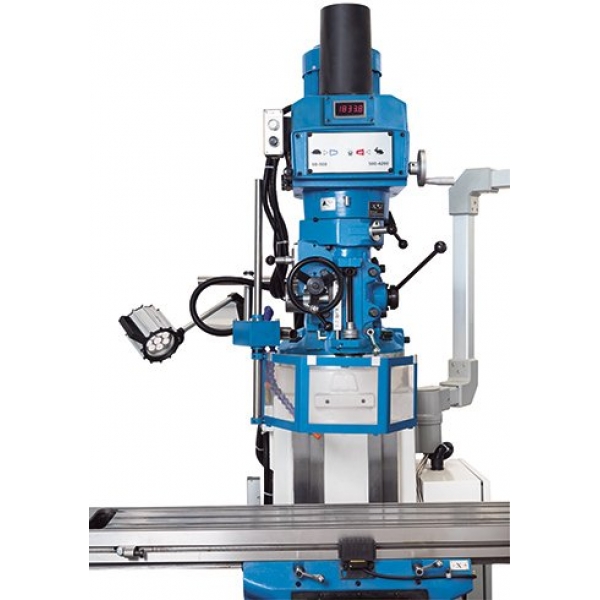

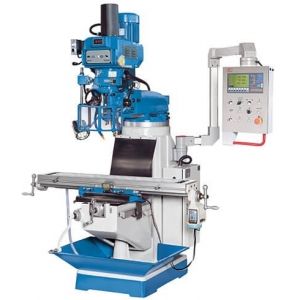

The multifunctional milling machine Knuth MF 1 VP is attractive in its design and irreplaceable in many repair workshops, training and production areas. The X-axis workpiece feed can be adjusted steplessly, and the vertical milling head has the ability to adjust its tilt angle and a wide, stepless adjustment of the rotation speed, adapting to a variety of workpieces, from steel to non-ferrous metals. The standard equipment of this machine includes automatic pen feeding, pneumatic fixing of parts and fixed position indicator.

• Swiveling, tiltable cutter head with quill feed
• Pneumatic tool tightening system
• Infinitely variable spindle speed
• Feed on X-axis with rapid feed
• Extensive standard equipment

More detailed description:

• Larger table with more X-axis travel

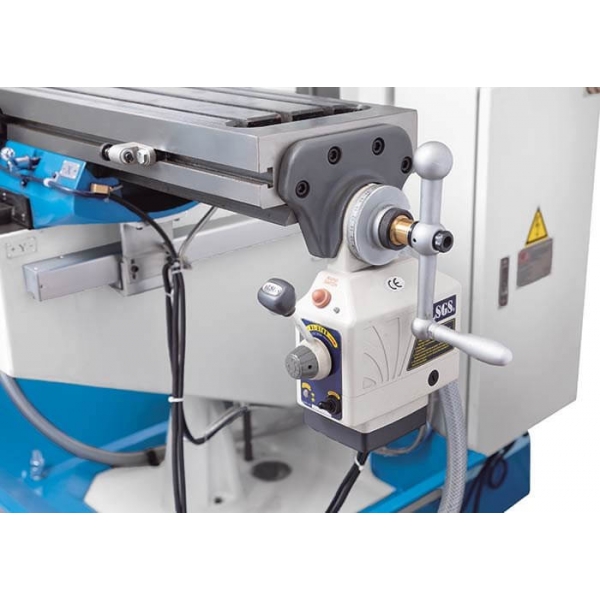

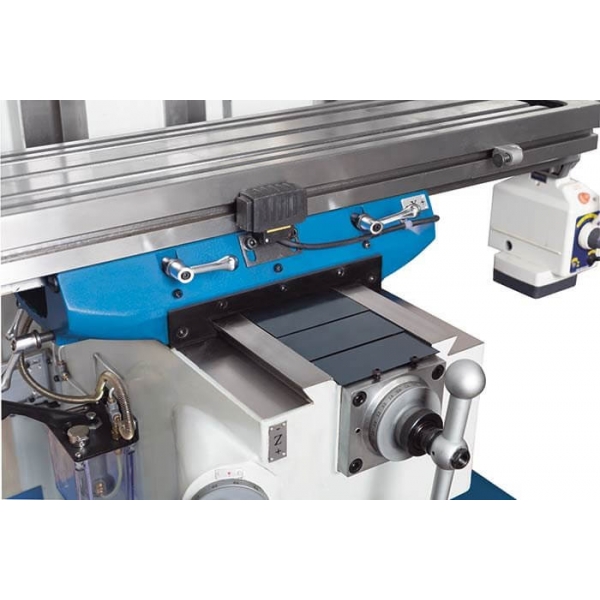

• Equipped with TV 1000 automatic table transfer on the X axis, possible modification of the Y axis

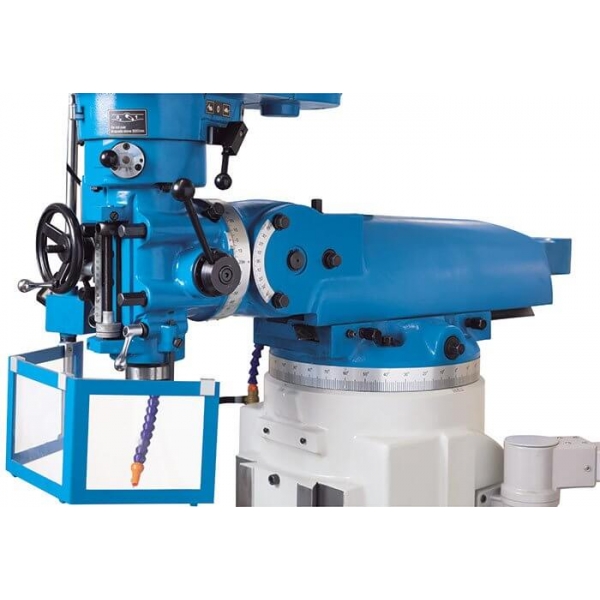

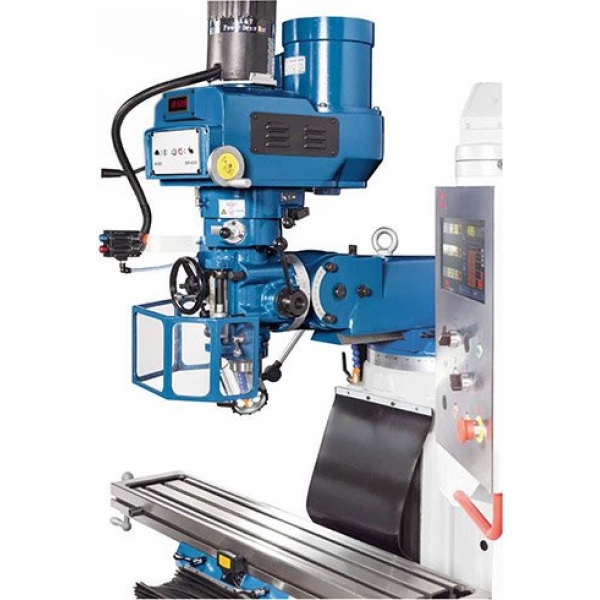

• Milling head, can be tilted in 3 directions: left + right rotation: +/- 90°; forward + backward tilt: +/- 45°; rotation on column: +/- 45°
• Guide tracks, packaged and adjustable positions
• 3 automatic feeds for milling
• Manual rough feed with option to change to smooth manual feed
• The pen has a built-in automatic depth measuring device with micrometer accuracy.
• Reverse rotation switch, change direction of milling rotation

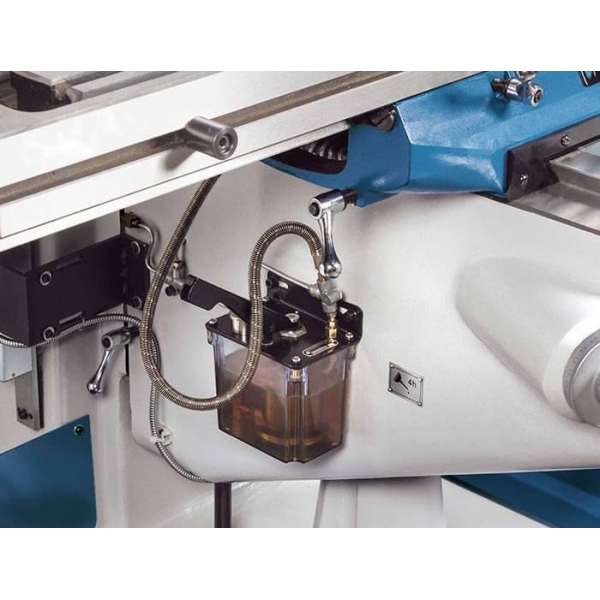

• A central lubrication system that lubricates the main shaft, screws and rails
• Manual spindle brake

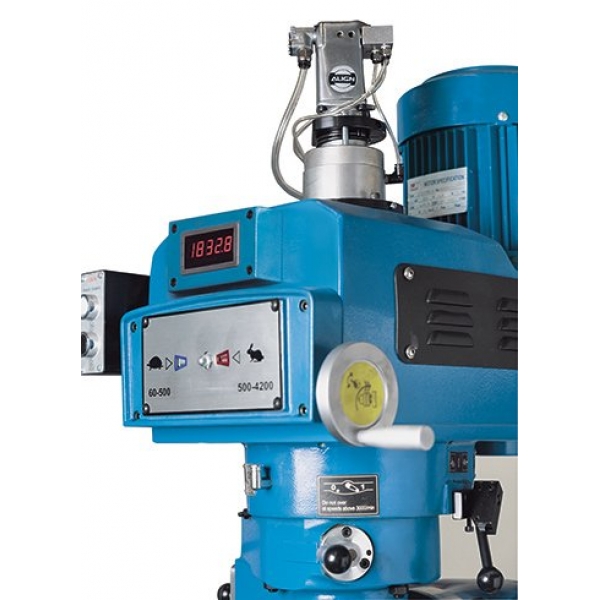

• Pneumatic clamping of tools

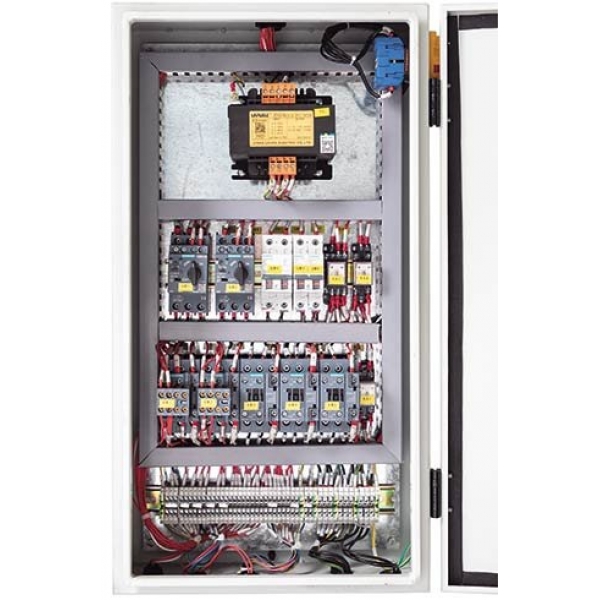

• A 3-axis position indicator, a cooling system and an LED workplace lighting system are included in the standard equipment of the machine
• 3 axis position indicator:
• Greater accuracy
• Less chance of errors
• Increased productivity
• Saving important time
• Easy to understand display
• Operator specific functions
• Convenient keyboard layout
• Resolution: 0.01 / 0.005 mm
• Default coordinates
• Axis positions remain even when the display is turned off
• Calculation of the circular modulus of the hole
• Calculator function
• Parts storage for up to 10 tools
• Choice between radius and area, readings
• Choice between mm / inch measurement units
• Easy replenishment of the assortment and maintenance-free operations

Technical parameters:

• Table set up area: 1245 x 230 mm
• Number of T - slots: 3 positions
• T - slot, width and spacing: 16 x 63.5 mm
• Travel, X-axis: 760 mm
• Travel, Y axis: 290 mm
• Travel, Z-axis: 370 mm
• Spindle speed: 60 1/min - 4200 1/min
• Quill stroke: 127 mm
• Spindle mount: ISO 30
• Throat: 171 – 476 mm
• Quill feeds: (3) 0.04; 0.08; 0.13 mm/R
• Feed speed, X-axis: 19 mm/min - 890 mm/min
• Console travel, Z-axis: 370 mm
• Motor rating main drive: 2.25 kW
• Overall dimensions: 2050 x 1630 x 2070 mm (length x width x height)
• Weight: 950 kg

Standard equipment:

• 3 axis position indicator X.Pos 3.2
• Working tools
• Cooling System
• Pneumatic clamping of tools
• Vertical guideway cover
• Central lubrication system
• LED workplace lighting
• Automatic table feed in X axis, TV 1000
• Operator's manual
