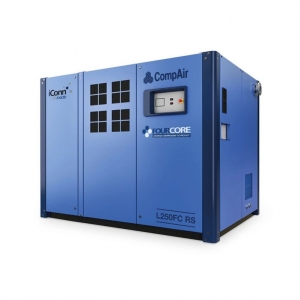

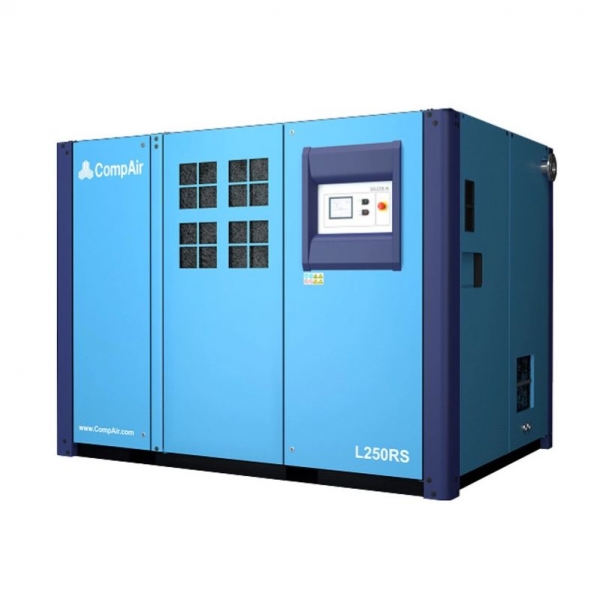

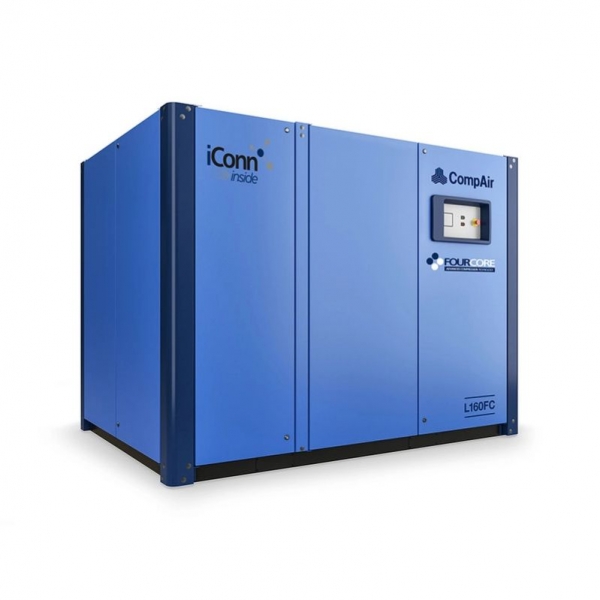

Oil-lubricated fixed-speed rotary screw air compressor L160 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L160 CompAir

Country of origin: Germany, warranty period – 24 months

CompAir L160 is a 160 kW high-performance industrial compressor designed for continuous operation in manufacturing, processing, and other heavy-duty applications. Its reliable single-stage design with an optimized air path ensures high efficiency, low pressure losses, and stable operation even at maximum loads. The equipment meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Airends carry a free warranty of 10 years or 44,000 hours.

Functions:

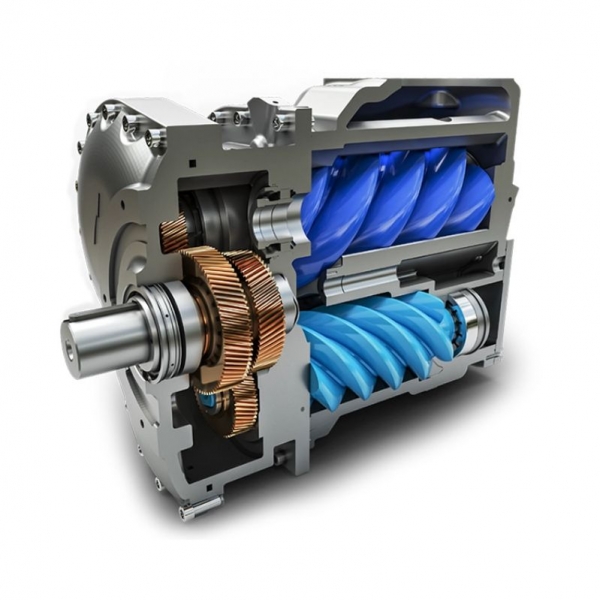

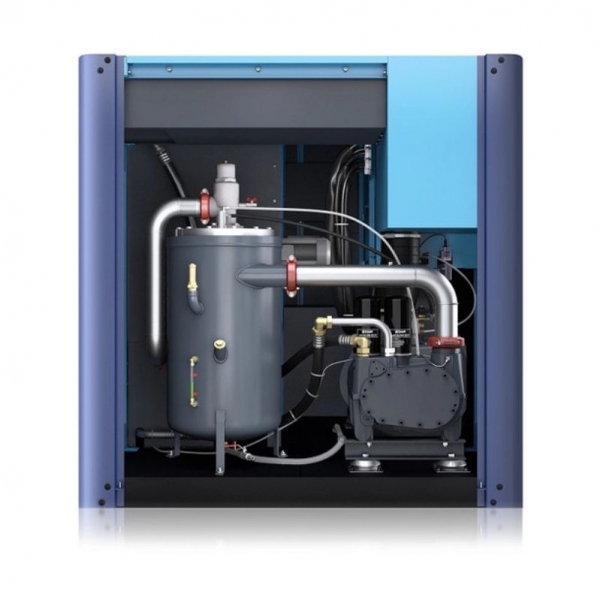

• Semi-integrated in-house screw airend with oil separation, filter, and thermostatic control for fewer connections, higher reliability, and easier maintenance
• Large-surface aftercooler and high-capacity cooling for low operating and discharge air temperatures and longer component life
• Fine oil separation filter for consistent performance throughout the service life, with oil carryover in air typically below 3 ppm
• High-efficiency electric motor for reduced energy consumption and reliable starts
• New-generation radial cooling fan for lower noise and more efficient heat removal
• Easy service access via hinged doors, quick-release panels, and optimized filters and separators
• Delcos XL touch controller with clear home screen, trend graphs, real-time clock, start/stop, second pressure setting, fault history, auto-restart after power failure, remote control inputs, and SD card data logging
• Iconn remote monitoring capability providing real-time data, alerts, and analytics to prevent downtime
• SMARTair master compressor management for multi-compressor sequencing, stable pressure, and energy savings

Technical specifications:

• Motor power 160 kW
• Noise level 76 dB(A)
• Dimensions (L x W x H) 2949 x 2111 x 2193 mm
• Weight 4186 kg
• Controller Delcos XL, SD logging, remote control inputs, automatic restart after power failure
• Remote monitoring Iconn
• System integration SMARTair master

Nominal pressure and air delivery (FAD):

• 7.5 bar – 32,040 l/min
• 10 bar – 28,200 l/min
• 13 bar – 23,910 l/min

Choose CompAir L160 – a powerful and efficient 160 kW screw compressor that will ensure a reliable supply of compressed air, help save energy, and serve your company dependably for many years.
