Oil-lubricated fixed-speed rotary screw air compressor L18 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L18 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L18 is a compact and quiet 18.5 kW fixed-speed screw compressor designed for continuous operation in industry, manufacturing, and workshops. The monoblock screw airend operates at lower speeds, reducing energy consumption and increasing service life. The model is available as a base unit, receiver-mounted, or AIRSTATION version with an integrated refrigerated dryer and a 500 l receiver. It meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

• Monoblock screw airend with integrated oil separator, oil filter, and thermostatic valve – fewer hoses, higher reliability
• Combined air/oil cooler with bypass – fast warm-up, controlled oil temperature, and low discharge air temperature
• High-efficiency IE3 electric motor – lower energy consumption
• Automatic drive belt tensioning system – precise tension and longer belt life
• Factory-filled lubricant – oil change interval up to 4000 hours
• Delcos Pro SE controller with 2.8" graphic display, start/stop timer, remote start/stop, auto-restart after power loss, second pressure setting, and fault log
• Connectivity: RS485 (Modbus RTU), Micro-SD data logging, integrated BLS and Web-Server Light; optional Ethernet module
• Iconn remote monitoring capability – real-time parameter tracking, alerts, and data analytics
• SMARTair master compressor control system – multi-compressor sequencing, pressure stability, and energy savings
• German engineering quality standard – reliability and durability
• Low noise level – can be installed close to the point of use
• Reliable operation up to 45 °C ambient temperature

Configuration:

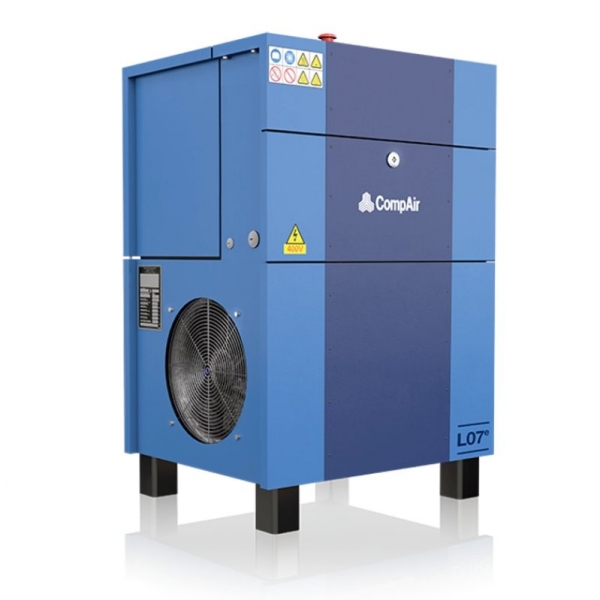

• Base version: dimensions 787 x 698 x 1202 mm; weight 361 kg

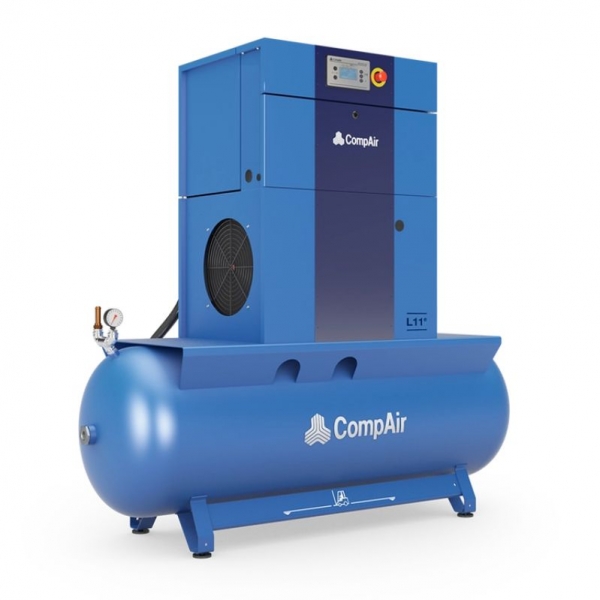

• Receiver-mounted version: receiver 500 l; air outlet RP 1"; dimensions 1883 x 815 x 1825 mm; weight approx. 577 kg

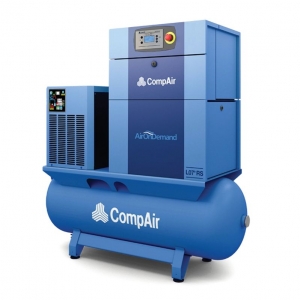

• AIRSTATION version: integrated refrigerated dryer; receiver 500 l; air outlet RP 1"; dimensions 1883 x 815 x 1825 mm; weight approx. 625 kg

Technical specifications:

• Motor power: 18.5 kW
• Nominal pressure: 7.5 / 10 / 13 bar
• Air delivery (FAD): 3250 l/min at 7.5 bar; 2740 l/min at 10 bar; 2340 l/min at 13 bar
• Noise level: 71 dB(A)
• Controller: Delcos Pro SE, RS485 (Modbus RTU), Micro-SD logging, integrated BLS and Web-Server Light; optional Ethernet
• Oil change interval: up to 4000 hours
• Cooling: combined air/oil cooler with bypass
• Drive belt: automatic tensioning
• Ambient temperature: reliable operation up to 45 °C

Choose CompAir L18 – a powerful, efficient, and reliable oil-lubricated screw compressor that will reduce operating costs, save space, and ensure a long-lasting, stable supply of compressed air for your company.
