Oil-lubricated fixed-speed rotary screw air compressor L200 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L200 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L200 is a 200 kW high-performance industrial compressor designed for continuous operation in manufacturing, processing, and other heavy-duty applications. Its reliable single-stage design with an optimized air path ensures high efficiency, low pressure losses, and stable operation even at maximum loads. The equipment meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

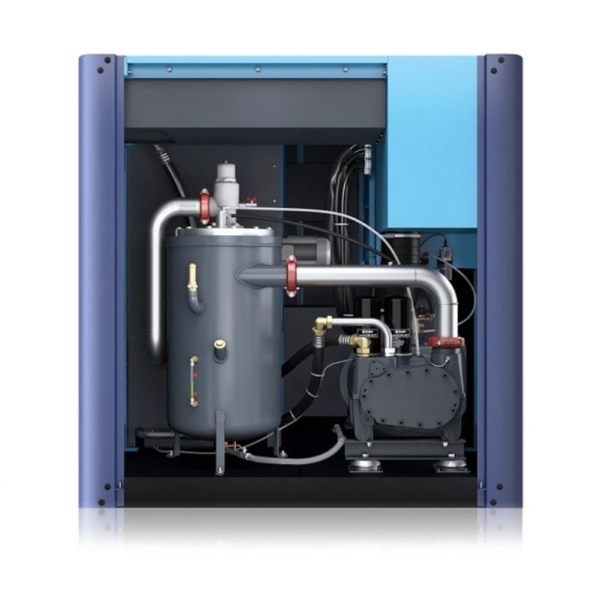

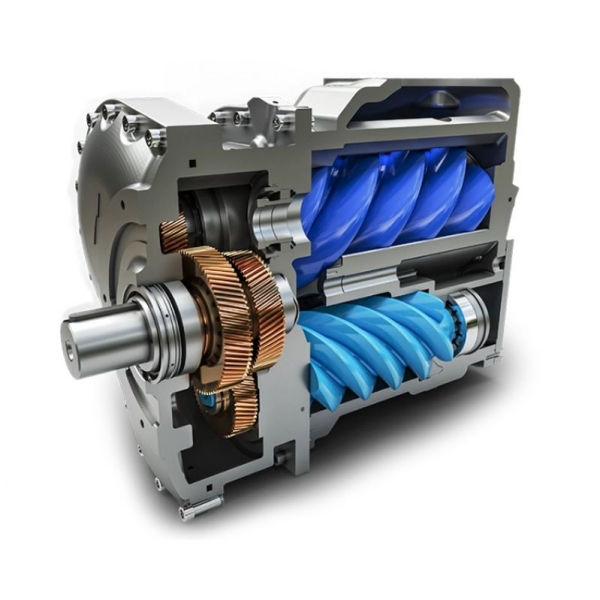

• Semi-integrated in-house screw airend with oil separation, filter, and thermostatic control – fewer connections, higher reliability, and easier maintenance
• Large-surface aftercooler and high-capacity cooling – low operating and discharge air temperatures and longer component service life
• Fine oil separation filter – consistent performance throughout the service life, with oil carryover in air typically below 3 ppm
• High-efficiency electric motor – reduced energy consumption and reliable starts
• Next-generation radial cooling fan – lower noise level and more efficient heat removal
• Convenient service access: hinged doors, quick-release panels, optimized filters and separators
• Delcos XL touch controller: clear home screen, trend diagrams, real-time clock, start/stop, second pressure setting, fault history, automatic restart after power failure, remote control inputs, SD card data logging
• Iconn remote monitoring capability – real-time data, alerts, and analytics to help prevent downtime
• SMARTair master – multi-compressor sequencing, stable pressure, and energy savings

Technical specifications:

• Motor power 200 kW
• Noise level 77 dB(A)
• Dimensions (L x W x H) 2949 x 2111 x 2193 mm
• Weight 4415 kg
• Controller Delcos XL, SD logging, remote control inputs, automatic restart after power failure
• Remote monitoring Iconn
• System integration SMARTair master

Nominal pressure and air delivery (FAD):

• 7.5 bar – 39,230 l/min
• 10 bar – 34,850 l/min
• 13 bar – 29,380 l/min

Choose CompAir L200 – a powerful and efficient 200 kW screw compressor that will ensure a reliable supply of compressed air, help save energy, and serve your company dependably for many years.
