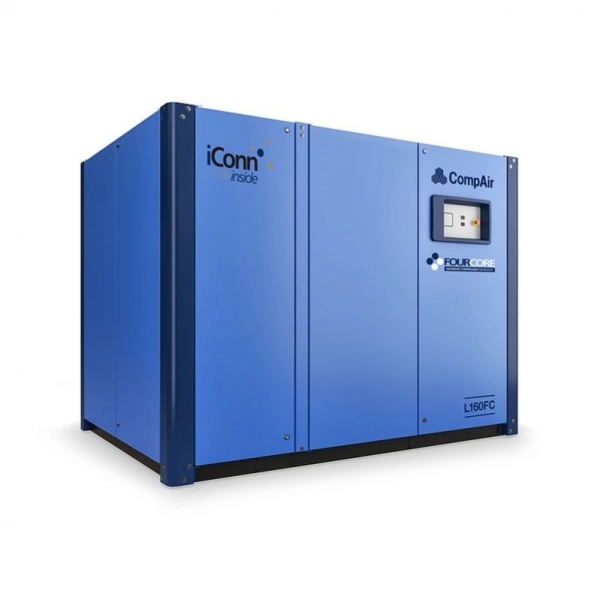

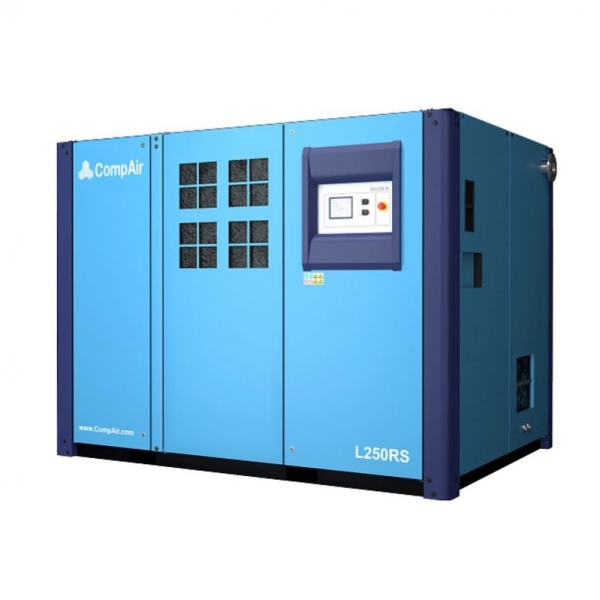

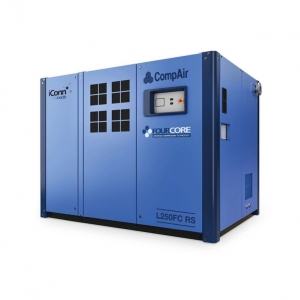

Oil-lubricated fixed-speed rotary screw air compressor L250 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L250 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L250 is a 250 kW high-performance industrial compressor designed for continuous operation in manufacturing, processing, and other intensive-use applications. Its reliable single-stage design and optimized air path ensure high efficiency, low pressure losses, and stable operation even at maximum loads. The equipment meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Features:

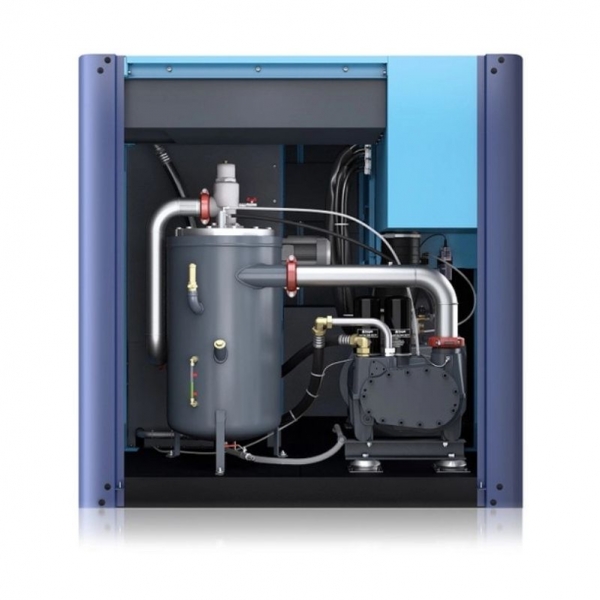

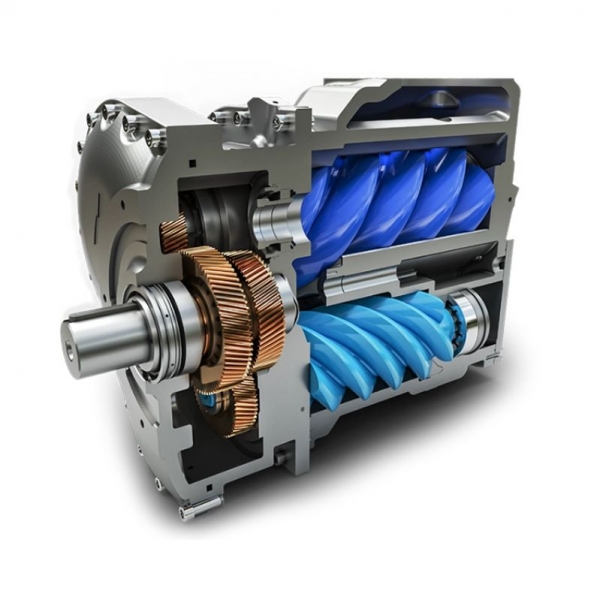

• Semi-integrated in-house screw airend with oil separation, filter, and thermostatic control – fewer connections, higher reliability, and easier maintenance
• Large-surface aftercooler and efficient cooling – low operating and discharge air temperatures and longer component service life
• Fine oil separation filter – consistent performance over the service life; residual oil content in air typically less than 3 ppm
• High-efficiency electric motor – lower energy consumption and reliable starting
• New-design radial cooling fan – lower noise level and more effective heat dissipation
• Service-friendly access – hinged doors, quick-release panels, optimized filters and separators
• Delcos XL touchscreen controller – clear home screen, trend graphs, real-time clock, start/stop, second pressure setpoint, fault history, automatic restart after a power outage, remote control inputs, SD card data logging
• Iconn remote monitoring capability – real-time data, alerts, and analytics to help prevent downtime
• SMARTair master – multi-compressor sequencing, stable pressure, and energy savings

Technical specifications:

• Motor power 250 kW
• Noise level 78 dB(A)
• Dimensions (L x W x H) 2949 x 2111 x 2193 mm
• Weight 4625 kg

Rated pressure and free air delivery (FAD)

• 7.5 bar – 42,030 l/min
• 10 bar – 37,010 l/min
• 13 bar – 32,640 l/min

Choose the CompAir L250 – a powerful and efficient 250 kW screw compressor that will ensure a reliable compressed air supply, help save energy, and serve your company reliably for many years.
