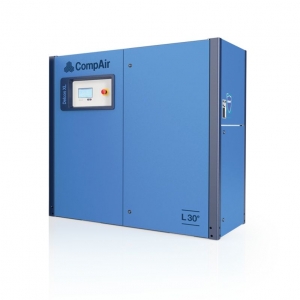

Oil-lubricated fixed-speed rotary screw air compressor L30 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L30 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

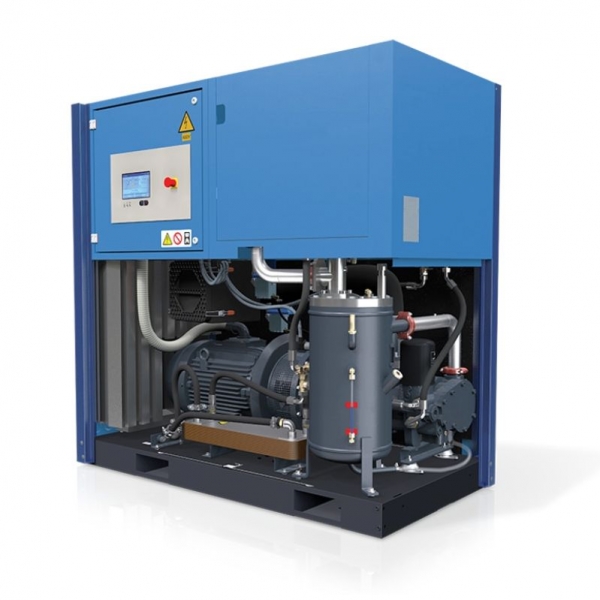

CompAir L30 is a compact and quiet 30 kW industrial compressor designed for continuous operation in manufacturing, workshops, and various industrial lines. An optimized air path and a semi-integrated screw airend ensure high efficiency, low pressure losses, and reliable performance even under high load. The model can be configured as a base unit, receiver-mounted, or Airstation (with refrigerated dryer), making it easy to adapt to the specific site and requirement. The model meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

• Semi-integrated in-house screw airend with integrated oil separation, filter, and thermostatic control – fewer connections, higher reliability
• Large-surface aftercooler – low operating and discharge air temperatures, longer component service life
• Next-generation oil separation filter – consistent performance throughout service life, oil carryover in air < 3 ppm
• High-efficiency IE4 electric motor – energy saving as standard
• Thermostatically controlled, motor-driven fan – quiet operation and the ability to use longer ducts
• High-quality connections – rigid hoses and pipework with viton Victaulic couplings to ensure reliability
• Easy maintenance – quick access to filter and oil separation elements, shorter downtime
• Iconn remote monitoring capability – real-time parameter tracking, alerts, and reports
• SMARTair master compressor control system – multi-compressor sequencing, stable pressure, and energy savings
• An investment that pays off – the additional cost of the super-efficient models often pays back in less than 12 months
• German engineering quality standard – reliability and durability

Technical specifications:

• Motor power: 30 kW
• Noise level: 67 dB(A)
• Weight: 887 kg
• Dimensions (L x W x H): 1722 x 920 x 1659 mm

Nominal pressure and air delivery (FAD):

• 7.5 bar – 5750 l/min
• 10 bar – 5010 l/min
• 13 bar – 4270 l/min

Choose CompAir L30 – a proven 30 kW screw compressor that will reduce energy costs, increase equipment availability, and serve your company reliably for many years.
