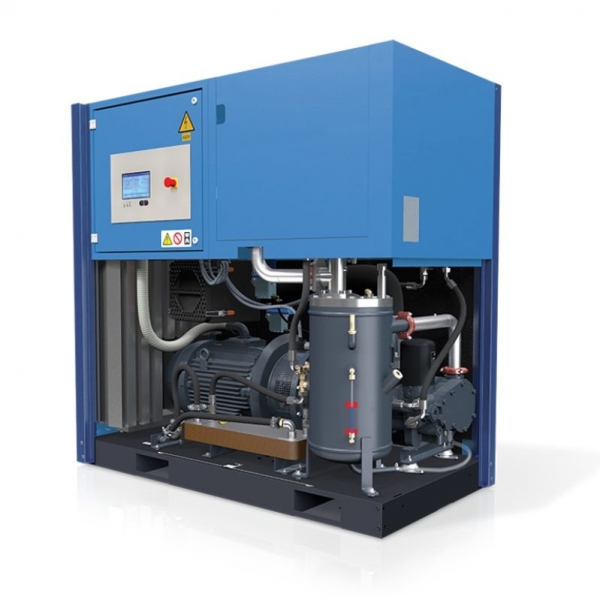

Oil-lubricated fixed-speed rotary screw air compressor L45 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L45 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L45 is a 45 kW compact and quiet industrial compressor designed for continuous operation in manufacturing, workshops, and various industrial lines. An optimized air path and a semi-integrated screw airend ensure high efficiency, low pressure losses, and reliable performance under heavy loads. The model can be configured as a base unit, receiver-mounted, or Airstation (with refrigerated dryer), making it easy to adapt to a specific site and requirement. The equipment meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

• Semi-integrated in-house screw airend with integrated oil separation, filter, and thermostatic control – fewer connections and higher reliability
• Large-surface aftercooler – low operating and discharge air temperatures, longer component service life
• Next-generation oil separation filter – consistent performance throughout the service life, oil carryover in air < 3 ppm
• High-efficiency IE4 electric motor – energy saving as standard
• Thermostatically controlled, motor-driven fan – quiet operation and the ability to use longer ducts
• Reliable connections – rigid hoses and pipework with viton Victaulic couplings
• Easy maintenance – quick access to filters and oil separation elements, shorter downtimes
• Iconn remote monitoring capability – real-time parameter tracking, alerts, and reports
• SMARTair master compressor control system – multi-compressor sequencing, stable pressure, and energy savings
• German engineering quality standard – reliability and durability

Technical specifications:

• Motor power: 45 kW
• Noise level: 69 dB(A)
• Weight: 953 kg
• Dimensions (L x W x H): 1722 x 920 x 1659 mm

Nominal pressure and air delivery (FAD):

• 7.5 bar – 8000 l/min
• 10 bar – 7000 l/min
• 13 bar – 6110 l/min

Choose CompAir L45 – a powerful and efficient 45 kW screw compressor that will reduce energy costs, increase equipment availability, and serve your company reliably for many years.
