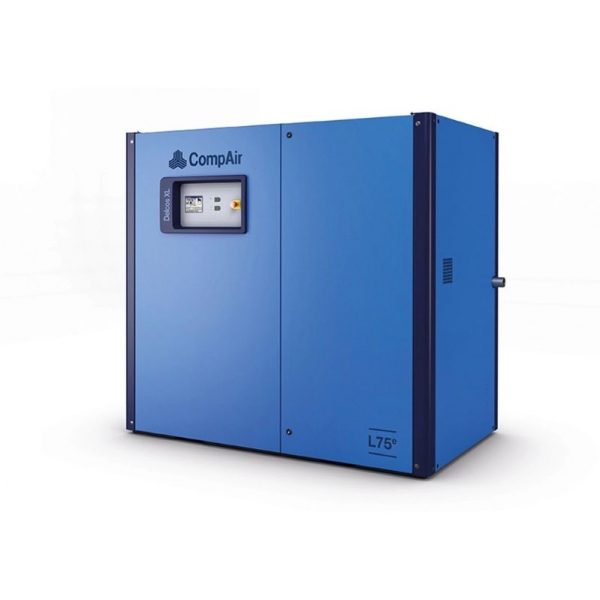

Oil-lubricated fixed-speed rotary screw air compressor L75 CompAir

Oil-lubricated fixed-speed rotary screw air compressor L75 CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

CompAir L75 is a 75 kW compact and quiet industrial compressor designed for continuous operation in manufacturing, workshops, and various industrial lines. An optimized air path and a semi-integrated screw airend ensure high efficiency, low pressure losses, and reliable performance under heavy loads. The model can be configured as a base unit or with an integrated refrigerated dryer (Airstation), making it easy to adapt to a specific site and requirement. The equipment meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

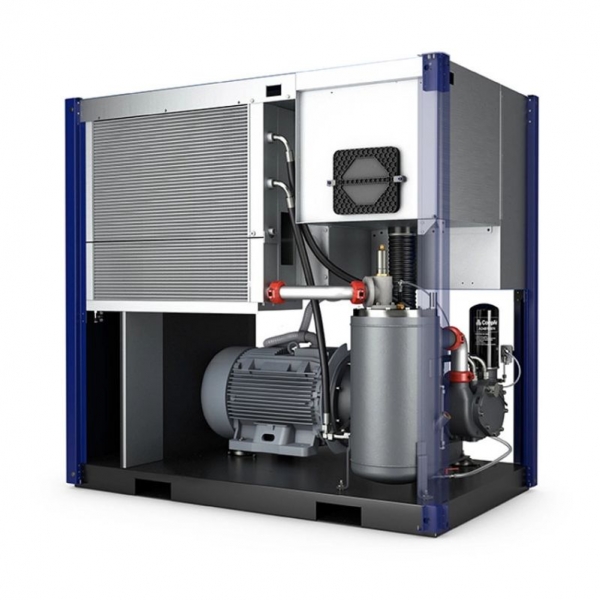

• Semi-integrated in-house screw airend with integrated oil separation, filter, and thermostatic control – fewer connections, greater reliability
• Large-surface aftercooler – low operating and discharge air temperatures, longer component service life
• Fine oil separation filter – consistent performance throughout the service life, oil carryover in air < 3 ppm
• High-efficiency IE4 electric motor – energy saving as standard
• Thermostatically controlled, motor-driven fan – quiet operation and the ability to use longer ducts
• Easy maintenance – quick access via hinged doors, quick-release panels, optimized filters and separators
• Iconn remote monitoring capability – real-time data, alerts, and analytics
• SMARTair master – multi-compressor sequencing, stable pressure, and energy savings
• German engineering quality standard – reliability and durability

Technical specifications:

• Motor power: 75 kW
• Noise level: 72 dB(A)
• Dimensions (L x W x H): 1958 x 1138 x 1857 mm
• Weight: 1495 kg

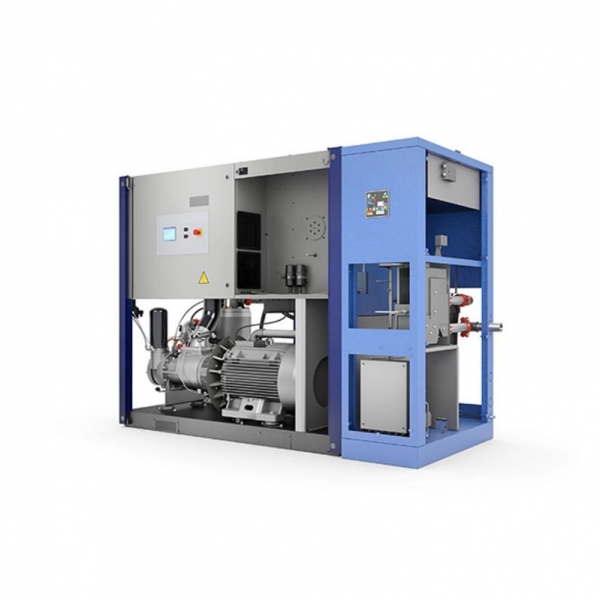

• Integrated dryer option (Airstation): dimensions 2458 x 1138 x 1857 mm; additional weight about 233 kg; pressure dew point +3 °C

Nominal pressure and air delivery (FAD):

• 7.5 bar – 13,980 l/min
• 10 bar – 12,540 l/min
• 13 bar – 10,500 l/min

Choose CompAir L75 – a powerful and efficient 75 kW screw compressor that will reduce energy costs, increase equipment availability, and serve your company reliably for many years.
