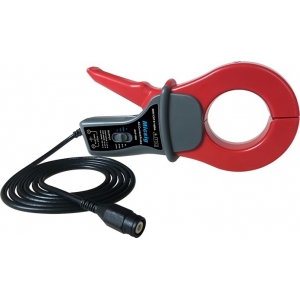

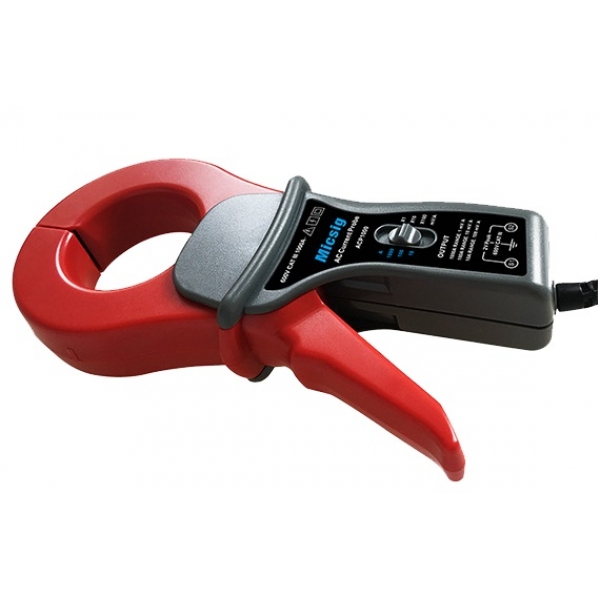

Oscilloscope current measuring clamp ACP1000
Manufacturer: Micsig
Clamps are designed for measuring alternating current.
Technical parameters:
| Input | Rated output | Frequency (Hz) | Rated Burden | Accuracy grade |
| 0.1 - 10 A | 100 mV / A | 10 - 100 kHz | ≥ 100 kOhms | 3 % ±10 mV |
| 0.1 - 100 A | 10 mV / A | 10 - 100 kHz | ≥ 100 kOhms | 2 % ±5 mV |
| 1 - 1000 A | 1 mV / A | 10 - 100 kHz | ≥ 100 kOhms | 1 % ±1 mV |
- Range of measured electric current: 0.1 A - 1000 A
- Operating frequency: 10 Hz - 100 kHz
- Maximum instantaneous current: 2000 A (2 sec.)
- Output signal: mV/A
- Maximum accuracy: 1%
- Operating temperature: -15°C to +75°C
- Safety class: CAT III 600V
- Maximum conductor thickness: 52 mm
- Dimensions: 111 x 216 x 45 mm
- Output cable: 1.55m BNC insulated output cable can be connected directly to an oscilloscope or other products that have an additional BNC connector fitted
