Oscilloscope for cars ETO5004

Oscilloscope for cars ETO5004

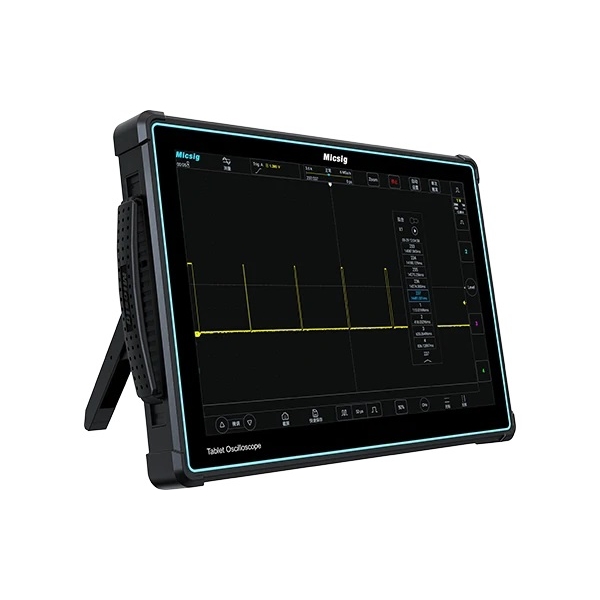

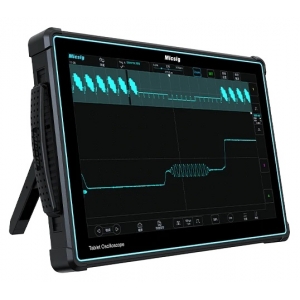

The fifth-generation Micsig tablet oscilloscope ETO5004 has a bandwidth of up to 500 MHz, 4 analog channels, a reading frequency of up to 3 GSa/s results and a memory depth of 360 Mpts. Built-in Micsig SigtestUI™ multi-functional system with excellent performance and professional oscilloscope functions. The 14-inch extra-large touch screen and built-in high-capacity battery make this device a great tool for both the hobbyist and the professional, giving owners a great oscilloscope control experience.

This device has a noise level of less than 90 μVrms even at 500M full bandwidth, allowing the capture of weak but important events during signal tuning and analysis. Also, the ETO series can selectively skip or block components in certain frequency bands. The range can be as low as 30 Hz, effectively filtering out interference and noise, significantly improving accuracy and reliability. The built-in large battery with a capacity of 13,500 mAh allows the ETO series to be used both on the table and when taking it indoors to test objects. Built-in shut-off function for safer transportation. Standard 75mm x 75mm VESA mount interface for greater compatibility.

Technical parameters :

• Bandwidth: 500Mhz
• Rise Time: ≤0.7ns
• Analogue channels: 4
• Real-time sampling rate: 3 GSa/s
• Memory depth: 360Mpts
• Maximum wave capture speed: 230,000 wfms/s
• Noise: <90 μVrms

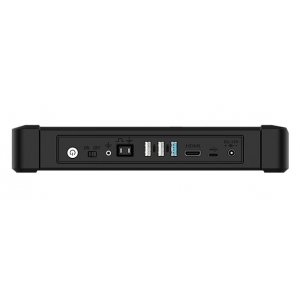

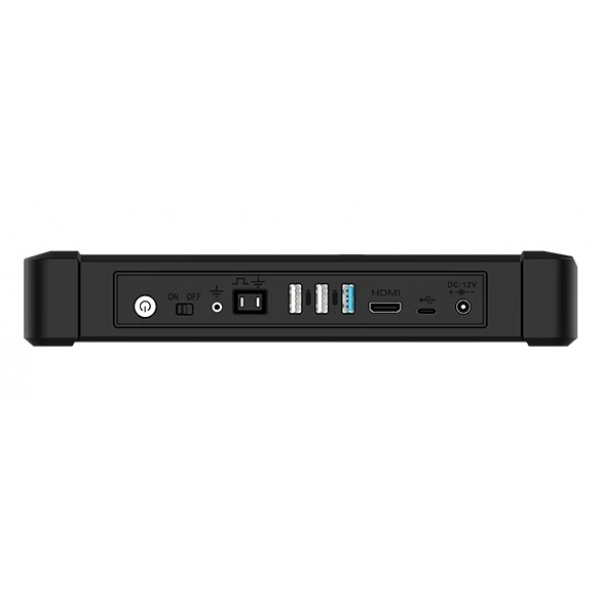

• Input interfaces: USB 3.0 / 2.0; USB type C; HDMI; power outlet

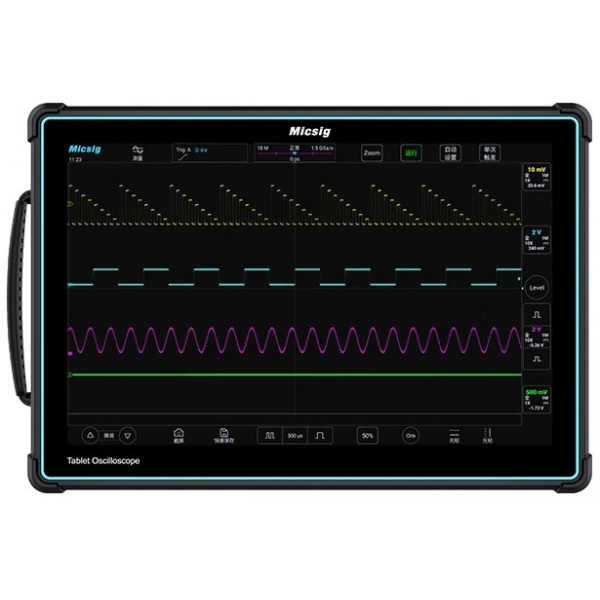

• Screen: 14” touch screen, 1920 x 1200 resolution
• Battery: 7.4 V / 13500 mAh Li-Ion battery
• Dimensions: 353 x 245 x 56 mm
• Weight: 3.6kg (with battery)
