Oscilloscope for cars STO1004

Oscilloscope for cars STO1004

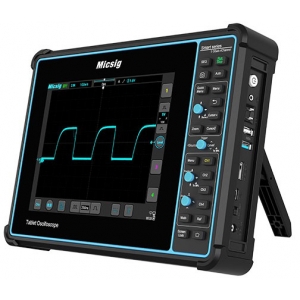

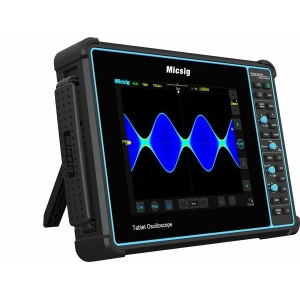

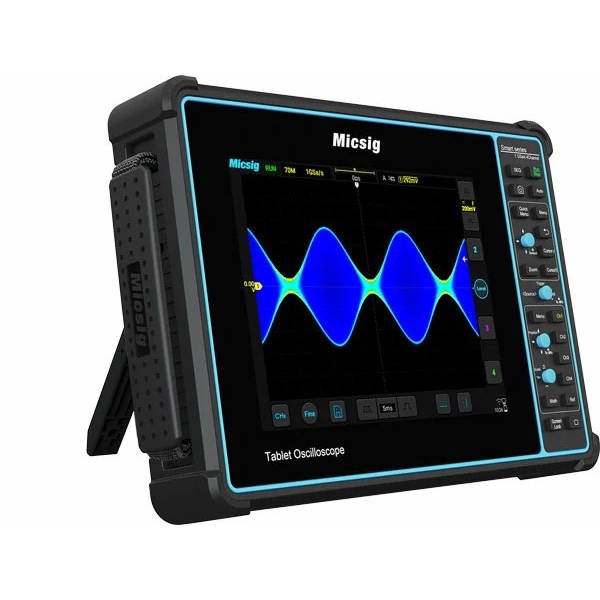

This Micsig STO1004 oscilloscope is a 4-channel, 100 MHz bandwidth model from the STO series with a high waveform acquisition speed of 130,000 wfms/s. It comes with 31 automatic measurement programs and a large internal memory of 32 GB. A serial bus pass-through, decoding and analysis system can display these waveforms and various other data at the same time.

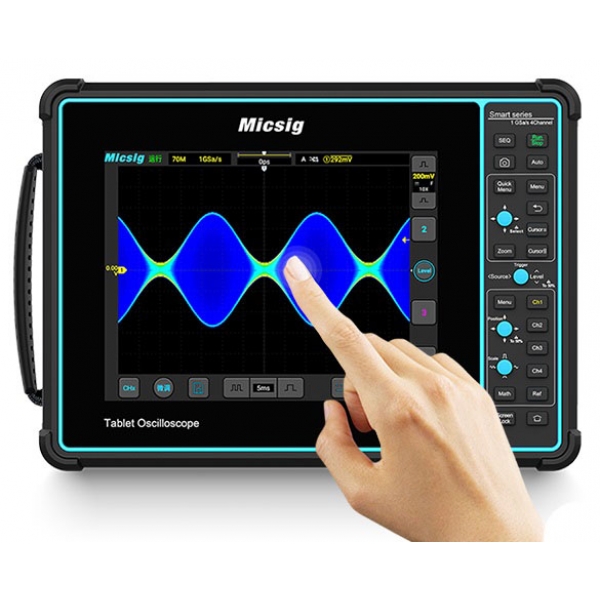

In addition, the oscilloscope can be used in three control modes: full touch function, physical button control function, and a combination of both. The built-in 7500mAh Li-ion battery combined with the soft TPU+ABS protective case makes this oscilloscope ideal for both home and workshop use.

The STO1004 has a large 8” inch TFT touch screen with a bright 256-level intensity gradation and a warm/cool color temperature display that displays the frequency range. The software runs on the powerful Android system and essentially works like a tablet. For example, you can connect to the Internet via Wi-Fi, send data, take photos / videos and control it remotely via a computer or smartphone.

Features:

• Ability to decode a specific single channel signal
• Powerful trigger function
• Mobile and convenient design
• Integrated control panel
• Color representation of frequency intensity
• Pass-through filter
• Ability to manage remotely

Technical parameters:

• Analog input channels: 4
• Bandwidth: 100 Mhz
• Rise Time: ≤3.5 ns
• Real-time sampling rate: 1 GSa/s (single channel)
• Memory depth: 70 Mpts (single channel)
• Maximum waveform capture rate: 130,000 wfms/s
• Bandwidth Limitation: 20 MHz,
• Interfaces: Wi-Fi; USB 3.0 / 2.0 input, USB C-type, HDMI
• Internal memory: 32 GB
• Display: 8” TFT LCD, resolution 800 x 600
• Battery: 7.4 V, 7500 mAh
• Navigation buttons panel
• Dimensions: 265 x 192 x 50 mm
• Weight: 1.9 kg with battery
