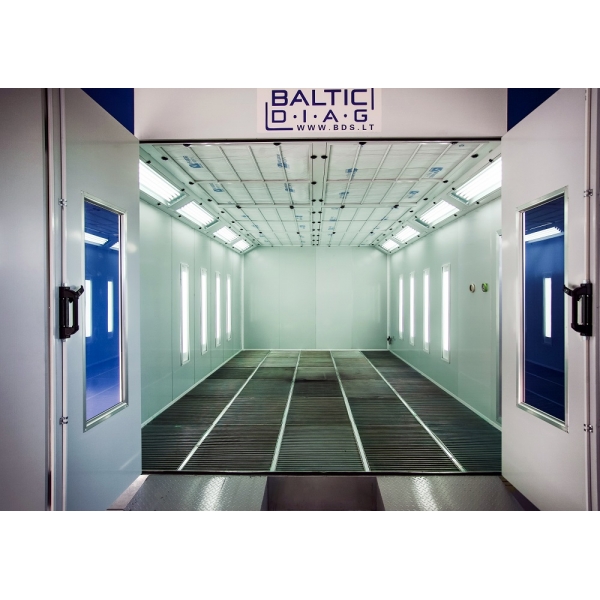

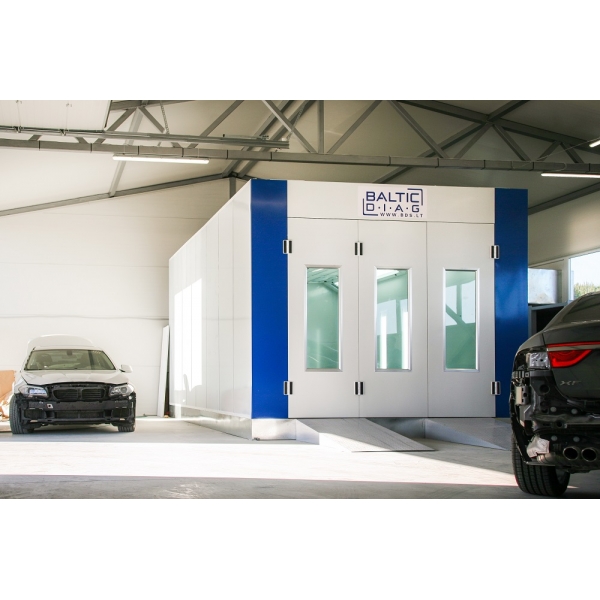

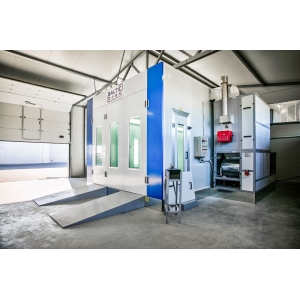

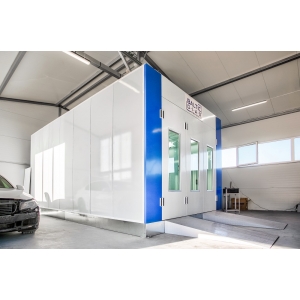

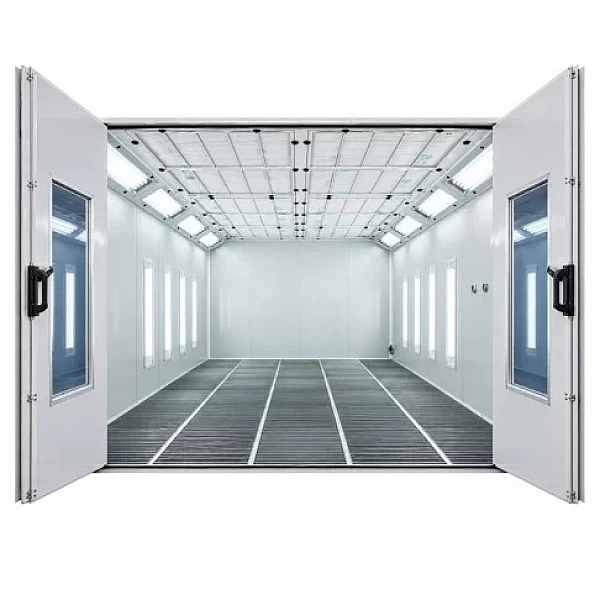

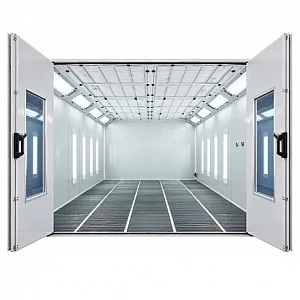

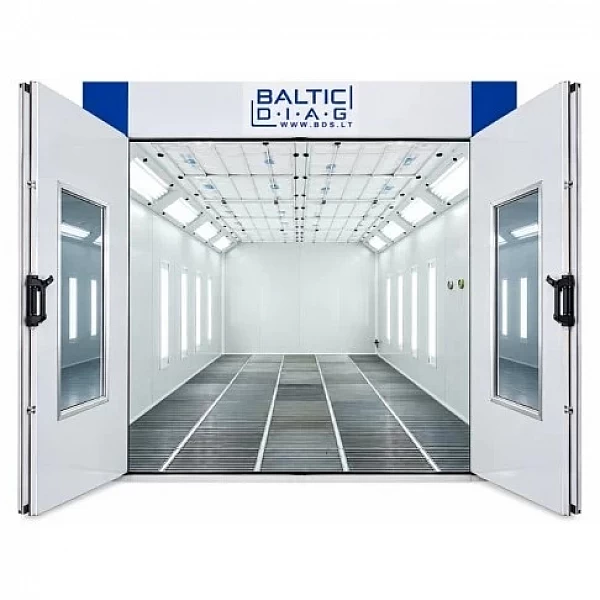

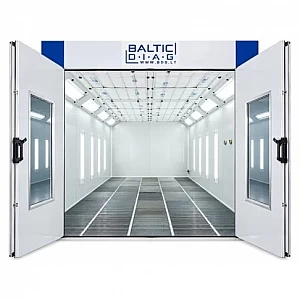

Spray booth BD-6400 with activated carbon filtration

Painting and drying of passenger cars and their parts
Activated carbon filtration system for additional purification of exhaust air
Pocket filters for additional air purification
Reduction of odors and chemical compounds generated during painting in the exhaust air

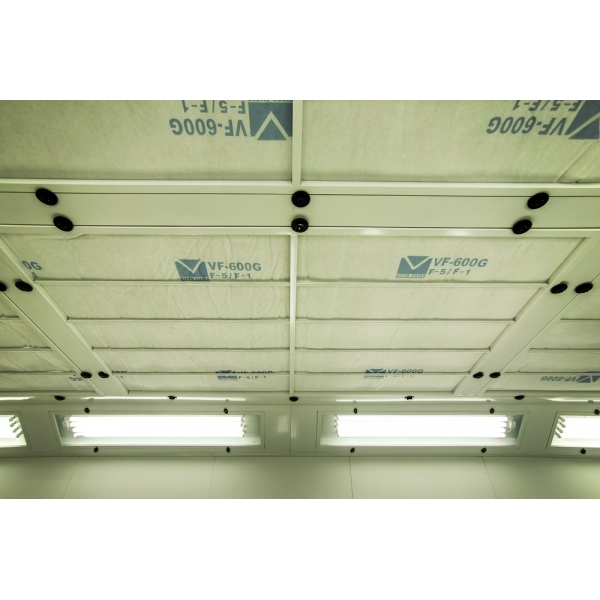

Supply of filtered air to the painting area
Removal of particles and contaminated air generated during painting

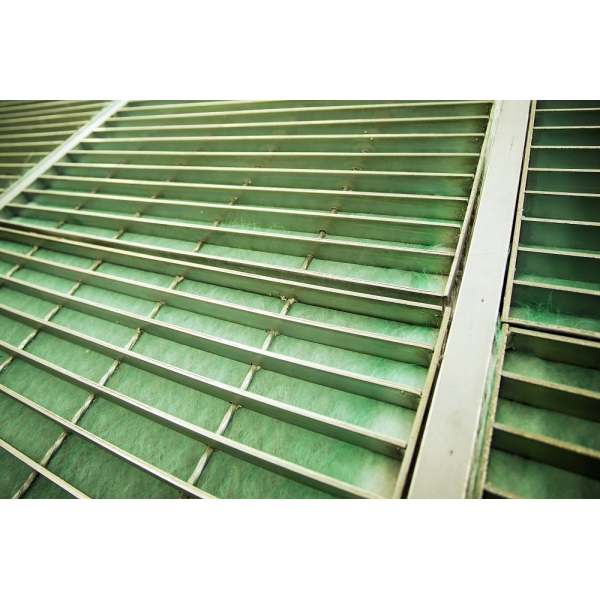

Floor-mounted air filtration and extraction system

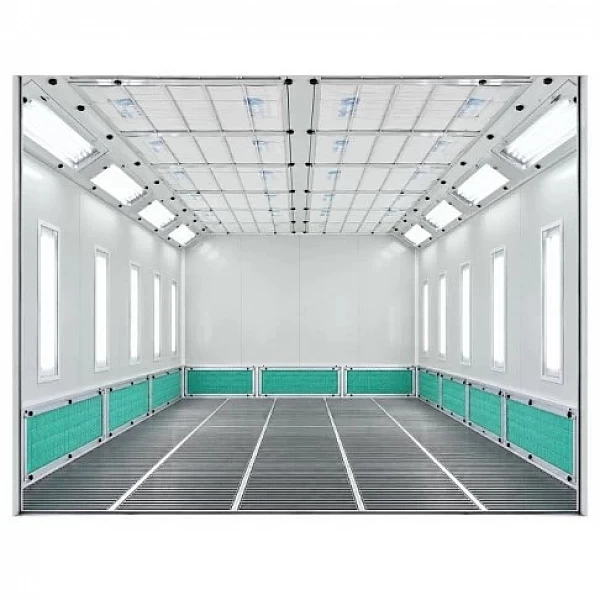

Option to select alternative filtration through the chamber walls

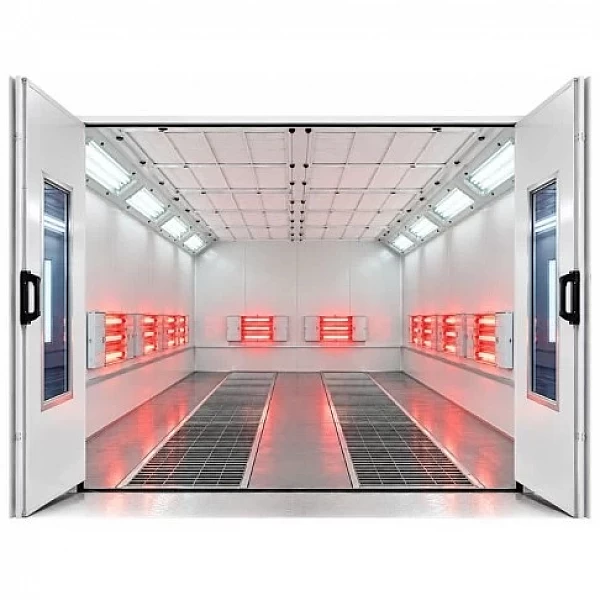

Gas-fired heating of the work area for drying painted surfaces
Insulated construction helps reduce heat loss

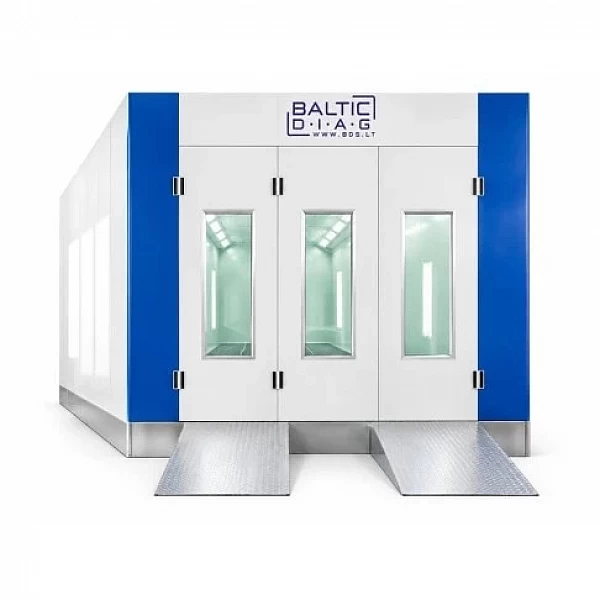

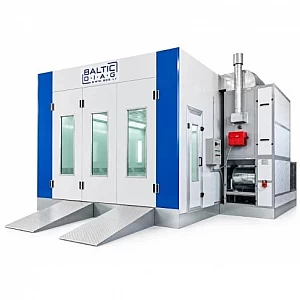

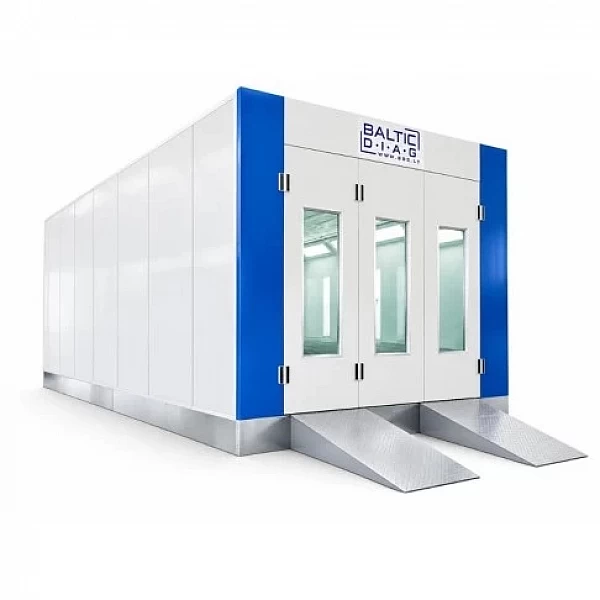

Galvanized metal base with entry ramps
Option to choose a fully grated floor

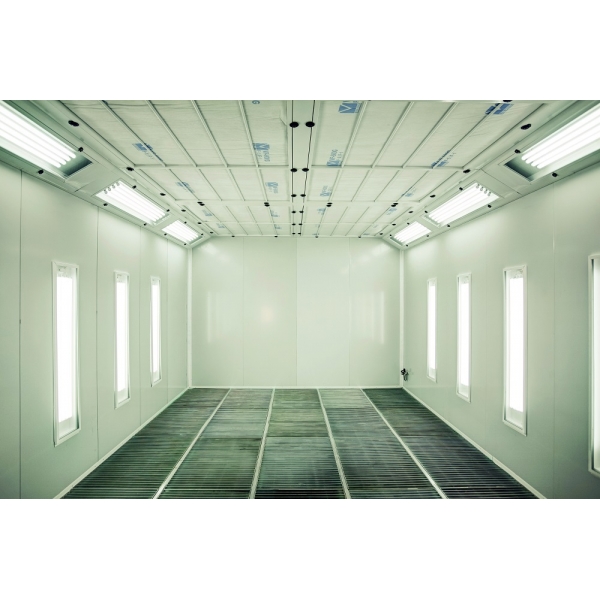

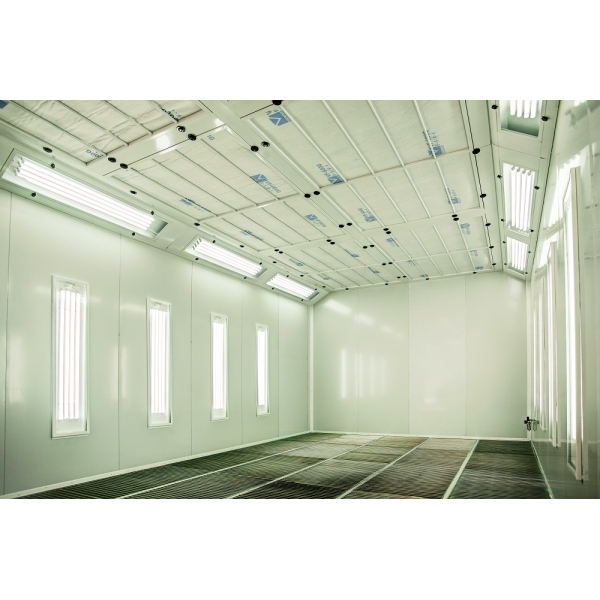

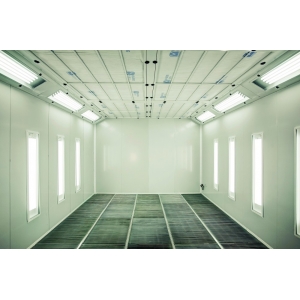

Ceiling- and side-mounted LED work area lighting
Separate employee entrance to the booth

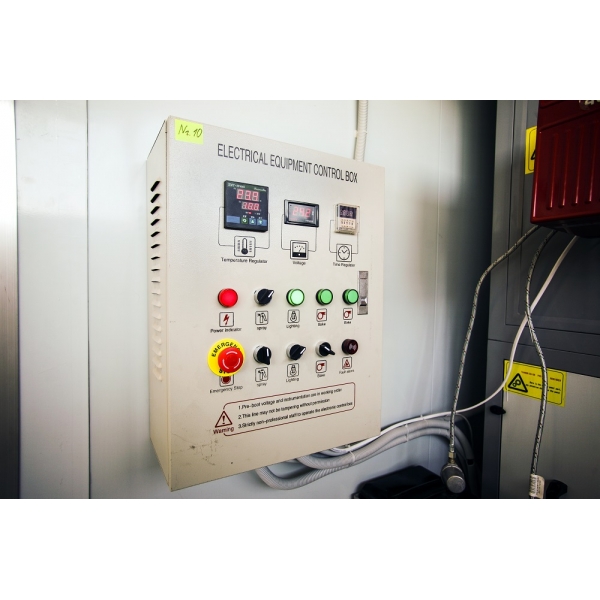

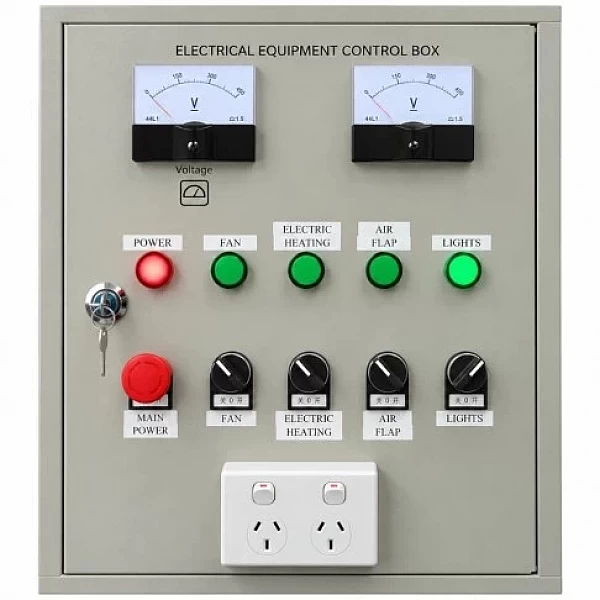

Centralized control of spraying, heating, and lighting
Emergency stop function
Option to choose thicker EPS or rock wool insulation upon request

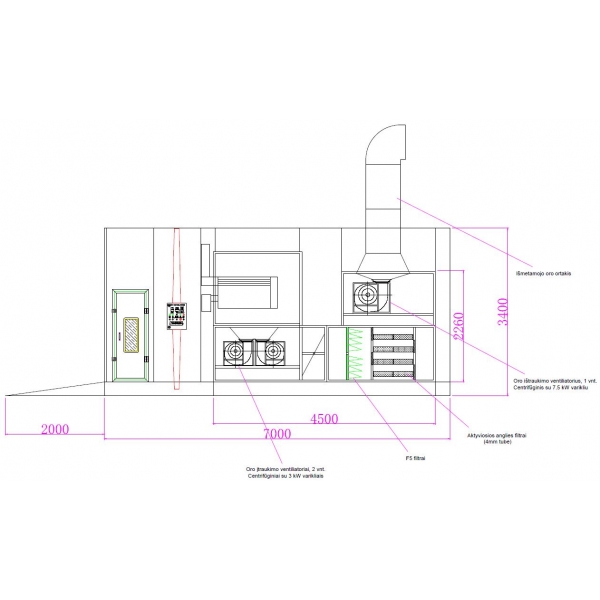

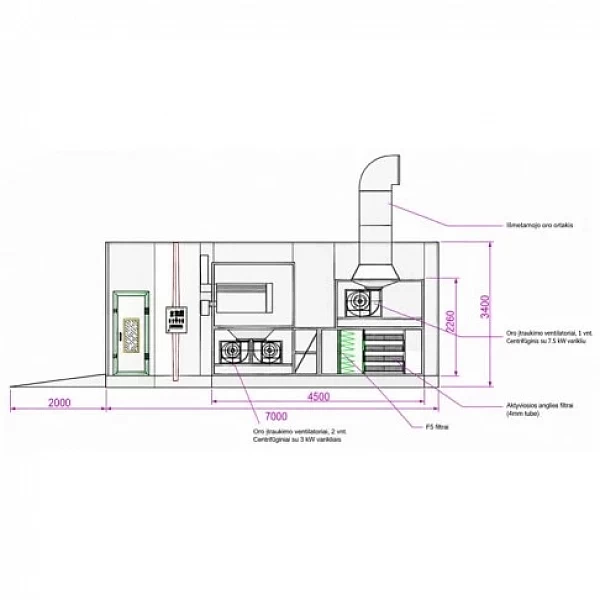

Overall length: 7,000 mm
External width: 5,350 mm
External height: 3,500 mm
Internal length: 6,900 mm
Interior width: 3,900 mm
Interior height: 2,800 mm
Main door dimensions: 3,000 x 2,705 mm
Service door dimensions: 650 x 2,000 mm
Control unit dimensions: 500 x 200 x 600 mm
Access ramp dimensions: 2,000 x 620 mm
Chimney dimensions: 275 x 250 x 300 mm

BD-6400 Paint Booth Assembly x 1
Galvanized metal base with filter housings x 1
Set of access ramps x 1

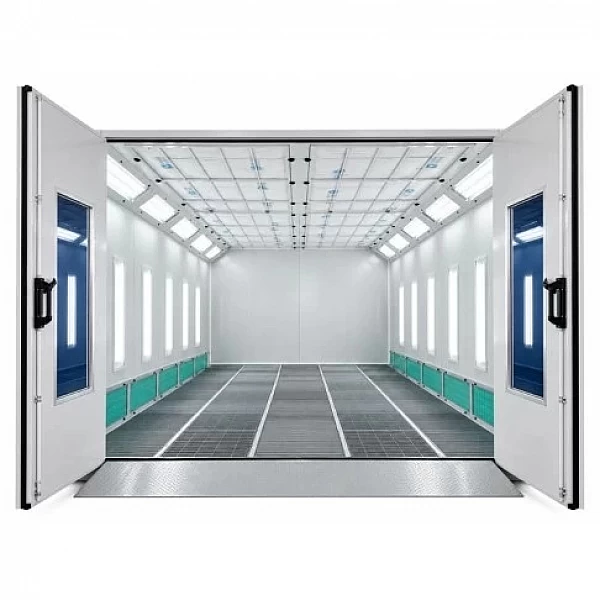

Main door x 1
Staff door x 1

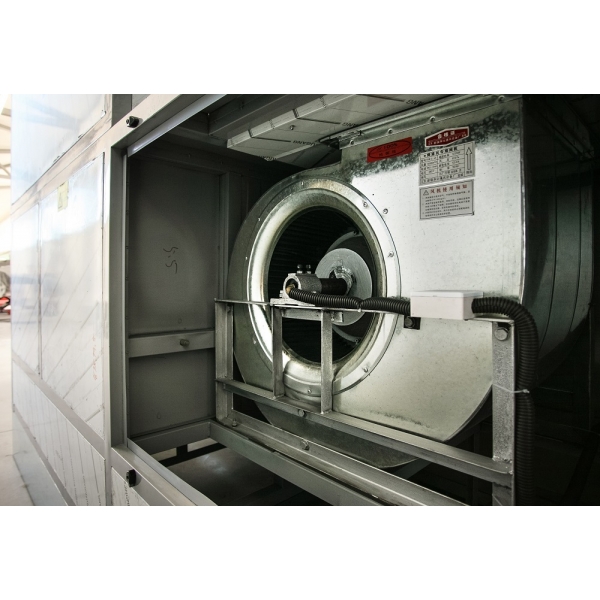

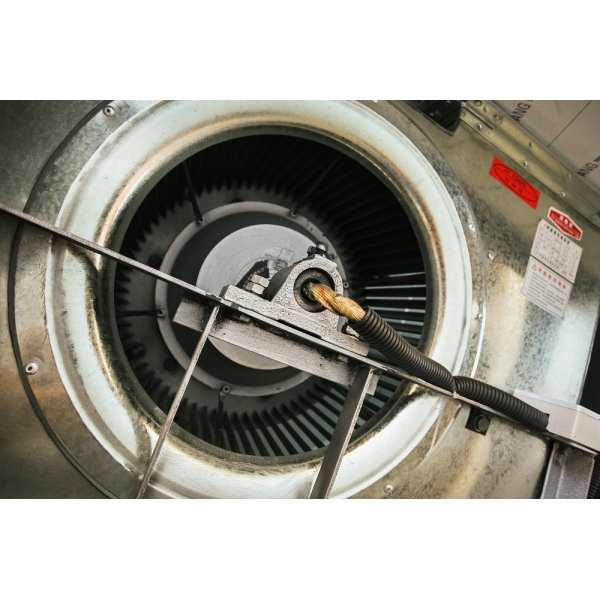

Air intake fans x 2
Air exhaust fan x 1
RIELLO G20 diesel burner x 1
Stainless steel heat exchanger x 1
Filtration system x 1
Ceiling-mounted LED lights x 32
Side-mounted LED lights x 32
Control unit x 1
Mounting hardware x 1 set
Sealing kit x 1
CE certificate x 1

Pressure Protection for Spray Booths:

In the event of excessive pressure or vacuum caused by a failure of the electric motor, the automation system, or operator error, the paint booth is automatically shut down. This helps prevent damage to the paint booth caused by it collapsing, since in the event of an emergency—such as when only the extraction motor remains running or a damper fails— a very strong vacuum is created, making it extremely difficult to open the exit door. This can endanger the employee inside and may also damage the paint booth’s structure. This is the most highly recommended automatic safety feature for a paint booth.

Price when installed with the paint booth: 300 € + VAT. Price for separate installation: 360 € + VAT + travel expenses.

Paint booth pressure regulation:

To achieve a high-quality paint finish on a part, the air pressure inside the paint booth is critical; it should be between 5 and 20 Pa, because:

• When painting at a pressure lower than 0 Pa, dust from the room may be drawn into the booth.
• When painting at a pressure higher than 30 Pa, air vortices may form, which can also compromise paint quality.

1 Pa = 0.00001 bar. It is practically impossible to determine such a low pressure “by eye,” so we recommend using pressure gauges for measurement and either a mechanical or electronic control system. By choosing either method, you can reduce the airflow, thereby increasing the temperature inside the paint booth and saving fuel during the winter. The dampers can be closed at night, preventing the interior of the paint booth from being cooled through the vents.

Mechanical control:

A pressure gauge is installed in the paint booth control cabinet to display the pressure. The pressure is adjusted mechanically by changing the position of the dampers, while another operator monitors the pressure in the paint booth. Dampers and a pressure gauge are required.

Electronic control:

A pressure gauge is mounted on the paint booth control panel to display the pressure. The pressure is regulated using switches or potentiometers. When work is completed, the dampers close, and they open automatically when the spray booth is turned on. Dampers, actuators, a pressure gauge, control systems, and automation are required.

• Pressure gauge with enclosure and connections only: 230 € + VAT
• Pressure gauge with housing, switches/potentiometers, and connection to actuators and automation: 590 € + VAT. Automation components are included in the price. The price does not include the installation of valves or actuators, nor the routing of cables to the control cabinet.
• Damper: 250 € + VAT; 2 units required. We recommend this even without installing automation.

Actuators for electronic damper control:

• Actuator without memory: 170 € + VAT, 2 units required. When the paint booth is turned on, the dampers open fully and are controlled by switches.
• Actuator with memory: €240 + VAT, 2 units required. When the paint booth is turned on, the dampers return to the position set by the potentiometer.

For example, to control the dampers electronically, a pressure gauge with switches, dampers, and actuators are required. The price includes the connection of the automation system and the pressure gauge; however, the installation of the dampers and actuators is billed together with the installation of the air lines.

Other accessories:

• Installation of a timer so that, when the drying function is activated, the motors start only after the damper has fully moved to the next position: 200 € + VAT
• Add-on price: 145 € + VAT, if electronically controlled dampers or pressure protection devices are installed at the same time
