Gas-heated spray booth BD-6400-G

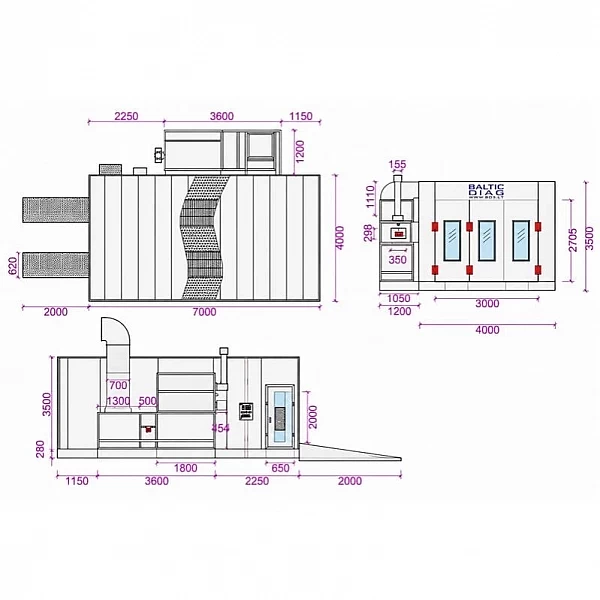

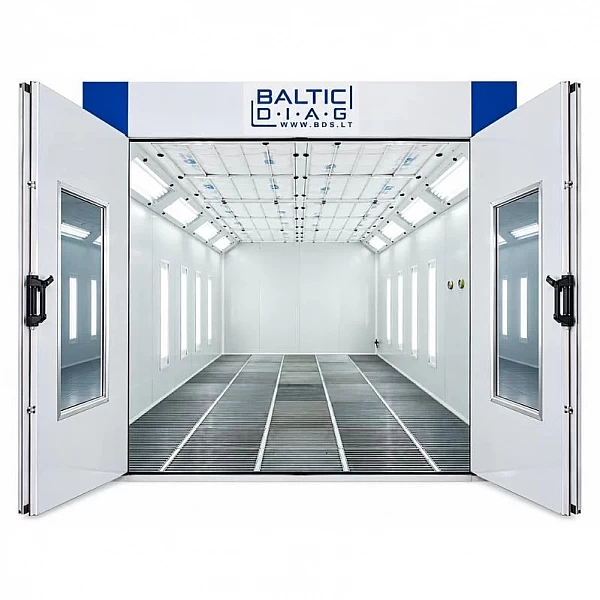

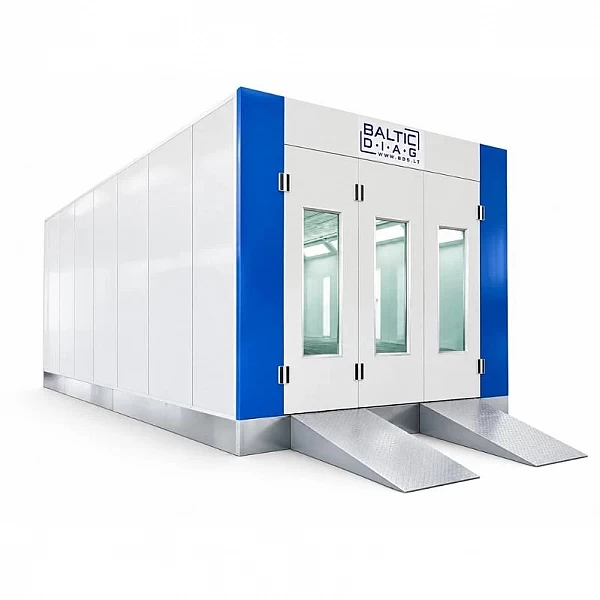

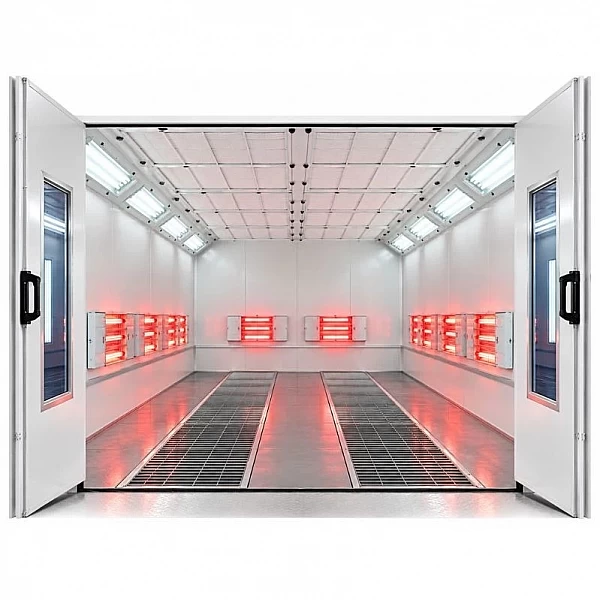

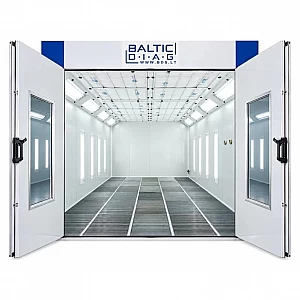

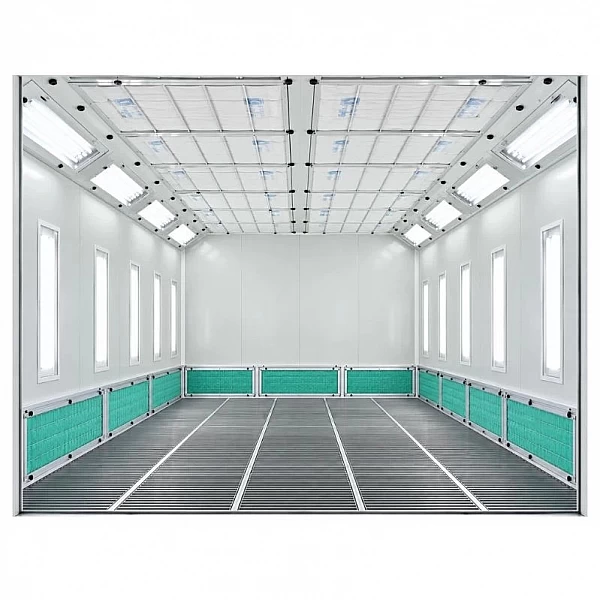

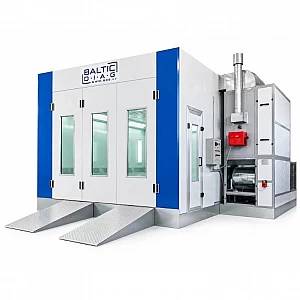

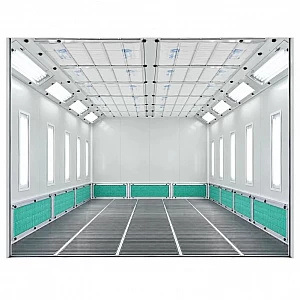

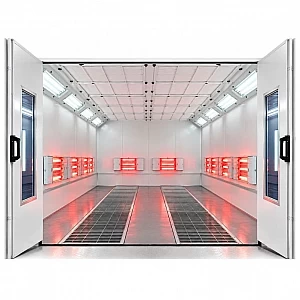

BD-6400-G Spray Booth with Gas Burner

Manufacturer: BALTICDIAG, warranty period: 24 months

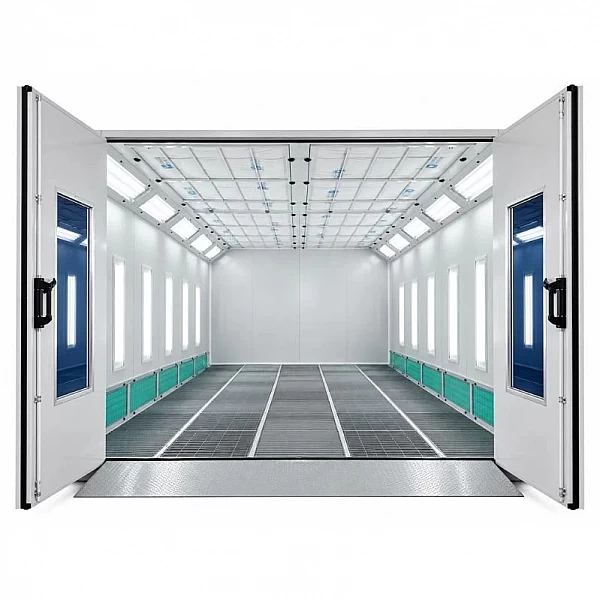

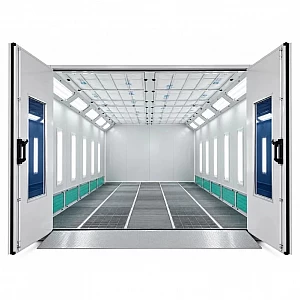

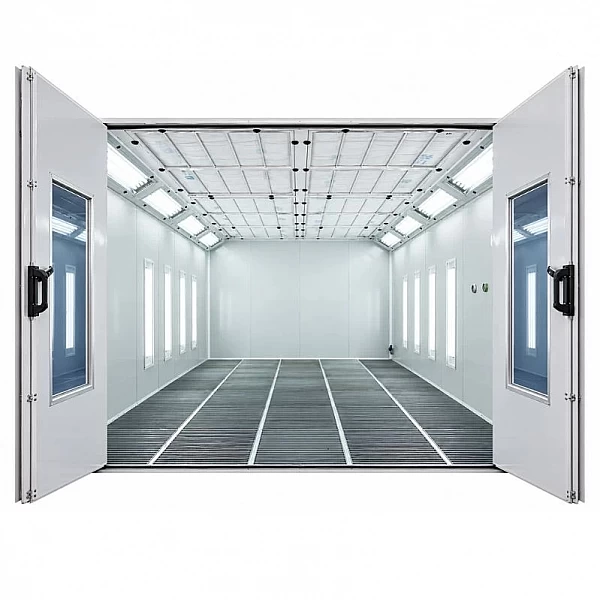

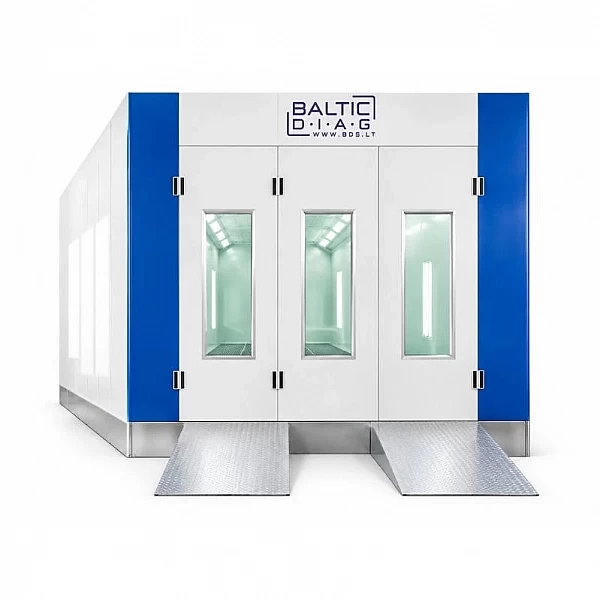

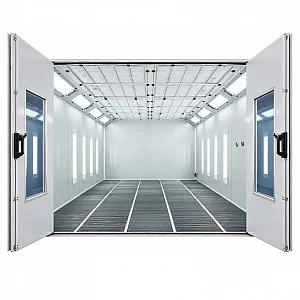

The BD-6400-G is a professional paint and drying booth designed for painting passenger cars and their parts. A gas-fired heating system, an efficient air supply and exhaust system, and multi-stage filtration help ensure controlled working conditions during painting and drying. Insulated wall and ceiling panels help retain heat, while the galvanized metal base, entry ramps, and LED lighting are designed for convenient daily operation in professional paint shops.

Technical Specifications:

• Heating type: gas
• Total electrical power: 15.5 kW
• Supply voltage: 380 V
• Frequency: 50 Hz
• Standard wall and ceiling insulation: EPS foam between steel panels
• Insulation thickness: 50 mm
• Optional insulation: 70 mm EPS foam or rock wool
• Frame: galvanized steel
• Standard floor construction: 5 rows of filter housings with access ramps
• Floor options: 5 rows of galvanized grating or fully grated floor
• Burner: RIELLO FS20
• Burner thermal output: 200,000 kcal/h
• Gas consumption: 8.2–23.5 m³/h
• Heat exchanger: stainless steel
• Number of heat exchangers: 1
• Operating temperature: 60–80 °C
• Time to reach operating temperature: approx. 5–10 min.
• Main filter efficiency: >83%
• Air intake filter efficiency: >97%
• Exhaust air filter efficiency: >70%
• Number of intake fans: 2
• Type of intake fans: centrifugal
• Motor power of a single intake fan: 4 kW
• Total intake airflow capacity: 24,000 m³/h
• Number of exhaust fans: 1
• Type of exhaust fan: centrifugal
• Exhaust fan motor power: 5.5 kW
• Air exhaust capacity: 18,000 m³/h
• Number of ceiling-mounted LED lights: 32
• Power of a single ceiling-mounted LED light fixture: 16 W
• Number of side LED lights: 32
• Power of a single side LED light: 16 W

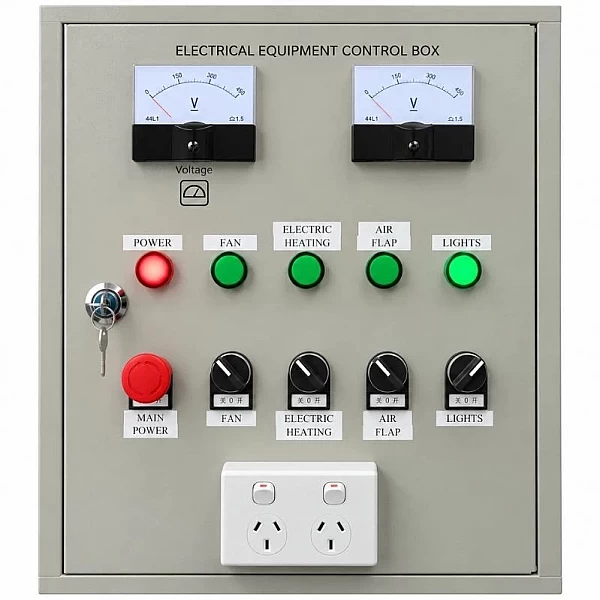

• Control unit: control of spraying, heating, and lighting; emergency stop; and other functions
• Control electronics: CHINA DELIXI
• Standard filtration method: through the bottom of the chamber, on the floor with entry ramps
• Alternative filtration methods: through 3 chamber walls or through 1 chamber side

The BD-6400-G is a professional solution for auto repair shops and paint shops that require an efficiently ventilated, filtered, and gas-heated painting area. A high-performance air system, the RIELLO FS20 gas burner, multi-stage filtration, an insulated design, and intense LED lighting help ensure stable working conditions, an efficient painting process, and reliable equipment operation in daily operations.
