Professional diagnostic equipment Autel MaxiSys ULTRA

Professional diagnostic equipment Autel MaxiSys ULTRA

Comprehensive vehicle diagnostics – from fault code reading to oscilloscope testing.

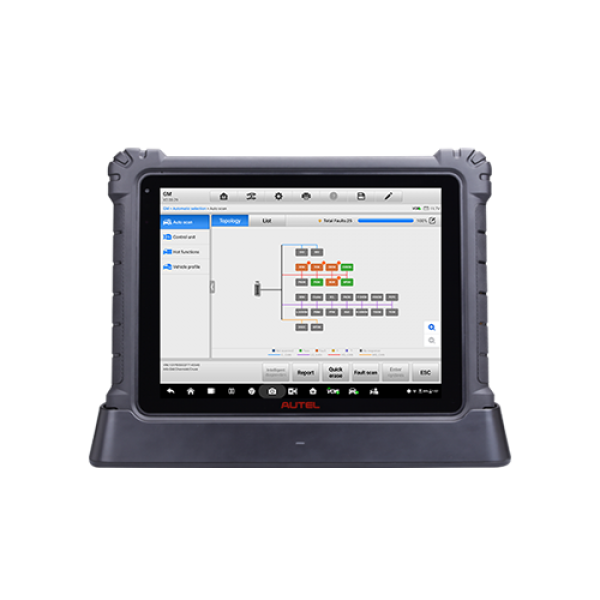

AUTEL MaxiSYS ULTRA is one of the most powerful and intelligent AUTEL diagnostic tools, designed for automotive workshops and auto electricians who want maximum efficiency without compromise. A 12.9-inch display, 256 GB internal storage, advanced software and an integrated MaxiFlash VCMI module with oscilloscope, multimeter, waveform generator and CAN tester functions provide everything needed to perform complex diagnostics and programming tasks quickly, safely and accurately.

Why choose AUTEL MaxiSYS ULTRA?

• Large 12.9-inch display.
• The bright and responsive touchscreen makes it easy to analyze complex data, graphs and test results.

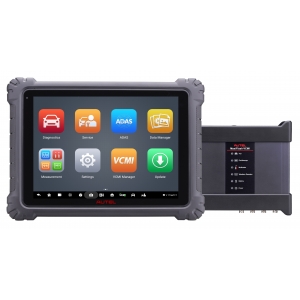

• 4 tools in one with MaxiFlash VCMI.
• The VCMI module works as an oscilloscope, waveform generator, multimeter and CAN tester, providing complete electrical system analysis without additional tools.
• 256 GB internal storage and powerful processor.
• Smooth operation even when running multiple diagnostic tasks at the same time.
• Intelligent diagnostics with AutoSCAN and interactive support.
• Smart functions help identify faults quickly, while real-time support from AUTEL experts is available when needed.
• Cloud solutions for service workflow management.
• Customer, vehicle and service history is stored in one place and available at any time.
• Charging dock included.
• Convenient storage and charging, so the device is always ready for work.

Features:

• Latest OE-level coverage for more than 80 vehicle brands in the US, Asian and European markets.
• OE-level functionality: OBD II diagnostics, ECU coding and programming.
• Automatic system and software updates with real-time notifications.
• Interactive support sessions with AUTEL specialists.
• All-in-one service workflow management: files, customer information and vehicle records.
• Cloud-based data storage.
• ADAS calibration software available on request.

Technical specifications:

• Operating system: Android 7.0;
• Processor: Samsung Exynos 8895V, 2.3 GHz Quad + 1.7 GHz Quad;
• Memory: 4 GB RAM and 256 GB internal storage;
• Display: 12.9" TFT-LCD screen with 2732 × 2048 resolution;
• Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI 2.0, SD card with support up to 256 GB;
• Cameras: 16 MP rear camera with flash, 5 MP front camera;
• Sensors: gravity accelerometer, ambient light sensor;
• Audio input/output: microphone, dual speakers, 3.5 mm headphone jack;
• Battery: 18,000 mAh, 3.8 V lithium-polymer battery;
• Input voltage: 12 V / 3 A;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -20 °C to +60 °C;
• Dimensions: 366.5 × 280.9 × 34 mm;
• Weight: 2.18 kg;
• Supported protocols: DoIP, CAN, GMLAN, ISO, SAE, BMW, Ford, Nissan and more.

What is included:

• AUTEL MaxiSYS ULTRA diagnostic tablet;
• Charging dock;
• Main OBD II cable V2.0;
• AC/DC 12 V adapter;
• USB 2.0 cable V2;
• Vehicle charging cable;
• 2 fuses, 6 × 30 mm;
• Oscilloscope, multimeter and ignition test leads;
• Probes, adapters and clamps;
• User manual;
• Packing list;
• Tablet screen cleaning cloth;
• Tool case;
• Carrying case.

Who is this device for?

• AUTEL MaxiSYS ULTRA is ideal for professional service technicians, electronic diagnostics specialists and advanced system programmers who need maximum functionality and convenient operation in one device. It is a solution for those who want to stay one step ahead – from ADAS calibration to ECU programming and full vehicle electrical system diagnostics.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Time to go beyond the limits of diagnostics!

• Try AUTEL MaxiSYS ULTRA today — contact us to receive an offer tailored to your service needs.
