Professional EV diagnostic tool Autel MaxiSys Ultra EV

Professional EV diagnostic tool AUTEL MaxiSYS Ultra EV

A universal high-voltage EV battery diagnostic solution in one device.

AUTEL MaxiSYS Ultra EV is one of the most advanced diagnostic tools in the AUTEL range, specially designed for servicing electric and hybrid vehicles. With an integrated battery analysis system, intuitive topology map, real-time data and intelligent AutoSCAN functions, Ultra EV allows service technicians to perform comprehensive high-voltage system analysis quickly and safely. The device supports both OBD connection and direct connection using the included cables and adapters.

Why choose AUTEL MaxiSYS Ultra EV?

• Specialized EV battery analysis.
• Fast diagnostics via OBD or direct connection, showing detailed battery condition, charge level, voltage and module performance.
• Large 12.9-inch display and intuitive interface.
• A clear display makes it easier to work with topology maps, data graphs and detailed test steps.

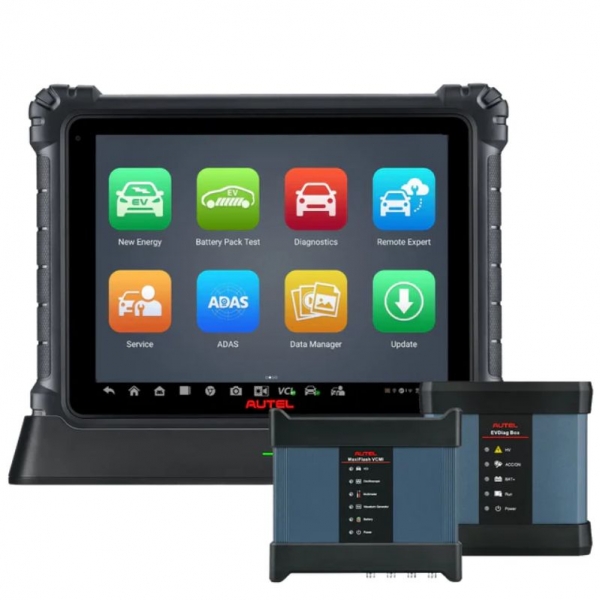

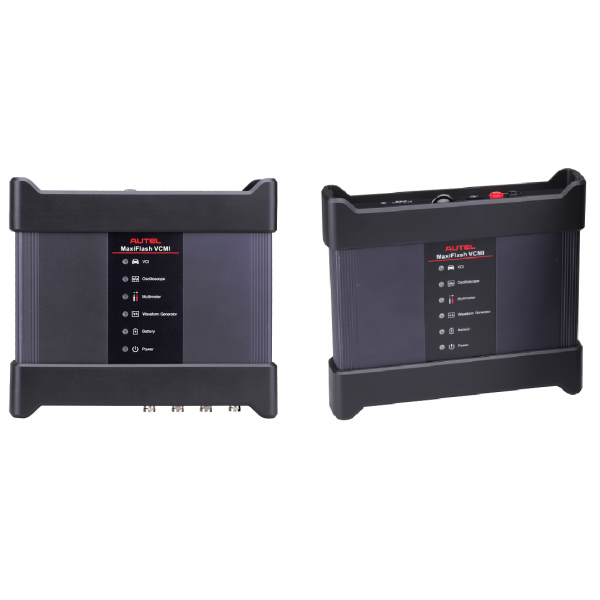

• MaxiFlash VCMI and EVDiag included.
• 4-in-1: oscilloscope, multimeter, waveform generator and CAN tester, plus a dedicated EV diagnostic module for professional service work.
• Cloud solutions for service workflow management.
• Automated task, customer and vehicle history management system available in real time.
• Real-time support and updates.
• Automatic OE-level updates with the latest coverage and the ability to consult AUTEL experts directly through the device.

Features:

• Support for US, European and Asian electric, gasoline, diesel and hybrid vehicles.
• Fast high-voltage EV battery system analysis with fault code reading and clearing, as well as live data viewing.
• Battery charge and condition analysis to determine the actual technical condition of the battery.
• Battery analysis can be performed via OBD or direct connection using the included special cables and adapters.
• Detailed graphs and step-by-step instructions are displayed on screen for safe testing.
• Automatic system and software updates with instant notifications.
• Interactive data logging sessions allow communication with AUTEL consultants.
• Multifunctional workspace for service process, customer information and vehicle record management.
• Cloud-based data manager stores customer and vehicle records, scanner data and technician notes.
• ADAS calibration software available on request.

Technical specifications:

• Operating system: Android 7.0;
• Processor: Samsung Exynos 8895V octa-core processor, 2.3 GHz Quad Mongoose + 1.7 GHz Quad A53;
• Memory: 4 GB RAM and 256 GB internal storage;
• Display: 12.9" TFT-LCD screen with 2732 × 2048 resolution;
• Connectivity: Wi-Fi 802.11 a/b/g/n/ac, Bluetooth v2.1 + EDR, GPS, USB 2.0, HDMI 2.0, SD card with support up to 256 GB;
• Cameras: 16 MP rear camera with flash, 5 MP front camera;
• Sensors: gravity accelerometer, ambient light sensor;
• Audio input/output: microphone, dual speakers, 3.5 mm headphone jack;
• Battery: 18,000 mAh, 3.8 V lithium-polymer battery;
• Input voltage: 12 V / 3 A;
• Operating temperature: 0 °C to +50 °C;
• Storage temperature: -20 °C to +60 °C;
• Dimensions: 366.5 × 280.9 × 34 mm;
• Weight: 2.18 kg;
• Protocols: ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN / GMLAN, ISO-11898-2, ISO-11898-3, SAE-J2819 TP20, TP16, ISO-9141, ISO-14230, SAE-J2610 Chrysler SCI, UART Echo Byte, SAE-J2809 Honda Diag-H, SAE-J2740 GM ALDL, SAE-J1567 CCD BUS, Ford UBP, Nissan DDL UART with clock signal, BMW DS2, BMW DS1, SAE J2819 VAG KW81, KW82, SAE J1708, SAE-J1850 PWM Ford SCP, SAE-J1850 VPW GM Class 2.

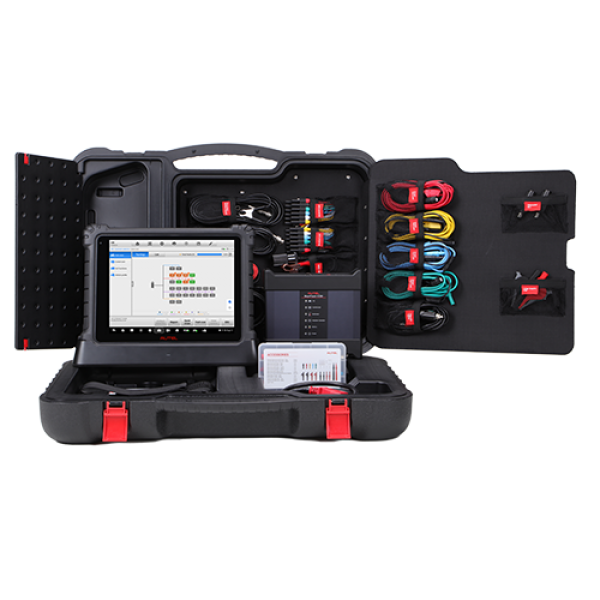

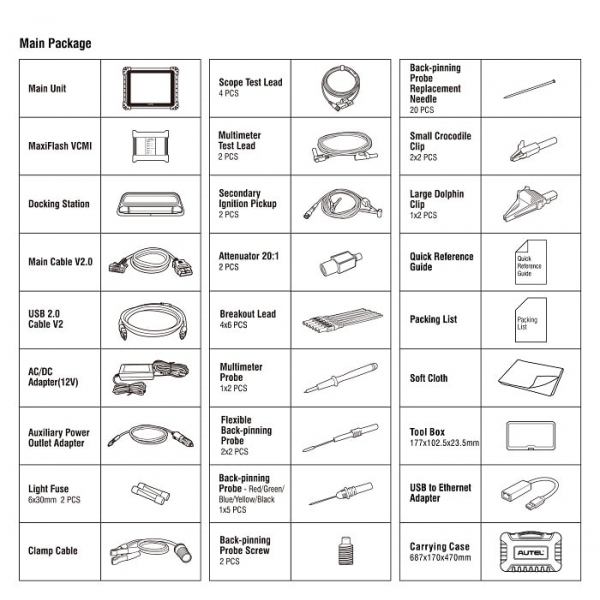

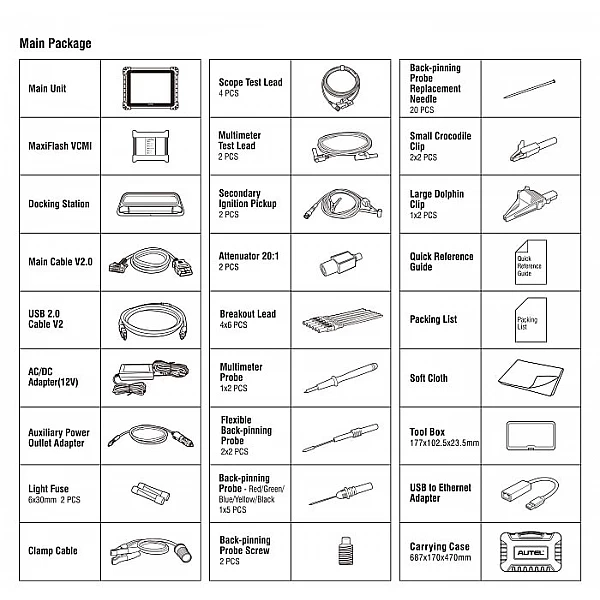

AUTEL MaxiSYS Ultra kit includes:

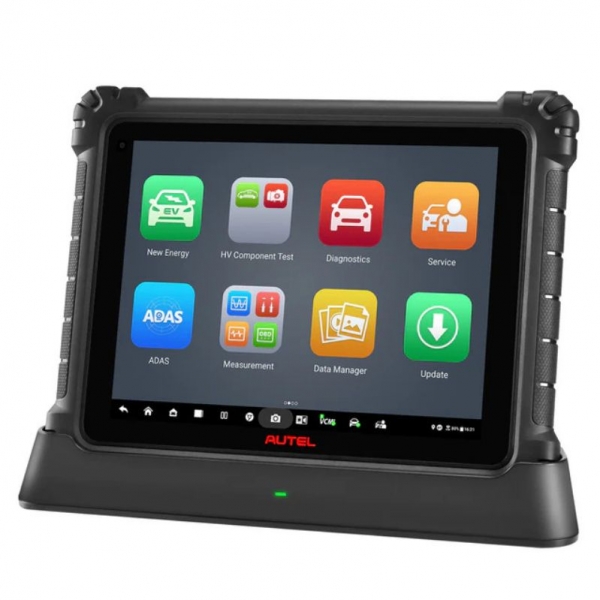

• AUTEL MaxiSYS Ultra diagnostic tablet;
• Charging dock;
• Main OBD II cable V2.0;
• AC/DC 12 V adapter;
• USB 2.0 cable V2;
• Vehicle charging cable;
• 2 fuses, 6 × 30 mm;
• 4 oscilloscope test leads;
• 2 multimeter test leads;
• 2 secondary ignition leads;
• 2 attenuators, 20:1;
• Probes, flexible probes, back-probe leads and pins;
• Small and large clamps;
• User manual;
• Accessory list;
• Tablet screen cleaning cloth;
• Tool case;
• Carrying case.

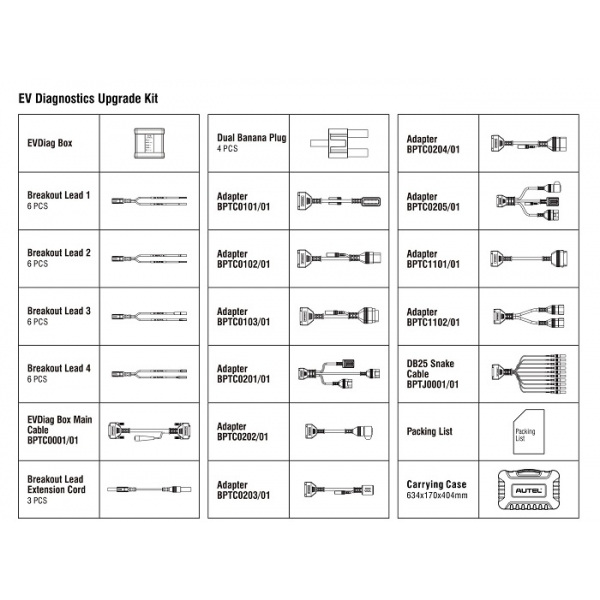

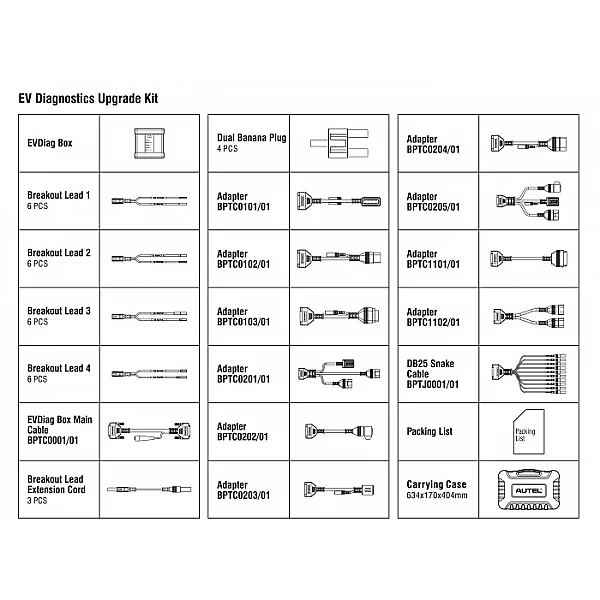

Additional EVDiag kit includes:

• EVDiag Box;
• USB adapter;
• AC/DC 12 V adapter;
• 2 spare fuses;
• Main OBD cable;
• Main EVDiag Box cable;
• Battery clamp cables;
• USB 2.0 V2 cable;
• Screen cleaning cloth;
• Adapter BPTC0101/01;
• Adapter BPTC0102/01;
• Adapter BPTC0103/01;
• Adapter BPTC0201/01;
• Adapter BPTC0202/01;
• Adapter BPTC0203/01;
• Adapter BPTC0204/01;
• Adapter BPTC0205/01;
• Adapter BPTC1101/01;
• Adapter BPTC1102/01;
• DB25 BPTJ0001/01 cable;
• 6 pcs. Lead 1 connectors;
• 6 pcs. Lead 2 connectors;
• 6 pcs. Lead 3 connectors;
• 6 pcs. Lead 4 connectors;
• 4 pcs. double plugs;
• User manual;
• Packing list;
• Vehicle power adapter;
• Carrying case.

Who is this device for?

• AUTEL MaxiSYS Ultra EV is suitable for professional automotive workshops, independent technicians and diagnostic specialists working with electric, hybrid and internal combustion engine vehicles. It is an ideal solution for services that want to stand out with an innovative approach and be ready for the most complex diagnostic cases.

Why buy from BalticDiag?

• BalticDiag is the only official AUTEL representative in Latvia.
• We offer original AUTEL equipment with wide vehicle coverage and software adapted for the European market.
• The device supports multiple languages, including English and Russian.
• The most popular AUTEL products are available in stock, ensuring fast delivery to customers in Latvia.
• Before purchasing, customers can visit us in person, see and test the available AUTEL diagnostic equipment.
• Our customers receive full warranty and post-warranty support.
• During repair, we provide a replacement device if the repair takes longer.

Is your service ready for the new standard in EV maintenance?

• Try AUTEL MaxiSYS Ultra EV today — contact us to receive an offer tailored to your service needs.
