FAM SILVER 6000 Spray Booth

FAM SILVER 6000 Spray Booth

Country of origin: Italy; warranty period: 24 months

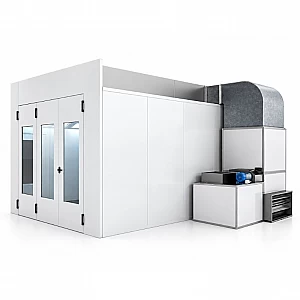

The FAM SILVER 6000 is a professional painting and drying booth designed for painting cars and other vehicles. The booth is designed to ensure controlled air circulation during painting, effective removal of particles generated during the painting process, and a supply of filtered air to the work area. In drying mode, the heating system maintains the proper conditions for drying painted surfaces. The insulated modular design, floor-mounted exhaust system, ceiling filtration, LED lighting, and electromechanical controls are tailored for professional, daily use.

Technical Specifications:

• Internal dimensions: 6000 × 4000 × 2800 mm
• Front door type: folding, manually operated, 3-panel
• Front door dimensions: 3,000 × 2,750 mm
• Number of door panes: 3
• Dimensions of a single pane: 615 × 1695 mm

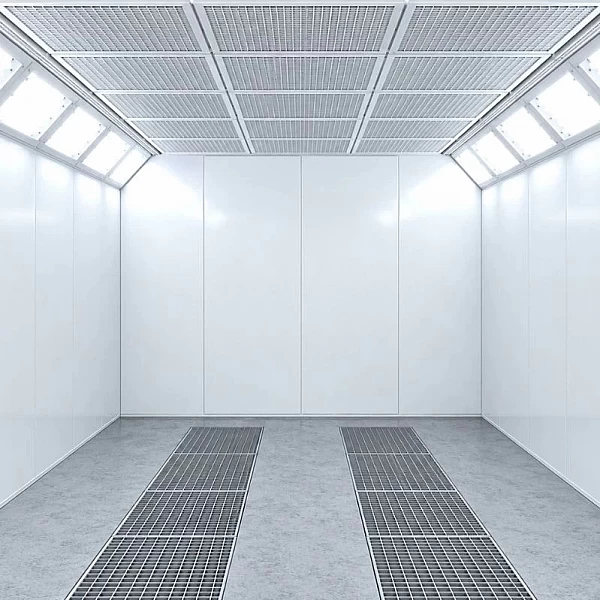

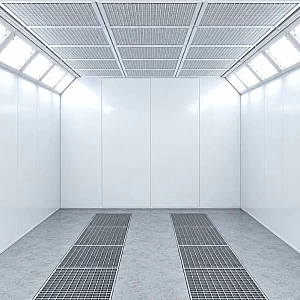

• Base: 2 rows of grates, 5 + 5, for a total of 10 grates
• Load capacity per grate: 680 kg per wheel
• Floor filtration: Paint Stop
• Modular panel type: sandwich-type
• Insulation: polyurethane foam
• Modular panel thickness: 50 mm
• Finish: pre-painted white sheet metal
• Filtration plenum height: 500 mm
• Plenum filtration: ceiling filters
• Number of overhead LED lights: 10, arranged in a 5 + 5 configuration
• Power of a single LED light fixture: 4 × 10 W
• Airflow: 18,000 m³/h
• Number of air supply units: 1
• Air supply unit dimensions: 1,150 × 1,200 × 2,250 mm
• Air supply motor: 1 × 5.5 kW
• Air supply filtration: white and blue primary filter
• Number of exhaust units: 1
• Air exhaust unit dimensions: 1150 × 1200 × 1000 mm
• Exhaust fan: 1 × 5.5 kW
• Motor power: 5.5 kW + 5.5 kW
• Drive system: belt drive
• Heating type: two-stage diesel burner
• Thermal output: 188 kW
• Number of burners: 1
• Burner manufacturer: RIELLO
• Painting temperature: 20 °C
• Drying temperature: 60 °C
• Temperature difference ΔT: 30 °C
• Supply voltage: 400 V, 3-phase + N, 50 Hz
• Required electrical power: 14 kW
• Rated current: 34 A
• Required electrical protection: circuit breaker and adjustable residual current device (RCD), minimum 0.3 B
• Control system: electromechanical control panel
• Noise level: less than 80 dB(A) at maximum ventilation
• Cooling and humidity control system: not included

The FAM SILVER 6000 is a professional solution for auto repair shops and paint shops that require a reliable, effectively ventilated, and heated painting and drying work area. Its insulated construction, floor-mounted exhaust system, ceiling filtration, efficient lighting, and powerful RIELLO heating system ensure stable working conditions and enable the efficient organization of daily painting tasks.
