Tire pressure sensor (TPMS) diagnostic equipment kit Launch MOT IV with TSGUN

Tire Pressure Sensor (TPMS) Diagnostic Equipment Kit - Launch MOT IV with TSGUN

Warranty period - 24 months

Why Choose MOT IV with TSGUN?

• Universal use with wide vehicle coverage
• Supports over 90 different manufacturers - from Europe to Asia and the Americas.
• Integrated TPMS diagnostics and programming
• With the TSGUN module, you can quickly program, read or copy tire pressure sensor IDs and monitor sensor data in real time.
• Next-generation control unit testing and component activation
• Extended control capabilities enable testing and activation of individual system components.
• Automatic VIN and system detection
• Quick vehicle recognition helps save time and improves diagnostic accuracy.
• Report generation and diagnostic history
• Create, save and print diagnostic reports - useful for both customer communication and service documentation.
• All-in-one package
• Includes the MOT IV device, TSGUN unit and up to 20 TPMS sensors - aluminium and rubber type sensors, ready to use from the first day.

Features:

• Automatic vehicle VIN scanning
• Automatic full-system scan
• Trouble code reading with descriptions
• Trouble code clearing
• Real-time data reading and display
• Numeric or graphical data visualization
• Component activation and test functions
• 31 special service functions
• Integrated diagnostic help feature
• Diagnostic task saving
• Customizable and printable diagnostic reports
• Special TPMS sensor programming and scanning functions

Technical Specifications:

• Processor: 2.0 GHz quad-core
• Operating system: Android 10.0
• RAM: 4 GB
• Internal storage: 64 GB
• Battery: 47.88 Wh, 7.6 V, 6300 mAh
• Display: 8", 1280 x 800
• Camera: 5 megapixel front camera and 8 megapixel rear camera
• Wi-Fi: 2.4 GHz / 5 GHz
• Ports: 1 x Type A and 1 x Type C connector
• Dimensions: 274 x 190.5 x 40.5 mm
• New-generation VCI - DBSCar VII
• Fast vehicle diagnostics via Bluetooth connection
• More stable connection with DBSCar VII
• Supports multiple protocols: CAN FD / CAN / SCAN / FCAN, DoIP, additional cable required, KWP / L-line, J1850 PWM / VPW, Chrysler CCD and others.

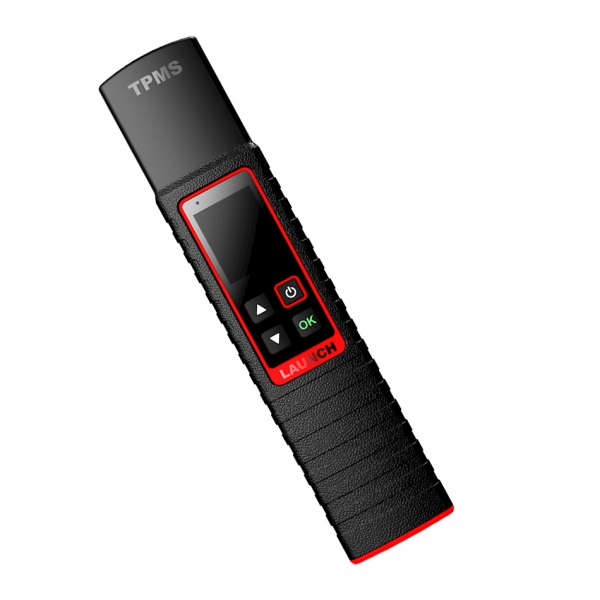

Launch TSGUN TPMS Sensor Reader

Features:

• TPMS function: 315 / 433 MHz
• Teach-In process via OBD interface
• ID generation - automatic or manual
• Supports up to 98% of car models
• Reads tire pressure data
• Tire pressure sensor ID reading, copying and programming
• Detailed function overview
• Supports TPMS sensor reprogramming

Technical Specifications:

• Display: 1.77-inch, 168 x 128
• DC input voltage: 5 V
• Battery: 3000 mAh lithium battery
• Operating temperature: -10 to 50 °C
• Operating current: ≤1 A
• Dimensions: 252 x 54 x 30 mm
• Weight: 450 g
• Interface: Bluetooth

Package Contents:

• CRP MOT IV diagnostic device
• Carrying case
• DBSCar VII VCI module
• DoIP cable
• USB cable from Type A to Type C
• VCI connection cable
• Charger
• TSGUN tire pressure sensor (TPMS) programming device

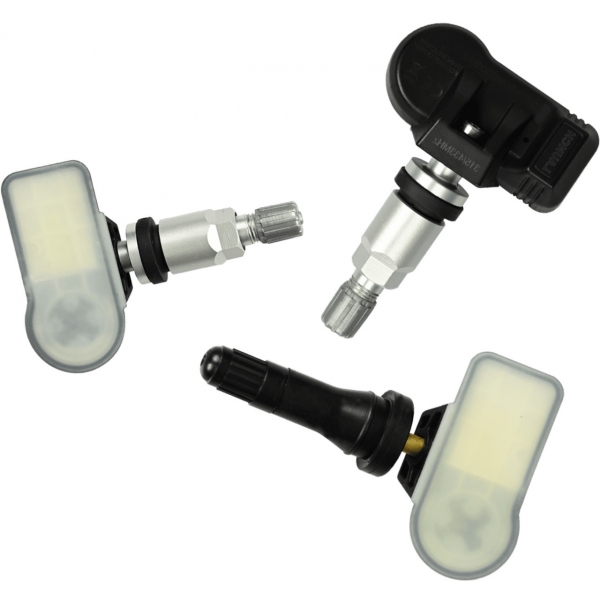

• Grey aluminium tire pressure sensors (TPMS) - 10 pcs.
• Black rubber tire pressure sensors (TPMS) - 10 pcs.

Who Is This Device For?

• Launch MOT IV with TSGUN is a solution for auto repair shops, independent diagnostic technicians and service specialists who need one complete kit for full vehicle diagnostics and TPMS system service. It is suitable for everyday use and also as an additional professional tool.

See also other LAUNCH diagnostic scanners, TPMS diagnostics and tire pressure sensors, car diagnostic equipment and wheel and tire repair equipment available from BalticDiag.

Why Buy from Us?

• We are the official LAUNCH representative in Latvia.
• Only our original devices support both Russian and English languages simultaneously.
• Our original equipment comes with a wide and high-quality diagnostic database.
• Only original software is developed for the European region.
• Do not risk using Chinese copies - their functionality may be limited, and the devices may become blocked.
• We provide full warranty and post-warranty support.
• In case of failure, we provide a replacement device if repairs take longer than expected.
• Fast delivery in Latvia - many products are available in stock.
• You can test the device before purchase.

Looking for a universal solution for TPMS and vehicle diagnostics?

• Launch MOT IV with TSGUN is a diagnostic kit that includes everything needed to work without compromise. Contact us today for a custom offer!
