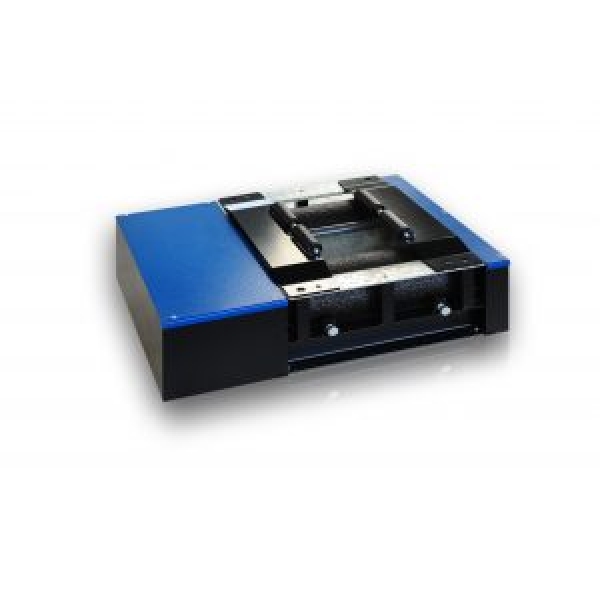

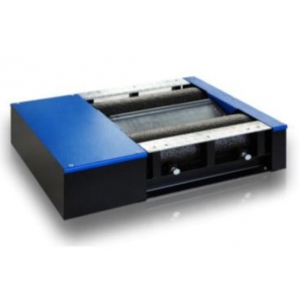

Unimetal RHO-6 brake test bench for cars up to 3.5 tons
Installation is available upon request!
The price is indicated for the stand with frames for concreting and a wireless control unit.
- SKU: BD04030
8,199.00 €
Send Message
Description
Brake Testing Stand up to 3.5t UNIMETAL RHO-6
Country of origin: Poland, warranty period – 24 months
The Unimetal RHO-6 is a modern roller brake testing stand designed for checking the brake systems of passenger cars, light commercial vehicles, motorcycles, trailers, and 4x4 drive vehicles. The unit can operate as a standalone testing station or be integrated into the comprehensive UNILINE QUANTUM 2000 testing line. It features a microprocessor-based control system and uses UNILINE QUANTUM software, which allows for accurate, user-friendly testing and result analysis. The robust construction ensures long-term durability, and the stand is suitable for low-clearance vehicles. It supports multilingual operation and can be installed in both pit and non-pit configurations.
Features:
- Suitable for passenger cars, motorcycles, light commercial vehicles, trailers, and 4x4 vehicles
- Can operate independently or as part of a full testing line
- Available in pit and non-pit versions
- Corrosion-resistant finish – galvanized, primed, and powder-coated
- Supplied with a mounting frame
- Suitable for low-clearance vehicles
- 4x4 testing functionality available upon request
- UNILINE QUANTUM software with advanced analysis capabilities
Technical Specifications:
- Maximum axle load: 2 tons
- Brake force measurement range: 0–6 kN
- Track width: 900–2140 mm
- Supported wheel diameters: 10–28 inches
- Motor power: 2 x 4 kW
- Electromagnetic brake with automatic motors
- Coefficient of friction (dry/wet tires): 0.9 / 0.7
- Test speed: 5 km/h
- Power supply: 400 V / three-phase
Standard Equipment:
- Control unit (without computer)
- Wireless remote control
- Mounting frame for concrete installation
Optional Equipment (upon request):
- Mounting frame for in-ground installation
- Automatic 4x4 transmission detection and 4WD testing functionality
- Roller covers for motorcycle testing
- Weighing system for RHO stand
- Electromagnetic brake (for RHO model)
- Plates between rollers for in-ground RHO stands
- Roller covers for RHO stands
- Hydraulic axle load simulator (for in-ground versions only)
- Wireless pressure gauge
- Brake pedal pressure sensor (0–1000 N)
- Parking brake pressure sensor
- Pneumatic wheel clamps
