Variable-speed oil-lubricated rotary screw air compressor L07RS CompAir

Variable-speed oil-lubricated rotary screw air compressor L07RS CompAir

Country of origin: Germany, warranty period – 24 months

Airends carry a free warranty of 10 years or 44,000 hours

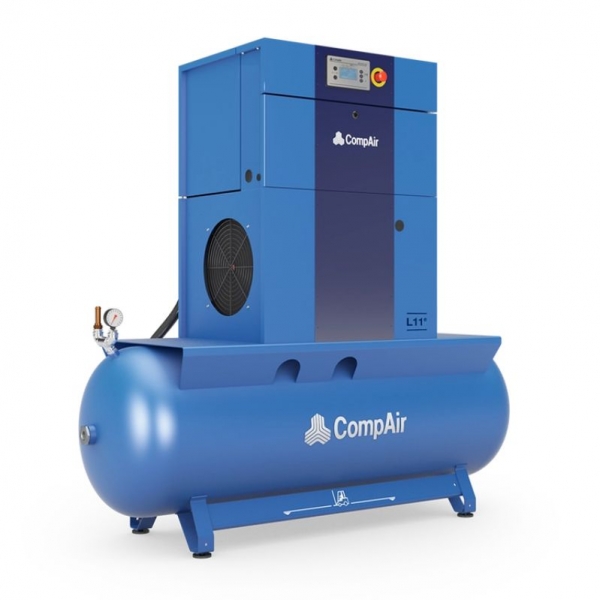

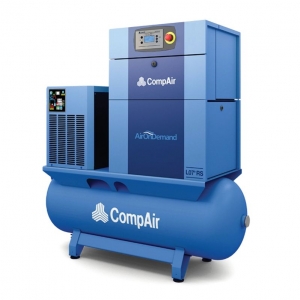

CompAir L07RS is a compact, quiet, and economical 7.5 kW screw compressor with a frequency inverter that automatically matches output to the actual air demand. The integrated screw block runs at lower speeds, reducing energy consumption and increasing service life. Base, receiver-mounted, and AIRSTATION versions are available with an integrated refrigerated dryer and 270 or 500 l AD 2000 receivers. The model meets German engineering quality standards and supports Iconn remote monitoring and the SMARTair master compressor control system.

Functions:

• Variable-speed (VSD) drive – precisely matches air demand and reduces energy losses
• Monoblock screw airend with integrated oil separator, filter, and thermostatic valve – fewer hoses, higher reliability
• Combined air/oil cooler with bypass – fast warm-up, stable oil temperature, and low discharge air temperature
• High-efficiency IE3 electric motor
• Automatic drive belt tensioning – longer belt service life
• Factory-filled lubricant – oil change interval up to 4000 h
• Delcos Pro SE controller with 2.8" display: pressure and air/oil temperature readings, total and load hours, maintenance indicators, fault log, timer-controlled start/stop, remote start/stop, automatic restart after power loss, second pressure setting
• Connectivity: RS485 (Modbus RTU), Micro-SD data logging, integrated BLS and Web-Server Light; optional Ethernet module
• Iconn remote monitoring and SMARTair master – multi-compressor sequencing, pressure stability, and energy savings
• Low noise level – can be installed close to the point of use

Technical specifications:

• Motor power: 7.5 kW
• Noise level (at 70% load): 67 dB(A)

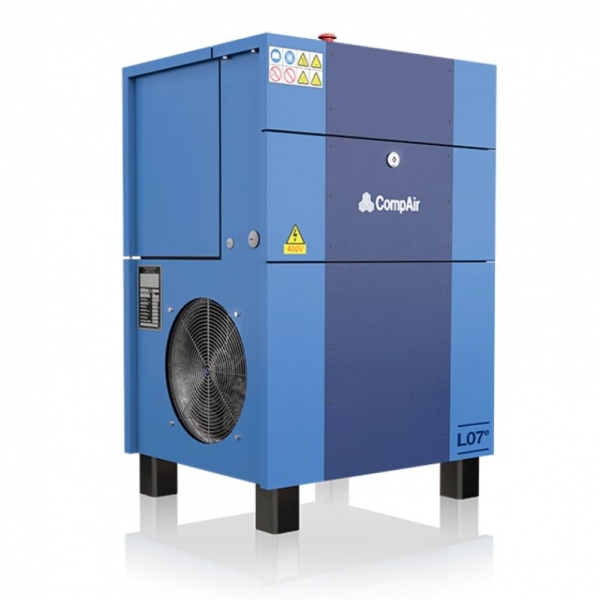

• Base unit: dimensions 667 x 630 x 1050 mm; weight 225 kg
• AIRSTATION versions (L07/L07RS): with 270 l receiver – 1540 x 676 x 1550 mm; 340–360 kg; with 500 l receiver – 1885 x 700 x 1643 mm; 405–425 kg; air outlet RP 3/4"
• Oil change interval: up to 4000 h
• Ambient temperature: reliable operation up to 45 °C

Nominal pressure and air delivery (FAD):

• 7 bar: 450–1130 l/min
• 8 bar: 460–980 l/min
• 10 bar: 430–950 l/min
• 13 bar: 450–770 l/min

Choose CompAir L07RS – a smart and efficient VSD screw compressor that will reduce energy costs, ensure a stable compressed air supply, and serve your company reliably for many years.
