160 Ton Manually Movable Portal Straightening Press with Worktable PPTL-160 D=1500 RHTC

Country of origin: Netherlands, warranty period – 24 months

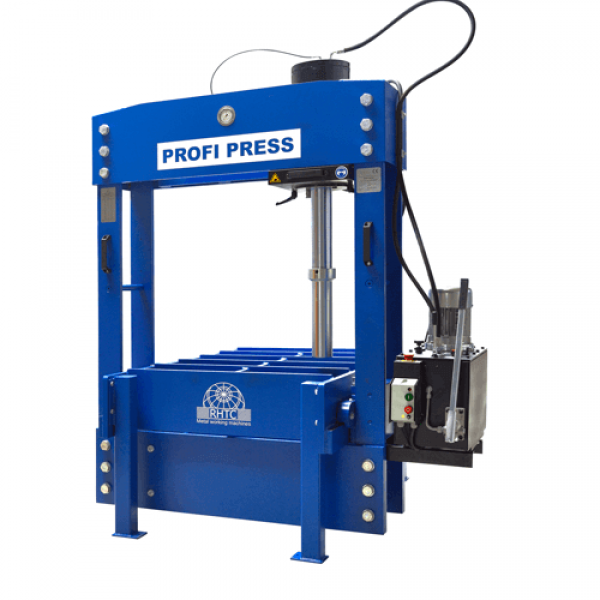

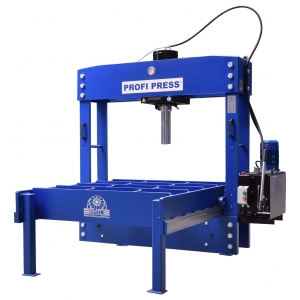

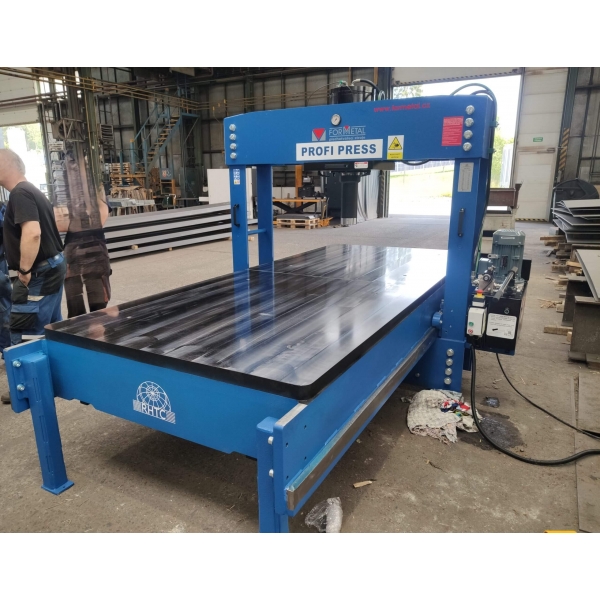

The 160-ton portal straightening press PPTL-160 D=1500 is a portal-type press with a worktable and a mechanically movable press frame mounted on it, designed for forming and straightening large and heavy components. The manually movable portal and cylinder allow easy access to any point on the surface to be pressed. The construction is suitable for crane-assisted operations – the material can be placed directly on the table, and the portal can be moved over it before pressing. The press features an extra-wide working area (1500 mm), making it ideal for processing particularly large workpieces. The high-quality hydraulic system includes pressure regulation, two-speed operation, a directional control valve for piston movement, and a hand pump for precision work. If required, this press can be customized to individual needs: larger table size, extended piston stroke, or increased vertical clearance between the table and the piston.

Features:

Extra-wide working area (1500 mm)

Movable portal (mechanically movable press mounted on the worktable)

Movable cylinder

Cylinder extension to reach the table

Integrated pressure gauge

Pressure regulation

Hydraulic system with two speeds

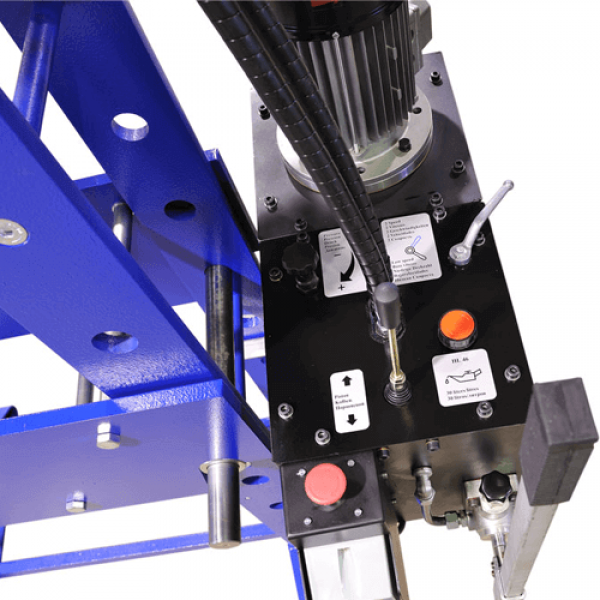

Control via joystick / directional control valve for piston movement

Hand pump for precise pressing

Technical Specifications:

Pressing force: 1570 kN

Motor power: 3 kW

Working speed: 2.40 mm/s

Approaching speed: 7.48 mm/s

Return speed: 9.35 mm/s

Maximum pressure: 255 bar

Piston stroke: 400 mm

Table dimensions (length × width): 1740 × 1396 mm

Working width: 1500 mm

Vertical clearance: 700 mm

Working height: 760 mm

Manually operated cylinder and frame

Total height: 2104 mm

Total length: 1740 mm

Total width: 2125 mm

Weight: 2650 kg
